WAVE

FD440 MAX

Name: WAVE FD440 MAX
Brand: WAVE
SKU: fd440-max
Price: 49500 EUR
Availability: InStock

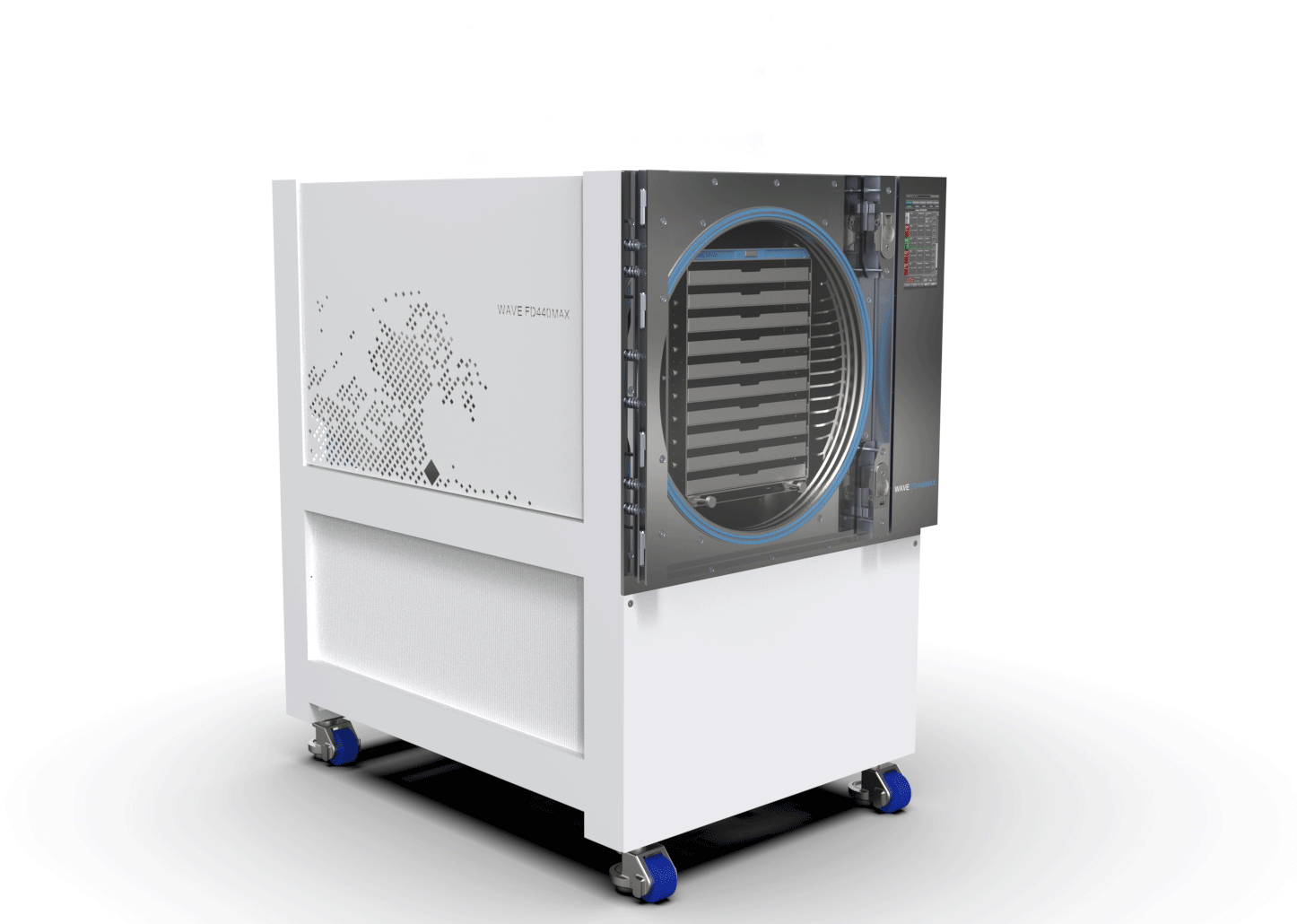

Højkapacitets frosttørrer

FRA

49500€

Ekstraktionskapacitet

100 Kg

Læssevolumen

220 liters

Energi

3.0 KW/h

FD440 MAX leverer maksimal ekstraktionskapacitet i kompakt format.

FÅ TILBUD Download beskrivelse

NOGLEFUNKTIONER

Hver hylde individuelt temperaturstyret

Maksimal kapacitet i kompakt design

IoT-fjernovervågning

Fjernovervågning via WAVE IoT SIM-netværk

24t WhatsApp-support

ABB sikkerhedsafbrydere

Verdensomspændende service

Alle metalhylder

Konfiguration

KVALITET

FD440 MAX bruger industriel vakuumteknologi og har et ekstruderet vakuumrør med 7 mm tykkelse. Lukkerhusene fås i anodiseret aluminium eller rustfrit stål. Enheden fremstilles på vores fabrik i Wien.

SERVICE

Wave har hovedkontor i Østrig. Vi leverer til og supporterer kunder i hele Europa. FD440 MAX er udstyret med fjernvedligeholdelse. Reservedele er altid tilgængelige. Vi har også et servicecenter i USA, som servicerer vores amerikanske kunder.

MODULARITET

FD440 MAX har et modulært design og kan drives med 1–12 rum, som kan monteres og styres individuelt. Enhederne kan stables og drives som en klynge. Yderligere muligheder vedrørende overfladebehandling er også tilgængelige.

OMKOSTNINGER

Vores mål er at tilbyde det bedste pris-ydelses-forhold for frysetørrere. FD440 MAX er tilgængelig fra 49.500,00 EUR netto.

KONFIGURATOR

Shipping destination

Select your region to include estimated shipping in the total. Final cost confirmed on the formal offer.

WAVE ships worldwide, excluding sanctioned regions (Russia, Iran, North Korea, Syria, Cuba).

FD440 MAX / Vejledende pris

EUR 49,500

Dit konfigurationsudkast

Dette dokument opdateres live, når du markerer muligheder ovenfor og udfylder dine oplysninger til venstre. Udskriv det til dine arkiver eller anmod om et formelt tilbud.

Indicative draft — not a binding offer. Prices, lead time, shipping and VAT will be confirmed in the formal proposal you receive from WAVE after submitting the request form.

Wave Trockensysteme GmbH - Stiegengasse 11 - 1060 Wien

Your company name and delivery address will appear here after you fill the request form.

DocumentDRAFT

DateJul 17, 2026

Your contactWAVE Sales Team

Configuration Draft — FD440 MAX

Terms of payment immidiately after receipt of invoice.

Item	Description	Quantity	Unit price	Total price
1.	FD440 MAX 1 års garanti	1.00 piece	49,500.00 EUR	49,500.00 EUR
			Total net	49,500.00 EUR
			VAT 0%	0.00 EUR
			Total gross	49,500.00 EUR

The offer is valid for 14 days.

*Delivery date: Bekræftet i det formelle tilbud

Our general terms and conditions apply (http://en.wave.cc/generaltermsandconditions)

The property remains in the possession of the seller until full payment has been made.

Customer is responsible for applicable use tax.

Incoterms 2020: DAP

Worldwide shipping available (excluding sanctioned regions such as Russia, Iran, North Korea, Syria, Cuba).

*Due to Supply-Chain-Disruptions the delivery date might change.

Export delivery, tax-exempt according to § 6 para. 1 no. 1 UstG.

Wave Trockensysteme GmbH

Stiegengasse 11

1060 Wien

Austria

Tel. +43 69915852848

Email [email protected]

Web www.wave.cc

District Court Handelsgericht Wien

FN-Nr. FN 544278 i

VAT.-ID ATU76131758

Tax-No. ATU76131758

CEO Michael Marcovici

Bank Erste Bank

Account no. AT87 2011 1843 3989 4800

BIC GIBAATWWXXX

1/1

SPECIFIKATIONER

Max Ice Extraction

100 Liters per cycle

Drawer Loading Volume

224 Liters

Tray Size

600 x 400 x 20 mm (2 trays per drawer)

Total Tray Area (8 shelves)

4.85 m²

Energy Consumption

3.0 kW/h average

Chamber Type

Extruded Aluminium Tube, 7 mm wall

Chamber Diameter

720 mm

Chamber Form

Tube

Chamber Finish

Hard Anodized 25µ inside and outside

Number of Shelves

4 to 20 (8 standard)

Shelf Spacing

50 mm (8) / 64 mm (6) / 32 mm (12)

Shelf Material

Anodized Aluminium or Stainless Steel

Shelf Temperature Range

-55°C to +80°C

Temperature Sensors

PT100 Class A, ± 1°C precision

Vacuum Pump

Two-Stage Rotary Vane or Scroll Pump (20m³+)

Pump Down Time

< 30 minutes to 0.1 mbar

Final Vacuum

< 0.07 mbar (10 mTorr max)

Leak Rate

10⁻⁴ mTorr/sec

Vacuum Sensor

Pirani

Heating Power

Up to 500 Watt per tray

Heating System

Electrical Heating Mat

Max Heating Mat Temperature

+80°C

Heating Time (-30 to +20°C)

3 minutes (empty)

Cooldown (+20 to -30°C unloaded)

20 minutes

Defrost Time

50 minutes (ice removable earlier)

Refrigeration Compressors

1 x Embraco Piston Type

Refrigeration Power

6 kW

Refrigerant

R449A

Min Cooling Temperature

-60°C

Door Material

50 mm Acrylic

Door Gasket

Silicone Rubber

Door Opening Angle

170° (hinge on left)

Door Lock

Manual, Mechanical Closing

Control System

Siemens Simatic PLC

Monitor

Kinco HD Color Touchscreen

Connectivity

CAT6 Ethernet / IoT WAVE Network

Dimensions (L x W x H)

110 x 140 x 170 cm

Total Weight

650 Kg

Noise Level

< 65 dB at 1 m

Max Ambient Temperature

< 23°C

Electricity EU Version

400V / 3 / N

Electricity US Version

240V / 1 / N (120V / 2 / N)

Max Electrical Load

11 kW

Lead Time, Spare Parts & Industry Standards

Lead Time

~ 2 months

Approximately 2 months from order confirmation to delivery. Express and super-express production slots available at an extra cost.

Spare Parts

In stock / ~ 2 weeks

All critical components are permanently in stock and ship same-day. Less common parts are procured within roughly 2 weeks.

Standard Industrial Components

We exclusively use standard industrial components — Siemens (PLC), ABB (safety), Embraco (compressors), Phoenix Contact (controls), Danfoss (refrigeration). No exotic special parts. Repair and replacement available worldwide.
