Leybold · Sogevac SV
Leybold Sogevac SV40B — rotary vane, 40 m³/h
Sākotnējais nosaukums: Leybold Sogevac SV40B 960314 Vacuum Pump with LS Leroy Somer Motor
Tirgus mediāna (pārdotie): 1 116 €, darījumi šajā sērijā: 79
📍 Amerikas Savienotās Valstis
🟢 Labi piemērots
Excellent match for FD440; well-priced, typical specs, externally sound.
Stāvoklis pēc fotoattēliem

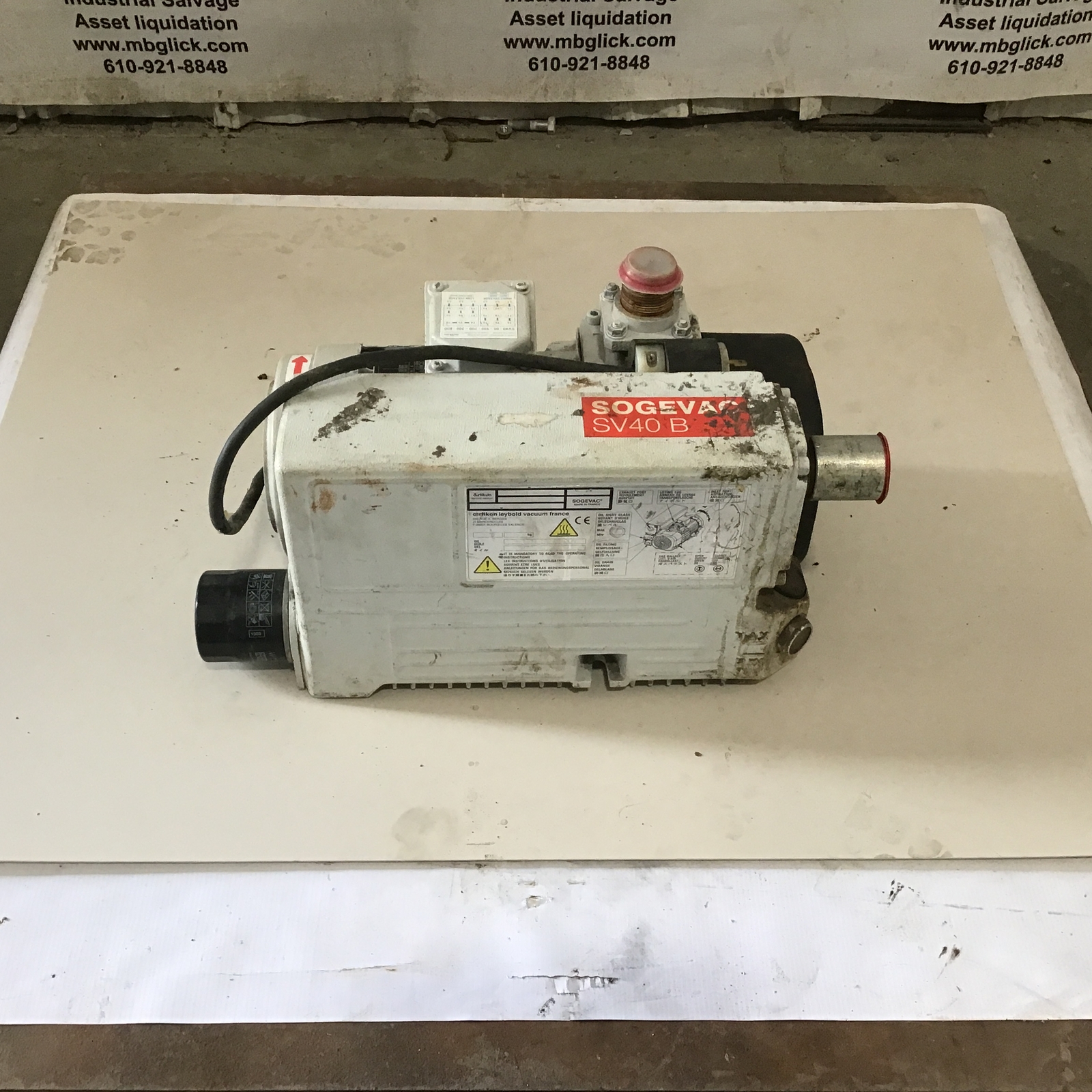

Exterior clean, minor dust/dirt on housing and motor. Oil level visible in sight glass. No visible leaks or damage. Mounted on frame with motor.
Iespējamā atjaunošana / papildu daļas
- Oil change and filter service (~€80–120)
- Gas-ballast service inspection (~€60)
- Soft-starter for motor (~€280, optional)
WAVE MI novērtējums tikai pēc fotoattēliem un tehniskajiem datiem — neaizstāj mūsu fizisko pārbaudi pirms pirkuma.
Tehniskie dati
- Tips
- Eļļas rotācijas lāpstiņu sūknis
- Sūknēšanas ātrums
- ~40 m³/h
- Ūdens tvaiku tolerance
- ~140 g/h
- Galīgais vakuums
- ≤ 0.1 mbar
- Izlaiduma gads
- 2010 (pēc datu plāksnītes)
- Avots
- eBay
- Sludinājuma nr.
- eBay #146637343414
- Pēdējoreiz pārbaudīts
- 2026. g. 20. nov.
Der WAVE iekārtām: FD440
Cenu vēsture— Leybold Sogevac SV
Mediāna 1 345 € · novērojumi: 4487 · 70 €–46 500 €
Pēdējie pārdošanas darījumi (Leybold Sogevac SV)
- 904 €2026. g. 2. okt.Leybold SOGEVAC SV 16 B 960160 Rotary Vacuum Pump Blades SV16B 0.55KW Used
- 3 720 €2026. g. 22. sept.Leybold SOGEVAC NEO D16 970103V4050 Vacuum Pump 115V 1PH New Open Box
- 837 €2026. g. 22. sept.Leybold Sogevac SV65 BI FC Vacuum Pump200-240V 50/60HZ 1.5kW 12A
- 1 859 €2026. g. 22. sept.Gads 20202020 0.101 mBar OERLIKON LEYBOLD SOGEVAC ROTARY VANE VACUUM PUMP SV 28 BI SV28BI
- 553 €2026. g. 22. sept.Leybold SOGEVAC SV65 BIFC Rotary Vane Vacuum Pump
- 2 456 €2026. g. 22. sept.LEYBOLD SOGEVAC SV 40 BIFC Rotary Vane Vacuum Pump 1000mbar 180-264V
- 897 €2026. g. 22. sept.Gads 2023Leybold Sogevac SV40-65 BIFC Rotary Vane Vacuum Pump | 2023 | Ships FREIGHT
- 1 674 €2026. g. 22. sept.Leybold SV65BIFC 960465V013002 Sogevac Pump SV 40/65 BIFC (lot of 3) *working
- 1 646 €2026. g. 22. sept.Leybold SV40BI 960363V01 SV 40/65 BIFC Vacuum Pump
- 605 €2026. g. 22. sept.Leybold Sogevac SV40 BI Rotory Vane Vacuum Pump #17582
- 2 651 €2026. g. 22. sept.Gads 20232023 Leybold Sogevac SV 120 B Single Stage Rotary Vane Vacuum Pump
- 698 €2026. g. 22. sept.Leybold Sogevac SV40BI Rotary Vane Vacuum Pump SV 40/65 BIFC
Avots: eBay noslēgtie darījumi (Apify apkopojums). Gads noteikts pēc sludinājuma nosaukuma, ja tas tur norādīts.

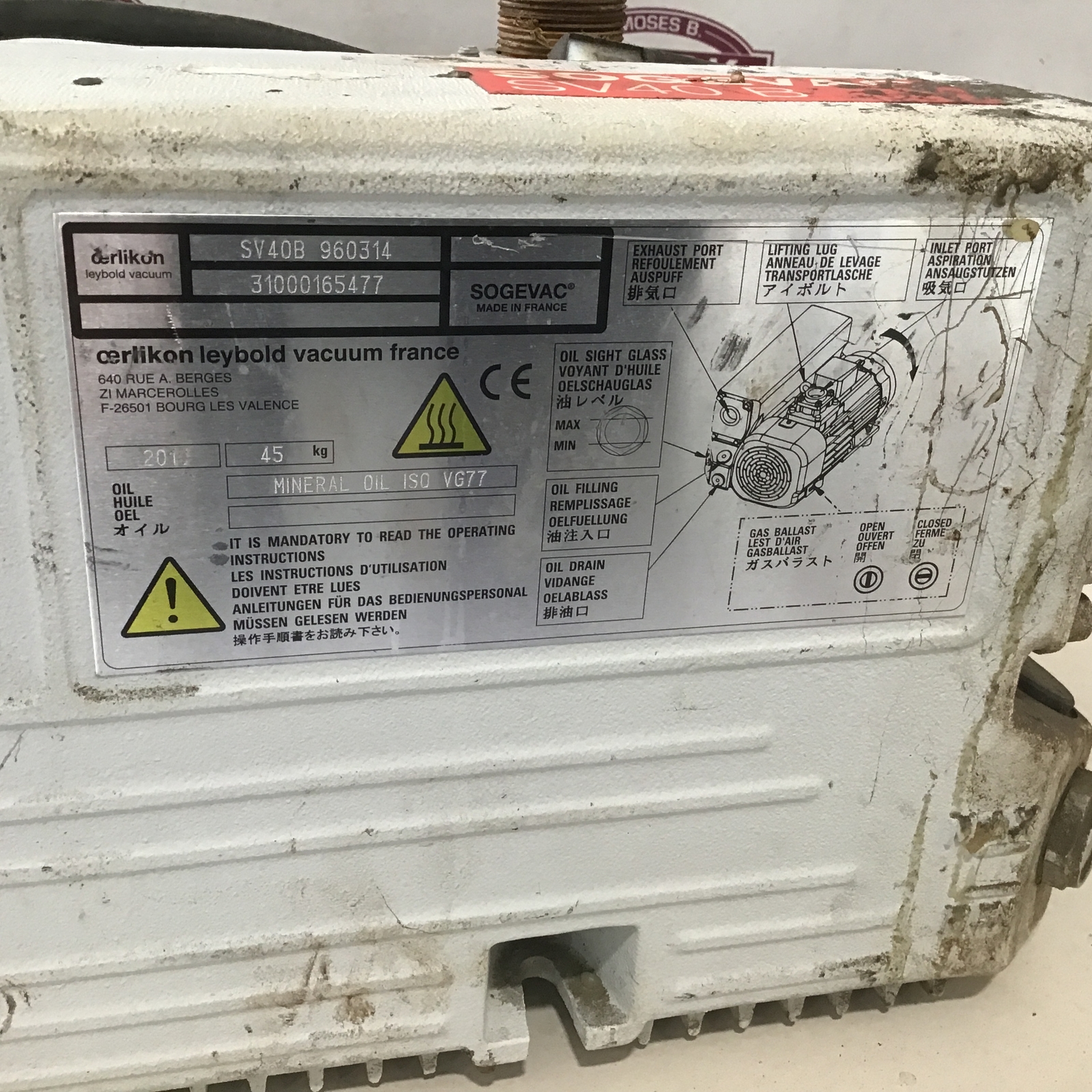

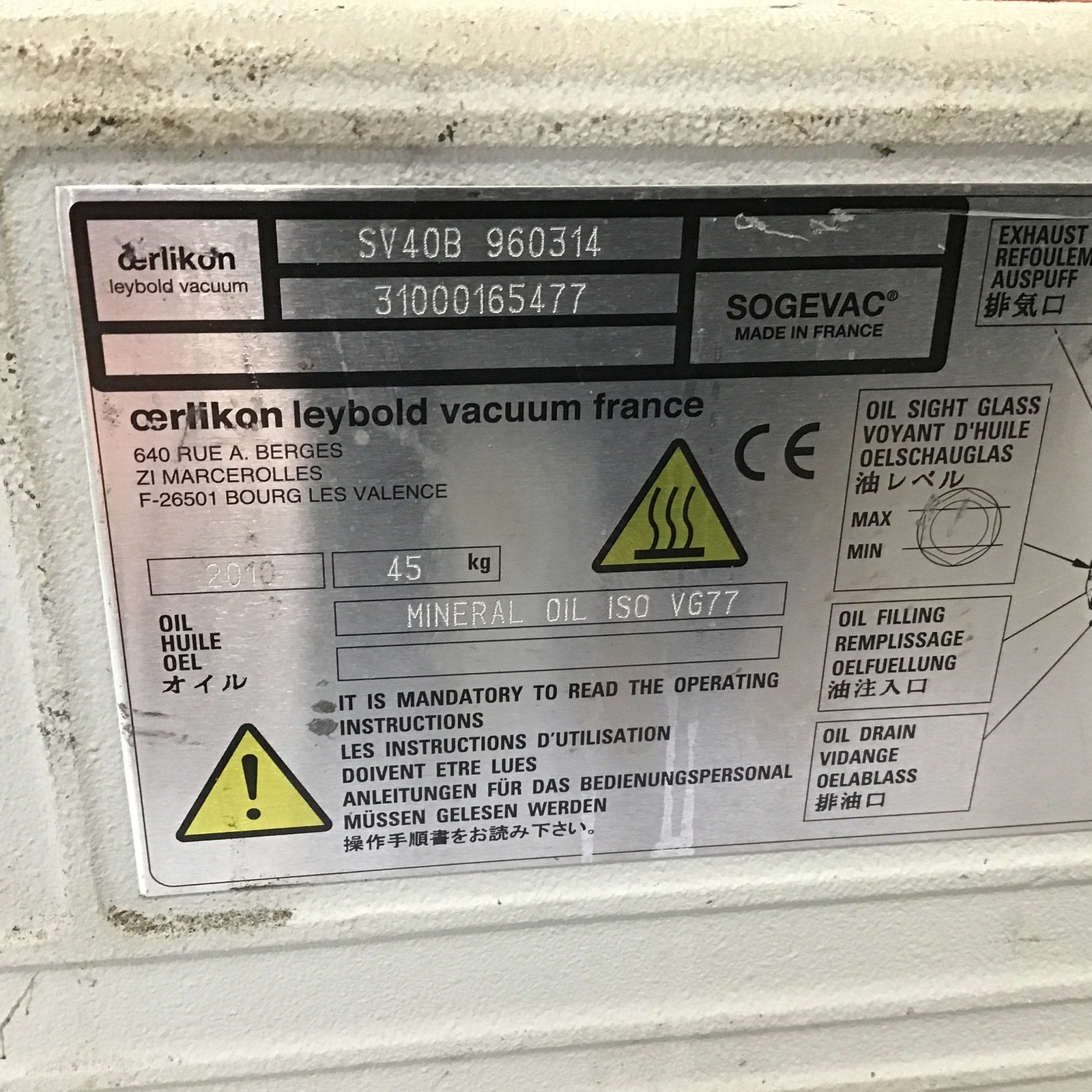

Datu plāksnīte (MI nolasījums)
- Precīzs modelis
- SV40B 960314
- Sērijas numurs
- 31000165477
- Gads (plāksnīte)
- 2010
- Manufacturer
- Cérikon Leybold Vacuum France
- Address
- 640 Rue A. Berges, ZI Marcerolles, F-26501 Bourg-lès-Valence
- Model
- SV40B 960314
- Serial Number
- 31000165477
- Sogevac Brand
- Made in France
- Year
- 2010
- Weight
- 45 kg
- Oil Type
- Mineral Oil ISO VG77
- Oil Sight Glass
- MAX/MIN marked
- Exhaust Port
- Refoulement/Auspuff marked
- Lifting Lug
- Anneau de levage/Transportlasche
- Inlet Port
- Aspiration/Ansaugöffnung marked
- Oil Filling
- Remplissage/Oelfuellung marked
- Oil Drain
- Vidange/Oelablass marked
- Approvals
- CE
- Safety Warning
- Mandatory to read operating instructions
Automātiski nolasīts no viena sludinājuma fotoattēla. Pirms pirkuma pārbaudiet uz pašas iekārtas.
Kam šai sērijai pievērst uzmanību
Vienpakāpes, ar eļļu blīvēts, ar gāzes balastu. Lēta ieeja Leybold pasaulē. Nedaudz augstāks galīgais spiediens nekā divpakāpju sūknim, tāpēc žāvēšanas beigu posms ir nedaudz ilgāks.
