WAVE

FD440

Name: WAVE FD440
Brand: WAVE
SKU: wave-fd440-c
Price: 36900 EUR
Availability: InStock

Komercilais liofilizators

SĀKUMA CENA

36900€

$37,500

Ekstrakcijas jauda

60 Kg

Ielādes tilpums

192 liters

Enerģija

2.5 KW/h

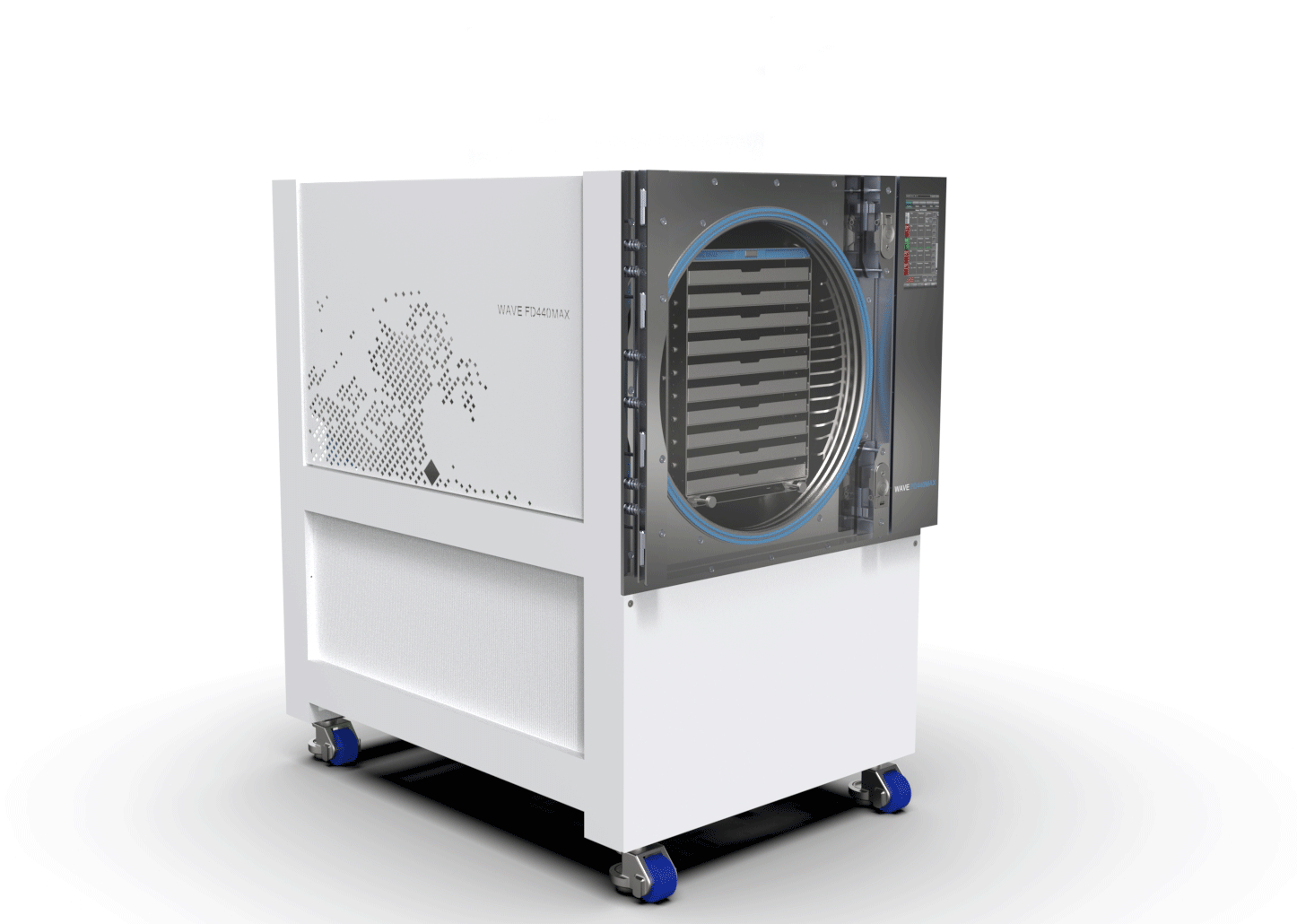

FD440 ir WAVE klāsta komercilais darbzīrgis. Ar Siemens Simatic PLC un 8 nodalījumiem standartā.

PIEPRASĪT PIEDĀVĀJUMU Lejupielādēt aprakstu

GALVENĀS FUNKCIJAS

Katrs plaukts ar individuālu temperatūras kontroli

Liela apjoma komerciāla ražošana

IoT attālināta uzraudzība caur WAVE tīklu

Attālināta uzraudzība un palīdzība caur WAVE IoT SIM tīklu

24h WhatsApp atbalsts

ABB drošības slēdži katram plauktam

Vispassaules serviss uz vietas

Visi metāla plaukti

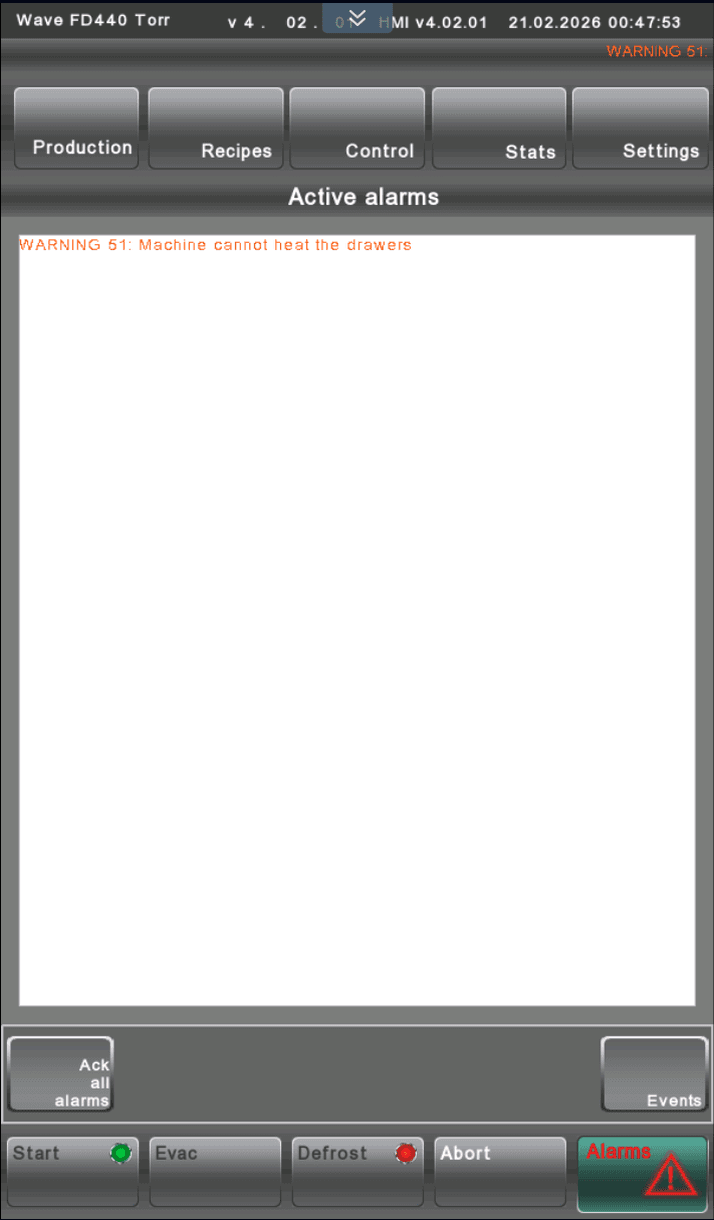

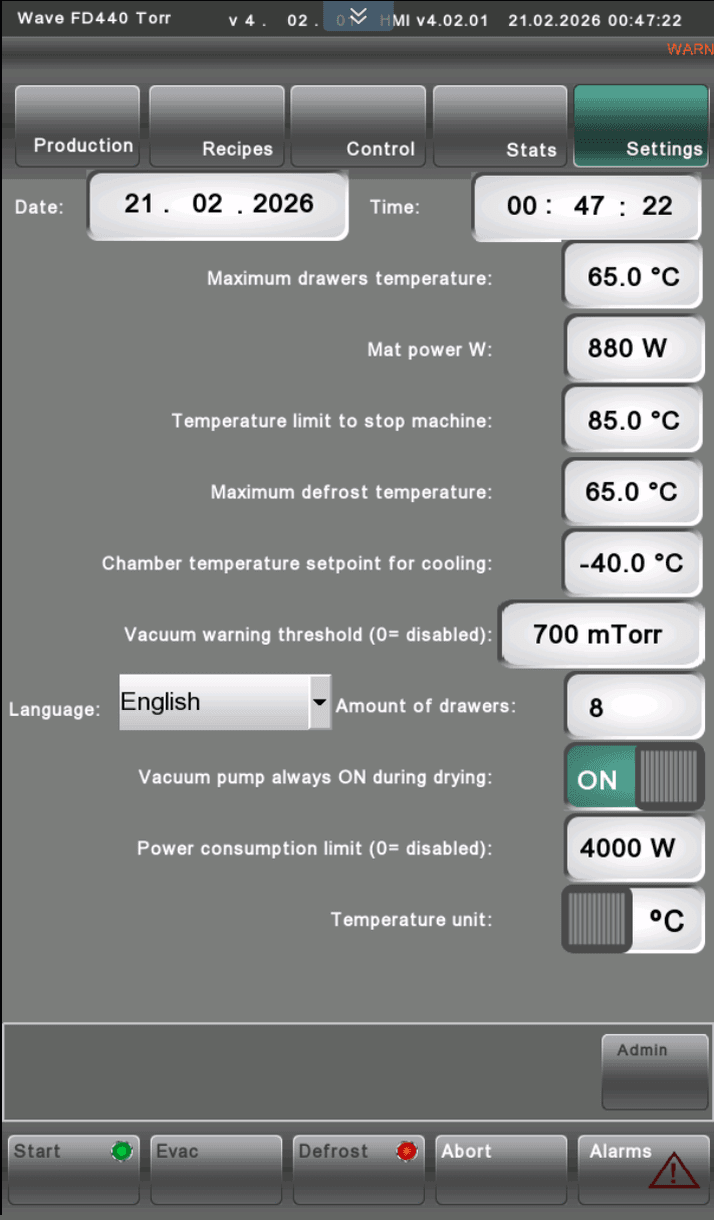

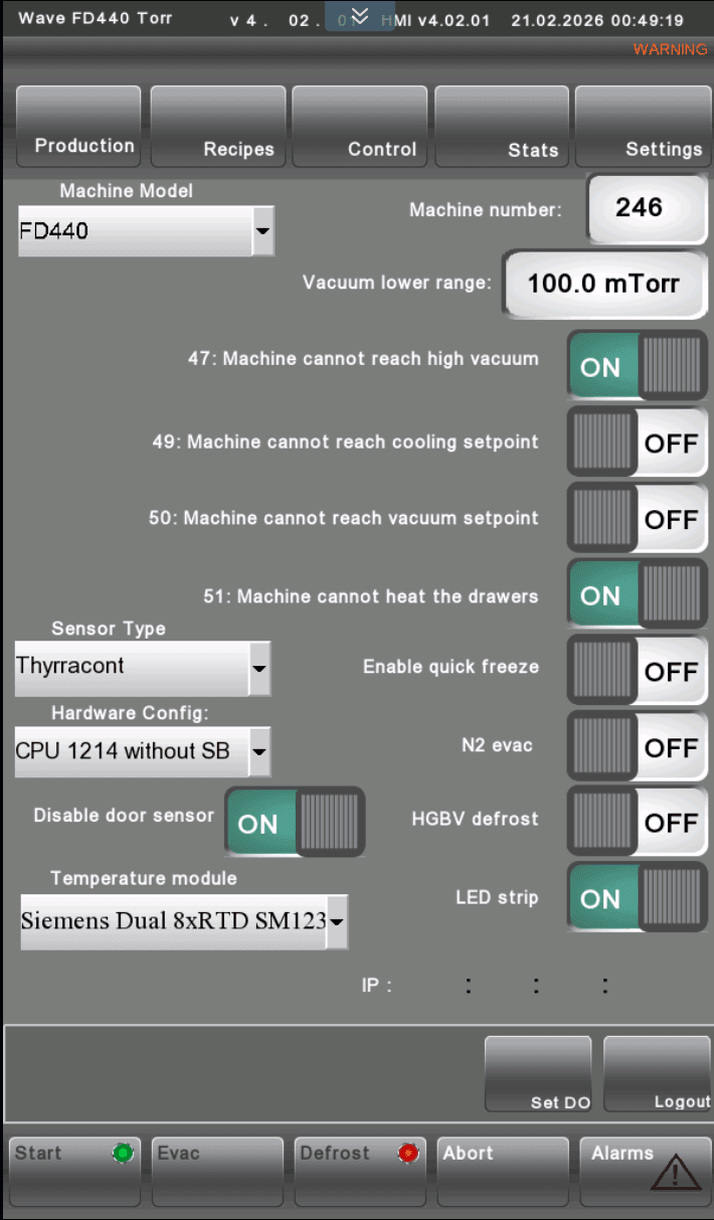

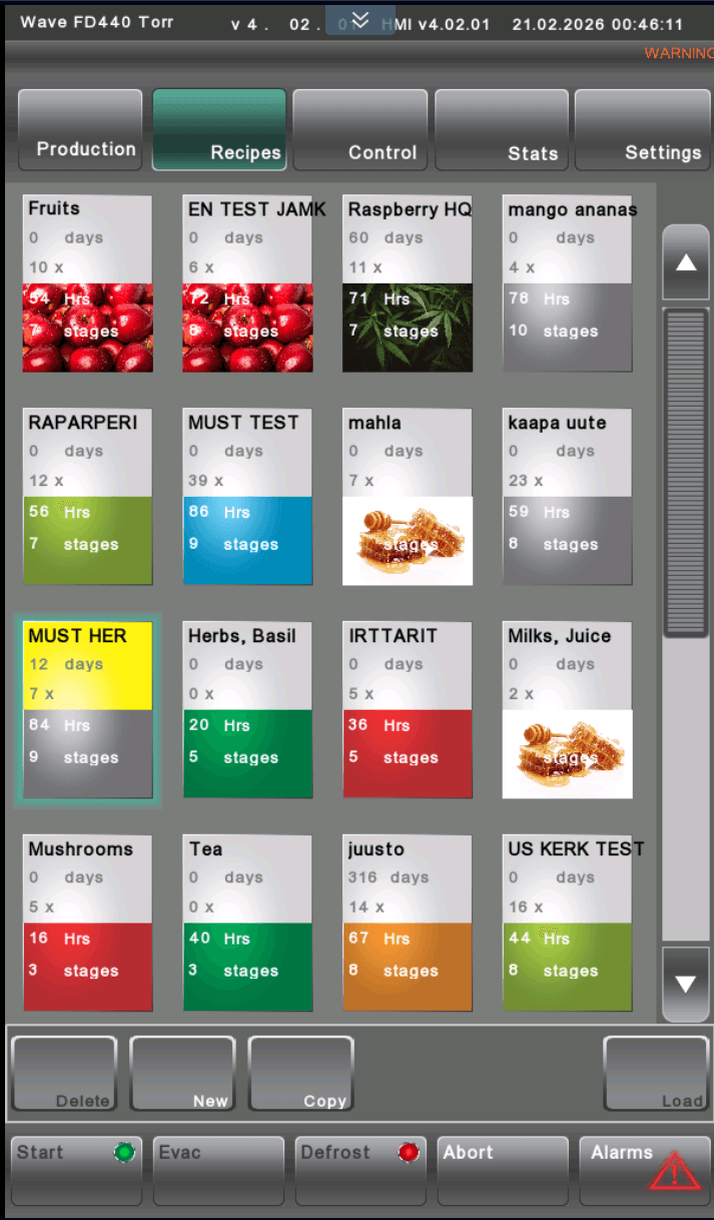

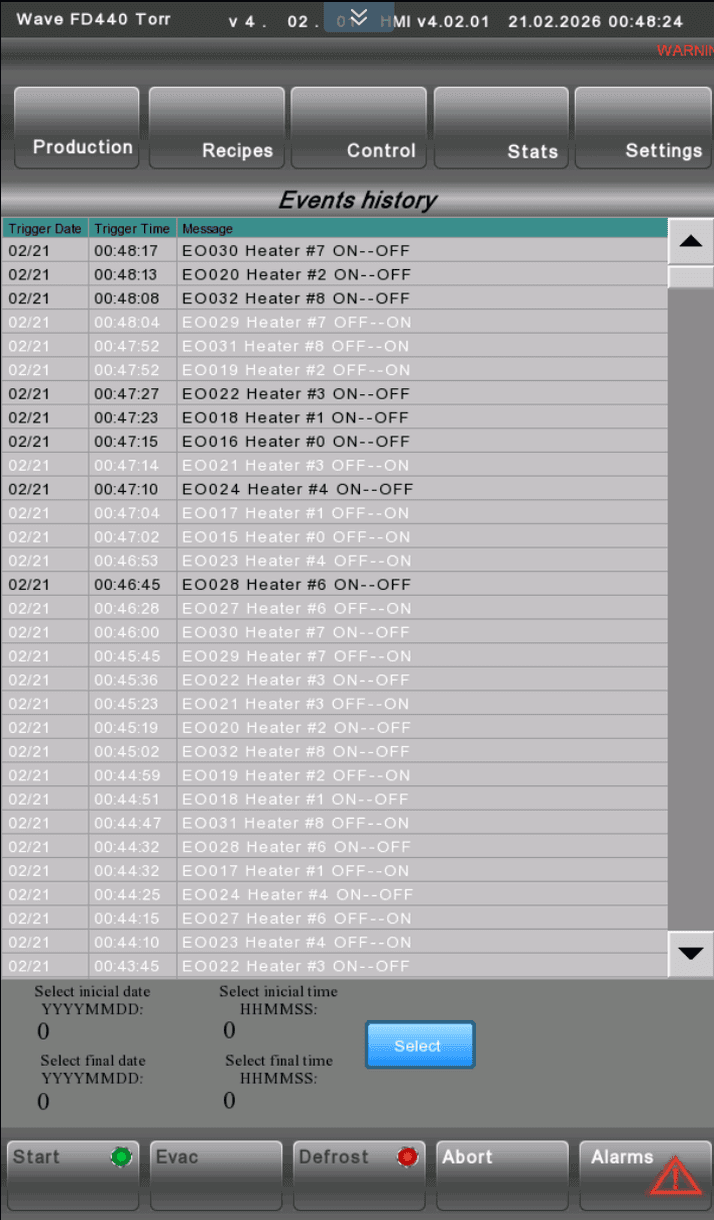

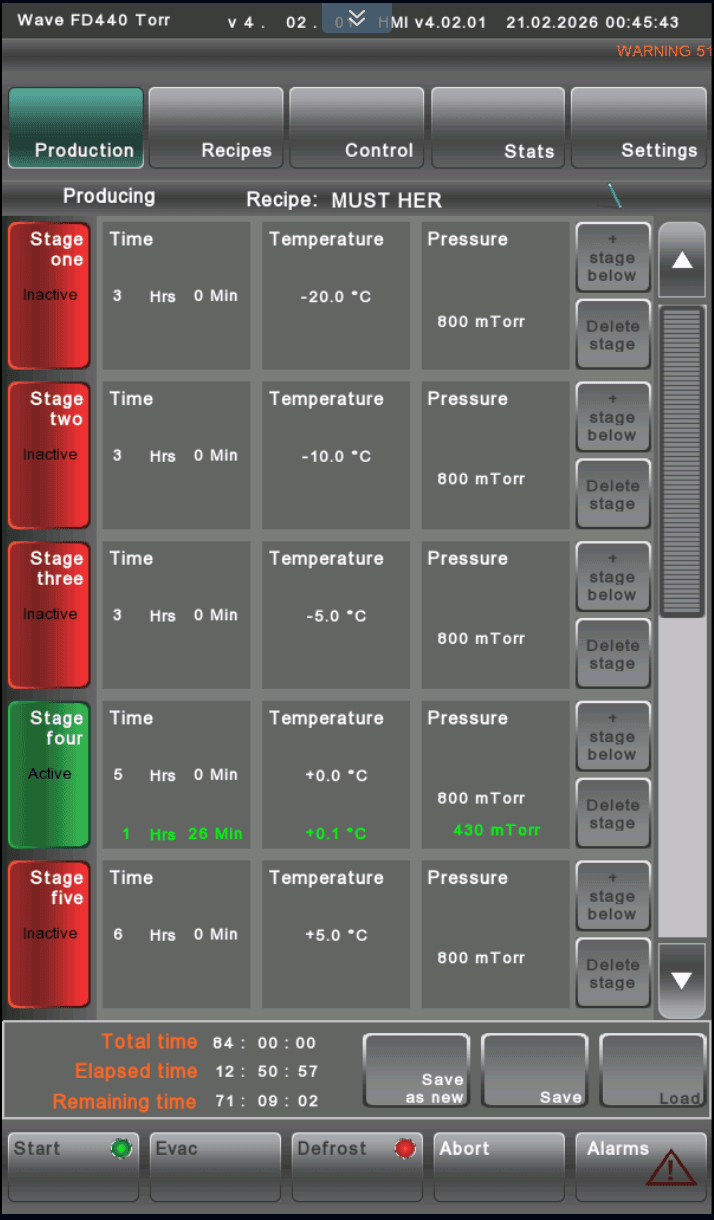

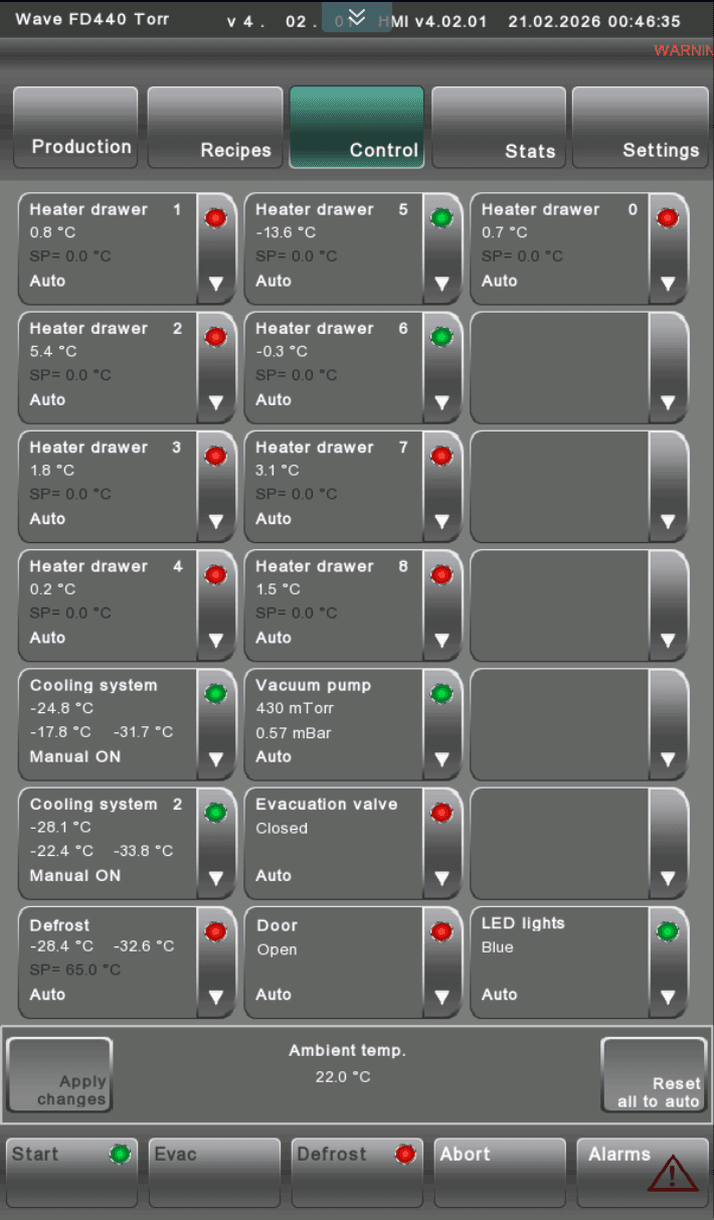

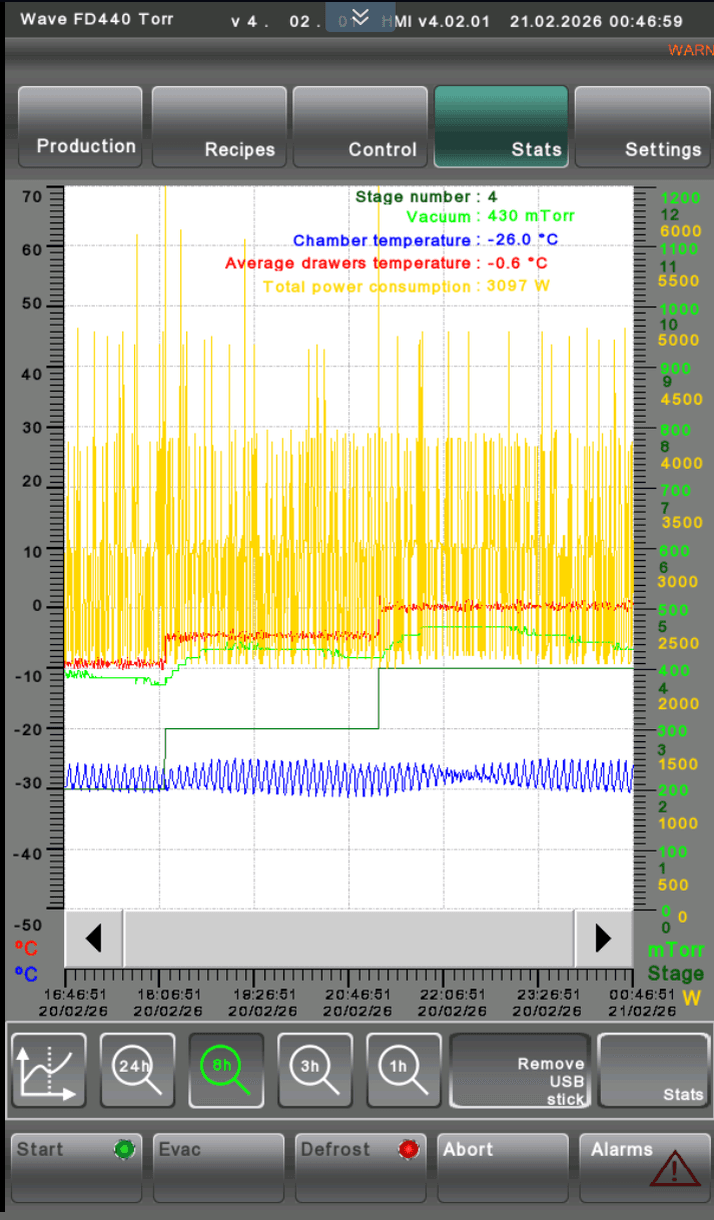

Have a look at the FD440 MENU:

KVALITĀTE

FD440 izmanto rūpnieciskā vakuuma tehnoloģiju, un tam ir ekstrūdēta 7 mm bieza vakuuma caurule. Aizvāru korpusi ir pieejami anodēta alumīnija vai nerūsējošā tērauda izpildījumā. Ierīce tiek ražota mūsu rūpnīcā Vīnē.

SERVISS

Wave galvenais birojs atrodas Austrijā. Mēs piegādājam un atbalstām klientus visā Eiropā. FD440 ir aprīkots ar attālinātu apkopi. Rezerves daļas vienmēr ir pieejamas. Mums ir arī servisa centrs ASV, kas apkalpo mūsu Amerikas klientus.

MODULARITĀTE

FD440 ir modulārs dizains un var darboties ar 1–12 nodalījumiem, kurus var individuāli uzstādīt un vadīt. Ierīces pašas ir saliekamas un var darboties kā klasteris. Ir pieejamas arī papildu virsmas apdares opcijas.

IZMAKSAS

Mūsu mērķis ir piedāvāt labāko cenas un veiktspējas attiecību liofilizatoriem. FD440 ir pieejams no 36 900,00 EUR neto.

KONFIGURATORS

Shipping destination

Select your region to include estimated shipping in the total. Final cost confirmed on the formal offer.

WAVE ships worldwide, excluding sanctioned regions (Russia, Iran, North Korea, Syria, Cuba).

FD440 / Indikatīvā cena

EUR 36,900

Jūsu konfigurācijas melnraksts

Šis dokuments tiek atjaunināts reāllaikā, kad atzīmējat opcijas augšpusē un aizpildāt savus datus kreisajā pusē. Izdrukājiet to saviem ierakstiem vai pieprasiet oficiālu piedāvājumu.

Indicative draft — not a binding offer. Prices, lead time, shipping and VAT will be confirmed in the formal proposal you receive from WAVE after submitting the request form.

Wave Trockensysteme GmbH - Stiegengasse 11 - 1060 Wien

Your company name and delivery address will appear here after you fill the request form.

DocumentDRAFT

DateJul 15, 2026

Your contactWAVE Sales Team

Configuration Draft — FD440

Terms of payment immidiately after receipt of invoice.

Item	Description	Quantity	Unit price	Total price
1.	FD440 1 gada garantija	1.00 piece	36,900.00 EUR	36,900.00 EUR
			Total net	36,900.00 EUR
			VAT 0%	0.00 EUR
			Total gross	36,900.00 EUR

The offer is valid for 14 days.

*Delivery date: Apstiprināts oficiālajā piedāvājumā

Our general terms and conditions apply (http://en.wave.cc/generaltermsandconditions)

The property remains in the possession of the seller until full payment has been made.

Customer is responsible for applicable use tax.

Incoterms 2020: DAP

Worldwide shipping available (excluding sanctioned regions such as Russia, Iran, North Korea, Syria, Cuba).

*Due to Supply-Chain-Disruptions the delivery date might change.

Export delivery, tax-exempt according to § 6 para. 1 no. 1 UstG.

Wave Trockensysteme GmbH

Stiegengasse 11

1060 Wien

Austria

Tel. +43 69915852848

Email [email protected]

Web www.wave.cc

District Court Handelsgericht Wien

FN-Nr. FN 544278 i

VAT.-ID ATU76131758

Tax-No. ATU76131758

CEO Michael Marcovici

Bank Erste Bank

Account no. AT87 2011 1843 3989 4800

BIC GIBAATWWXXX

1/1

SPECIFIKĀCIJAS

Max Ice Extraction

60 Kg per cycle

Drawer Loading Volume

192 Liters

Tray Size

600 x 400 mm

Total Tray Area (8 shelves)

3.85 m²

Energy Consumption

2.5 kW/h average

Chamber Type

Extruded Aluminium Tube, 7 mm wall

Chamber Diameter

600 mm

Chamber Finish

Hard Anodized 25µ inside and outside

Number of Shelves

4 to 12 (8 standard)

Shelf Spacing

48 mm (8) / 64 mm (6) / 32 mm (12)

Shelf Material

Anodized Aluminium or Stainless Steel

Shelf Temperature Range

-40°C to +80°C

Temperature Sensors

PT100 Class A, ± 1°C precision

Vacuum Pump

Two-Stage Rotary Vane or Scroll Pump

Pump Down Time

20 minutes to 0.1 mbar

Final Vacuum

< 0.07 mbar (50 mTorr max)

Leak Rate

10⁻⁴ mTorr/sec

Vacuum Sensor

Pirani

Heating Power

Up to 400 Watt per tray

Heating System

Electrical Heating Mat

Heating Time (-30 to +20°C)

3 minutes

Cooldown (+20 to -30°C unloaded)

20 minutes

Defrost Time

20 - 60 minutes (electrical)

Refrigeration Compressors

2 x Embraco Piston Type

Refrigeration Power

3 kW

Refrigerant

R449A or R404A

Min Cooling Temperature

-40°C

Door Material

40 mm Acrylic

Door Gasket

Silicone Rubber

Door Opening Angle

170° (hinge on left)

Door Lock

Manual, Mechanical Closing

Control System

Siemens Simatic PLC

Monitor

Kinco HD Color Touchscreen

Connectivity

Ethernet / IoT WAVE Network

Dimensions (L x W x H)

89 x 140 x 130 cm

Total Weight

430 Kg

Noise Level

< 65 dB at 1 m

Max Ambient Temperature

< 23°C

Electricity EU Version

400V / 3 / N

Electricity US Version

240V / 1 / N (120V / 2 / N)

Max Electrical Load

9 kW

Lead Time, Spare Parts & Industry Standards

Lead Time

~ 2 months

Approximately 2 months from order confirmation to delivery. Express and super-express production slots available at an extra cost.

Spare Parts

In stock / ~ 2 weeks

All critical components are permanently in stock and ship same-day. Less common parts are procured within roughly 2 weeks.

Standard Industrial Components

We exclusively use standard industrial components — Siemens (PLC), ABB (safety), Embraco (compressors), Phoenix Contact (controls), Danfoss (refrigeration). No exotic special parts. Repair and replacement available worldwide.
