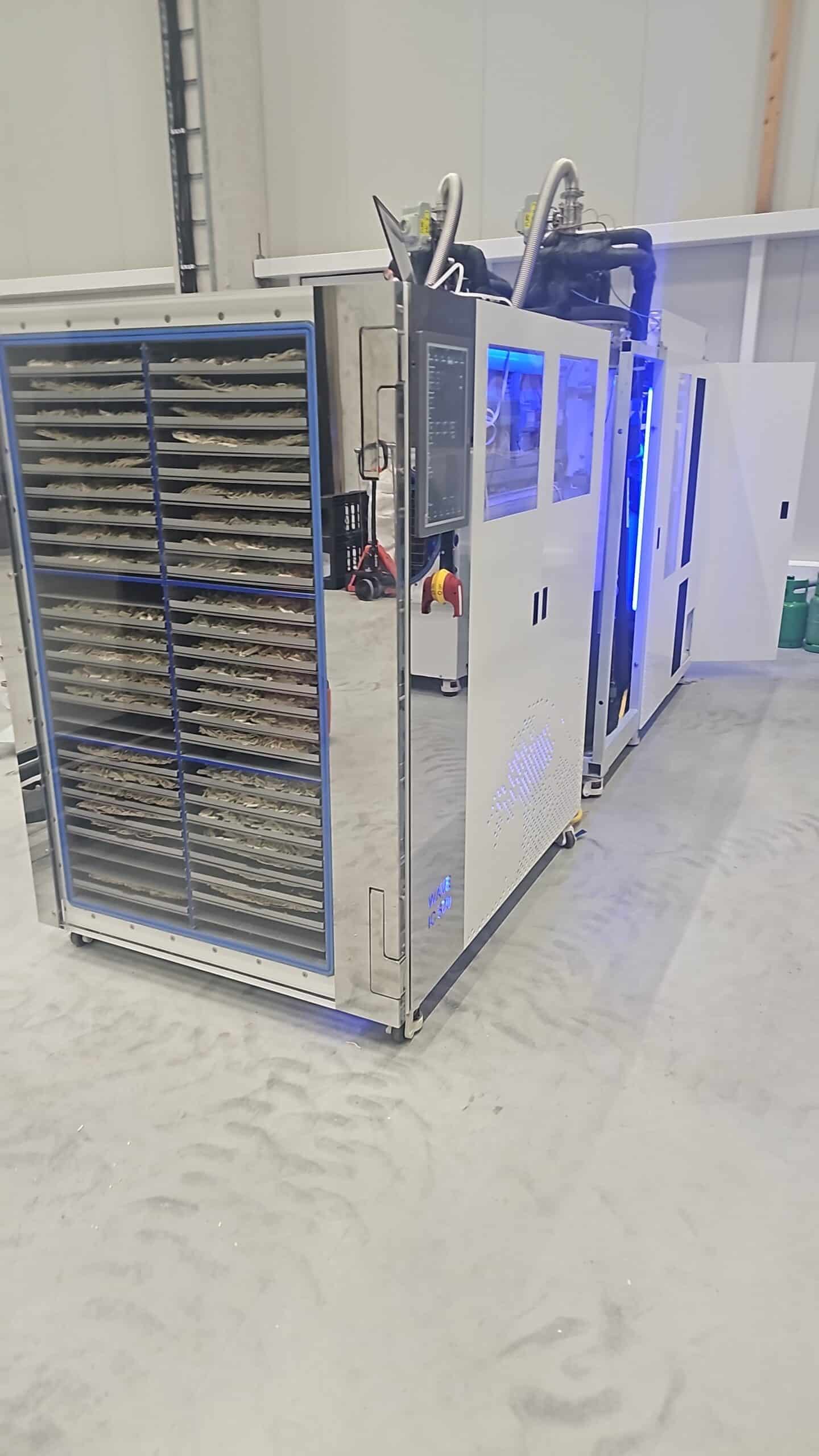

WAVE

IC570MAX

Name: WAVE IC570MAX
Brand: WAVE
SKU: ic570
Price: 225000 EUR
Availability: InStock

Maksimālais rūpnieciskais liofilizators

SĀKUMA CENA

225000€

$198,000

Ekstrakcijas jauda

25 kg/h

Ielādes tilpums

380 Kg

Enerģija

15.0 KW/h

IC570MAX ir WAVE liofilizācijas tehnoloģijas virsotne.

PIEPRASĪT PIEDĀVĀJUMU Lejupielādēt aprakstu

GALVENĀS FUNKCIJAS

Maksimāla rūpnieciskā jauda

Katrs plaukts ar individuālu temperatūras kontroli

IoT attālināta uzraudzība

Attālināta uzraudzība un palīdzība caur WAVE IoT SIM tīklu

24h WhatsApp atbalsts

ABB drošības slēdži

Vispassaules serviss uz vietas

Visi metāla plaukti

Konfigurācija

KVALITĀTE

IC570 ir kompaktākā ierīce savā klasē ar nospiedumu tikai 360cm x 170cm x 115cm un iekraušanas tilpumu līdz 500 kg.

SERVISS

Wave galvenais birojs atrodas Austrijā. Mēs piegādājam un atbalstām klientus visā Eiropā. IC570 ir aprīkots ar attālinātu apkopi. Rezerves daļas vienmēr ir pieejamas. Mums ir arī servisa centrs ASV, kas apkalpo mūsu Amerikas klientus, kā arī Indijā, Dubajā un Spānijā.

ENERGOEFEKTIVITĀTE

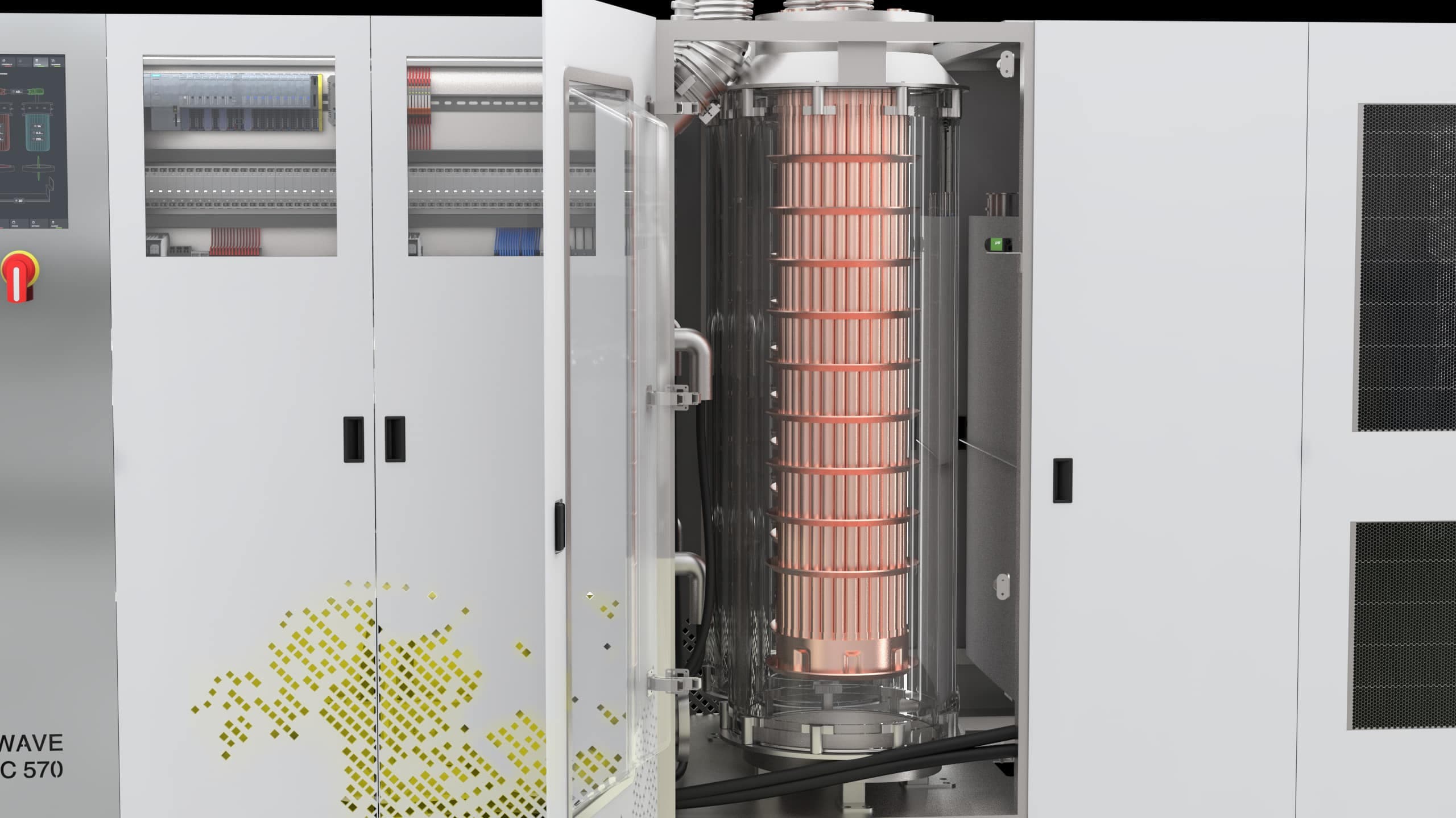

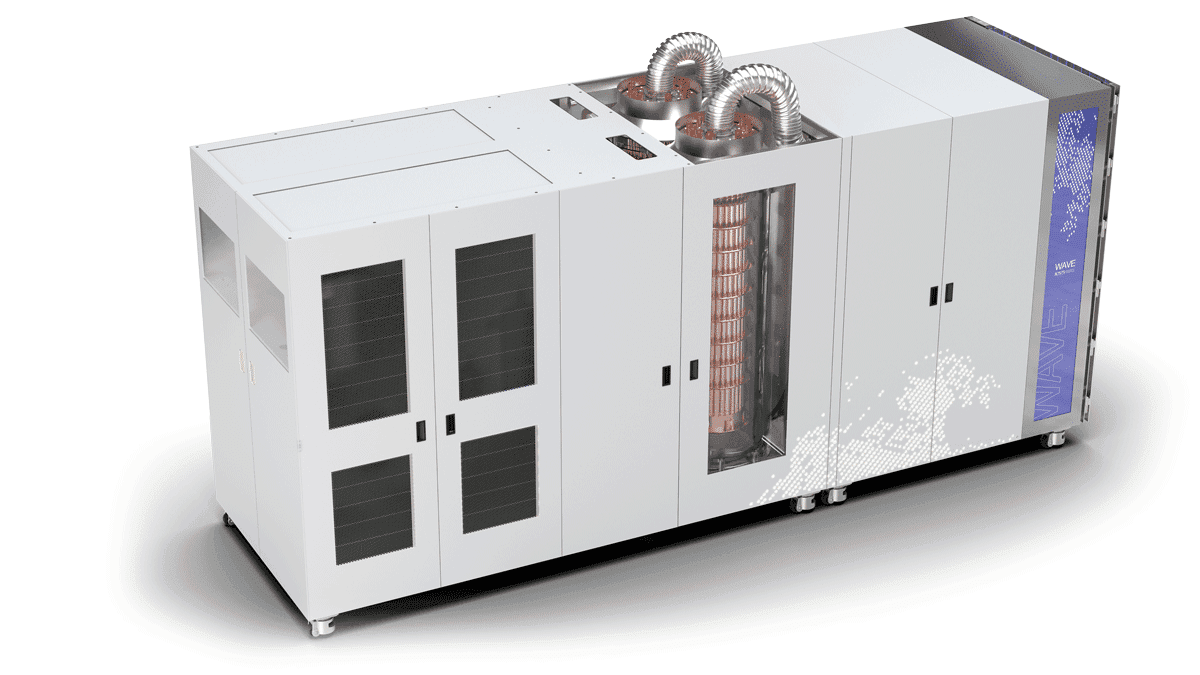

IC570 izmanto dubultkameras auksto slazdu, kas nodrošina neierobežotu žāvēšanas jaudu un labāko enerģijas izmantošanu — kamēr viens caurule dzesē un savāc ūdeni, otrs atkausējas, izmantojot dzesēšanas procesa lieko enerģiju, turklāt vairs nav atkausēšanas laika zudumu.

IZMAKSAS

Mūsu mērķis ir piedāvāt labāko cenas un veiktspējas attiecību liofilizatoriem. IC570 ir pieejams no 198 000 EUR, neieskaitot vakuuma sūkni.

KONFIGURATORS

Shipping destination

Select your region to include estimated shipping in the total. Final cost confirmed on the formal offer.

WAVE ships worldwide, excluding sanctioned regions (Russia, Iran, North Korea, Syria, Cuba).

IC570MAX / Indikatīvā cena

EUR 225,000

Jūsu konfigurācijas melnraksts

Šis dokuments tiek atjaunināts reāllaikā, kad atzīmējat opcijas augšpusē un aizpildāt savus datus kreisajā pusē. Izdrukājiet to saviem ierakstiem vai pieprasiet oficiālu piedāvājumu.

Indicative draft — not a binding offer. Prices, lead time, shipping and VAT will be confirmed in the formal proposal you receive from WAVE after submitting the request form.

Wave Trockensysteme GmbH - Stiegengasse 11 - 1060 Wien

Your company name and delivery address will appear here after you fill the request form.

DocumentDRAFT

DateJul 15, 2026

Your contactWAVE Sales Team

Configuration Draft — IC570MAX

Terms of payment immidiately after receipt of invoice.

Item	Description	Quantity	Unit price	Total price
1.	IC570MAX 1 gada garantija	1.00 piece	225,000.00 EUR	225,000.00 EUR
			Total net	225,000.00 EUR
			VAT 0%	0.00 EUR
			Total gross	225,000.00 EUR

The offer is valid for 14 days.

*Delivery date: Apstiprināts oficiālajā piedāvājumā

Our general terms and conditions apply (http://en.wave.cc/generaltermsandconditions)

The property remains in the possession of the seller until full payment has been made.

Customer is responsible for applicable use tax.

Incoterms 2020: DAP

Worldwide shipping available (excluding sanctioned regions such as Russia, Iran, North Korea, Syria, Cuba).

*Due to Supply-Chain-Disruptions the delivery date might change.

Export delivery, tax-exempt according to § 6 para. 1 no. 1 UstG.

Wave Trockensysteme GmbH

Stiegengasse 11

1060 Wien

Austria

Tel. +43 69915852848

Email [email protected]

Web www.wave.cc

District Court Handelsgericht Wien

FN-Nr. FN 544278 i

VAT.-ID ATU76131758

Tax-No. ATU76131758

CEO Michael Marcovici

Bank Erste Bank

Account no. AT87 2011 1843 3989 4800

BIC GIBAATWWXXX

1/1

SPECIFIKĀCIJAS

Max Ice Extraction

20 kg/h (infinite, dual chamber)

Chamber Volume

1700 Liters

Chamber Dimensions

1700 x 900 x 1300 mm

Chamber Material

Aluminium, NANO coated

Total Tray Area

25.92 m²

Number of Trays

108 (52 compartments)

Shelf Spacing

50 mm

Tray Size

600 x 400 x 20 mm (2 per shelf)

Shelf Material

Anodized Aluminium or Stainless Steel

Shelf Temperature Range

Up to +80°C

Temperature Sensors

PT100 Class A, ± 0.1°C precision

Vacuum Pump

Leybold Varodry 200 (recommended)

Pump Down Time

40 minutes to 0.1 mbar

Final Vacuum

< 0.01 mbar (10 mTorr max)

Leak Rate

10⁻⁴ mTorr/sec

Vacuum Sensor

3 x Thyracont Vacuum Sensors

Heating Power

Up to 400 Watt per tray

Heating System

Kapton Mat

Max Shelf Temperature

+80°C

Refrigeration Compressors

2 x Bitzer

Compressor Power (MAX1 / MAX2 / MAX3)

5.5 / 8.5 / 12.5 kW

Coldtrap Capacity (MAX1 / MAX2 / MAX3)

270 / 380 / 500 L per 24h

Refrigerant

R449A or R404A

Min Cooling Temperature

-70°C

Defrost System

Dual Chamber (0 min downtime)

Door Material

50 mm Acrylic Sheet

Door Gasket

Silicone Rubber

Door Opening Direction

Moving to the front

Door Lock

Manual, Mechanical Closing

Chamber Form

Square

Chamber Internal Finish

NANO Coat

Chamber Outside Finish

NANO Coat

Control System

Siemens Simatic S7 + Kinco

Monitor

Kinco HD Color Touchscreen

Connectivity

CAT6 Ethernet / IoT WAVE Network

Dimensions (L x W x H)

3718 x 1177 x 1700 mm

Total Weight

3150 Kg

Noise Level

< 65 dB at 1 m

Max Ambient Temperature

< 25°C

Electricity EU Version

230V / 50Hz / 63A / 3 phases / N / G

Max Electrical Load

45 kW

Lead Time, Spare Parts & Industry Standards

Lead Time

~ 6 months

Approximately 6 months from order confirmation to delivery. Express and super-express production slots available at an extra cost.

Spare Parts

In stock / ~ 2 weeks

All critical components are permanently in stock and ship same-day. Less common parts are procured within roughly 2 weeks.

Standard Industrial Components

We exclusively use standard industrial components — Siemens (PLC), ABB (safety), Embraco (compressors), Phoenix Contact (controls), Danfoss (refrigeration). No exotic special parts. Repair and replacement available worldwide.
