WAVE

FD440 MAX

Name: WAVE FD440 MAX
Brand: WAVE
SKU: fd440-max
Price: 49500 EUR
Availability: InStock

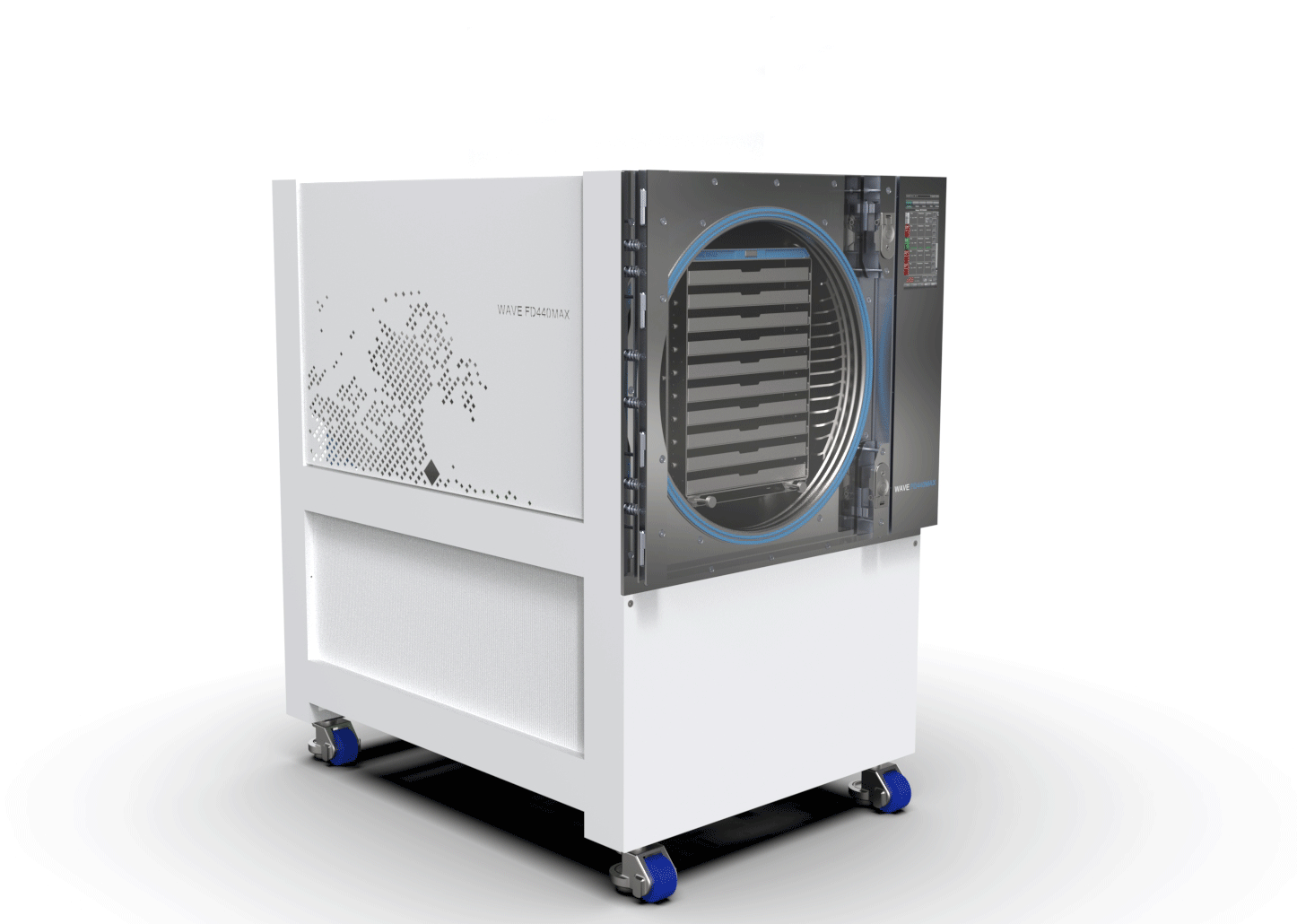

Högkapacitetsfrystork

FRÅN

49500€

Extraktionskapacitet

100 Kg

Laddningsvolym

220 liters

Energi

3.0 KW/h

FD440 MAX levererar maximal extraktionskapacitet i kompakt format.

BEGÄR OFFERT Ladda ner beskrivning

NYCKELFUNKTIONER

Varje hylla individuellt temperaturreglerad

Maximal kapacitet i kompakt design

IoT-fjärrövervakning

Fjärrövervakning via WAVE IoT SIM-nätverk

24h WhatsApp-support

ABB säkerhetsbrytare

Världsomspännande platservice

Alla metallhyllor

Konfiguration

KVALITET

FD440 MAX använder industriell vakuumteknik och har ett extruderat vakuumrör med 7 mm tjocklek. Slutarhusen finns i anodiserad aluminium eller rostfritt stål. Enheten tillverkas i vår fabrik i Wien.

SERVICE

Wave har sitt huvudkontor i Österrike. Vi levererar och stödjer kunder i hela Europa. FD440 MAX är utrustad med fjärrunderhåll. Reservdelar finns alltid tillgängliga. Vi har även ett servicecenter i USA som servar våra amerikanska kunder.

MODULARITET

FD440 MAX har en modulär design och kan drivas med 1–12 fack som kan monteras och styras individuellt. Enheterna är stapelbara och kan köras som ett kluster. Ytterligare alternativ avseende ytbehandling finns också tillgängliga.

KOSTNADER

Vårt mål är att erbjuda det bästa förhållandet mellan pris och prestanda för frystorkar. FD440 MAX är tillgänglig från 49 500,00 EUR netto.

KONFIGURATOR

Shipping destination

Select your region to include estimated shipping in the total. Final cost confirmed on the formal offer.

WAVE ships worldwide, excluding sanctioned regions (Russia, Iran, North Korea, Syria, Cuba).

FD440 MAX / Indikativt pris

EUR 49,500

Ditt konfigurationsutkast

Det här dokumentet uppdateras i realtid när du kryssar i alternativ ovan och fyller i dina uppgifter till vänster. Skriv ut det för dina arkiv eller begär ett formellt erbjudande.

Indicative draft — not a binding offer. Prices, lead time, shipping and VAT will be confirmed in the formal proposal you receive from WAVE after submitting the request form.

Wave Trockensysteme GmbH - Stiegengasse 11 - 1060 Wien

Your company name and delivery address will appear here after you fill the request form.

DocumentDRAFT

DateJul 16, 2026

Your contactWAVE Sales Team

Configuration Draft — FD440 MAX

Terms of payment immidiately after receipt of invoice.

Item	Description	Quantity	Unit price	Total price
1.	FD440 MAX 1 års garanti	1.00 piece	49,500.00 EUR	49,500.00 EUR
			Total net	49,500.00 EUR
			VAT 0%	0.00 EUR
			Total gross	49,500.00 EUR

The offer is valid for 14 days.

*Delivery date: Bekräftas i det formella erbjudandet

Our general terms and conditions apply (http://en.wave.cc/generaltermsandconditions)

The property remains in the possession of the seller until full payment has been made.

Customer is responsible for applicable use tax.

Incoterms 2020: DAP

Worldwide shipping available (excluding sanctioned regions such as Russia, Iran, North Korea, Syria, Cuba).

*Due to Supply-Chain-Disruptions the delivery date might change.

Export delivery, tax-exempt according to § 6 para. 1 no. 1 UstG.

Wave Trockensysteme GmbH

Stiegengasse 11

1060 Wien

Austria

Tel. +43 69915852848

Email [email protected]

Web www.wave.cc

District Court Handelsgericht Wien

FN-Nr. FN 544278 i

VAT.-ID ATU76131758

Tax-No. ATU76131758

CEO Michael Marcovici

Bank Erste Bank

Account no. AT87 2011 1843 3989 4800

BIC GIBAATWWXXX

1/1

SPECIFIKATIONER

Max Ice Extraction

100 Liters per cycle

Drawer Loading Volume

224 Liters

Tray Size

600 x 400 x 20 mm (2 trays per drawer)

Total Tray Area (8 shelves)

4.85 m²

Energy Consumption

3.0 kW/h average

Chamber Type

Extruded Aluminium Tube, 7 mm wall

Chamber Diameter

720 mm

Chamber Form

Tube

Chamber Finish

Hard Anodized 25µ inside and outside

Number of Shelves

4 to 20 (8 standard)

Shelf Spacing

50 mm (8) / 64 mm (6) / 32 mm (12)

Shelf Material

Anodized Aluminium or Stainless Steel

Shelf Temperature Range

-55°C to +80°C

Temperature Sensors

PT100 Class A, ± 1°C precision

Vacuum Pump

Two-Stage Rotary Vane or Scroll Pump (20m³+)

Pump Down Time

< 30 minutes to 0.1 mbar

Final Vacuum

< 0.07 mbar (10 mTorr max)

Leak Rate

10⁻⁴ mTorr/sec

Vacuum Sensor

Pirani

Heating Power

Up to 500 Watt per tray

Heating System

Electrical Heating Mat

Max Heating Mat Temperature

+80°C

Heating Time (-30 to +20°C)

3 minutes (empty)

Cooldown (+20 to -30°C unloaded)

20 minutes

Defrost Time

50 minutes (ice removable earlier)

Refrigeration Compressors

1 x Embraco Piston Type

Refrigeration Power

6 kW

Refrigerant

R449A

Min Cooling Temperature

-60°C

Door Material

50 mm Acrylic

Door Gasket

Silicone Rubber

Door Opening Angle

170° (hinge on left)

Door Lock

Manual, Mechanical Closing

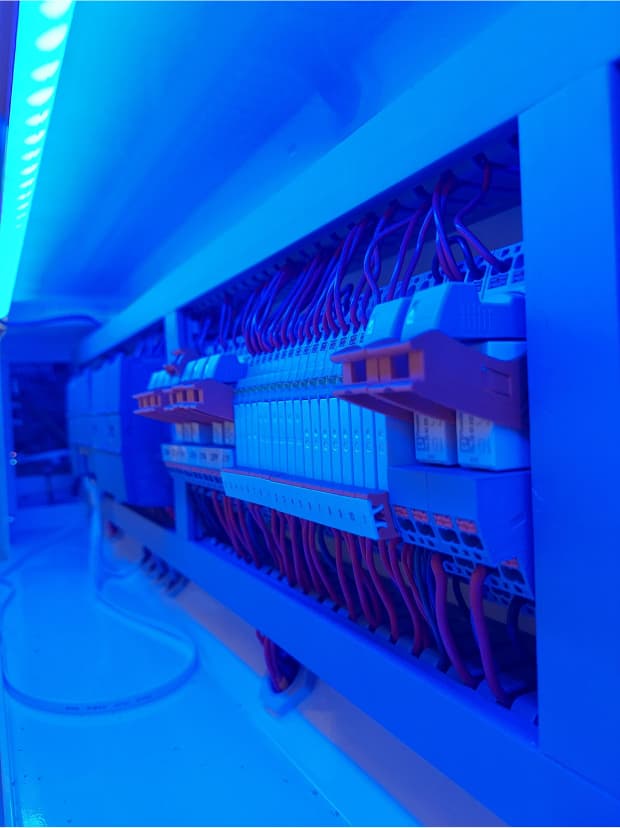

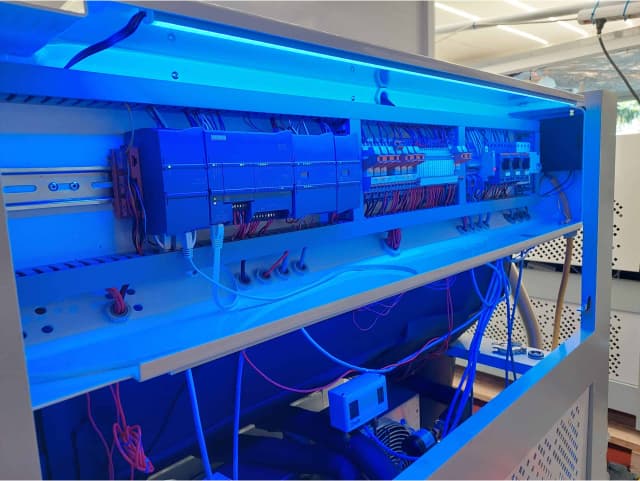

Control System

Siemens Simatic PLC

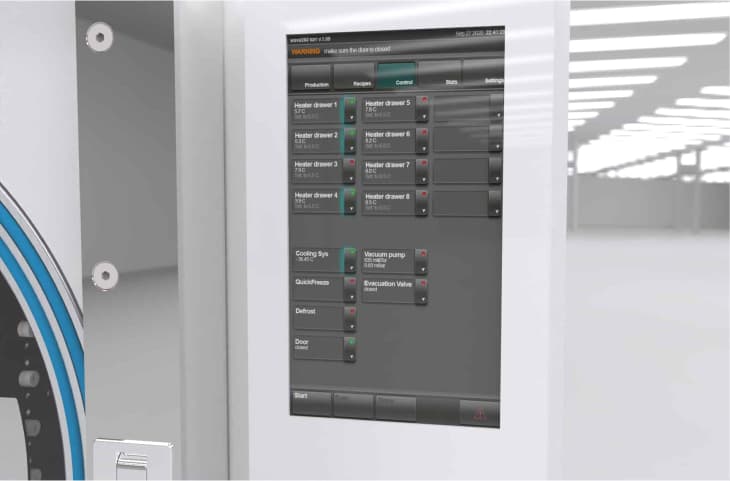

Monitor

Kinco HD Color Touchscreen

Connectivity

CAT6 Ethernet / IoT WAVE Network

Dimensions (L x W x H)

110 x 140 x 170 cm

Total Weight

650 Kg

Noise Level

< 65 dB at 1 m

Max Ambient Temperature

< 23°C

Electricity EU Version

400V / 3 / N

Electricity US Version

240V / 1 / N (120V / 2 / N)

Max Electrical Load

11 kW

Lead Time, Spare Parts & Industry Standards

Lead Time

~ 2 months

Approximately 2 months from order confirmation to delivery. Express and super-express production slots available at an extra cost.

Spare Parts

In stock / ~ 2 weeks

All critical components are permanently in stock and ship same-day. Less common parts are procured within roughly 2 weeks.

Standard Industrial Components

We exclusively use standard industrial components — Siemens (PLC), ABB (safety), Embraco (compressors), Phoenix Contact (controls), Danfoss (refrigeration). No exotic special parts. Repair and replacement available worldwide.
