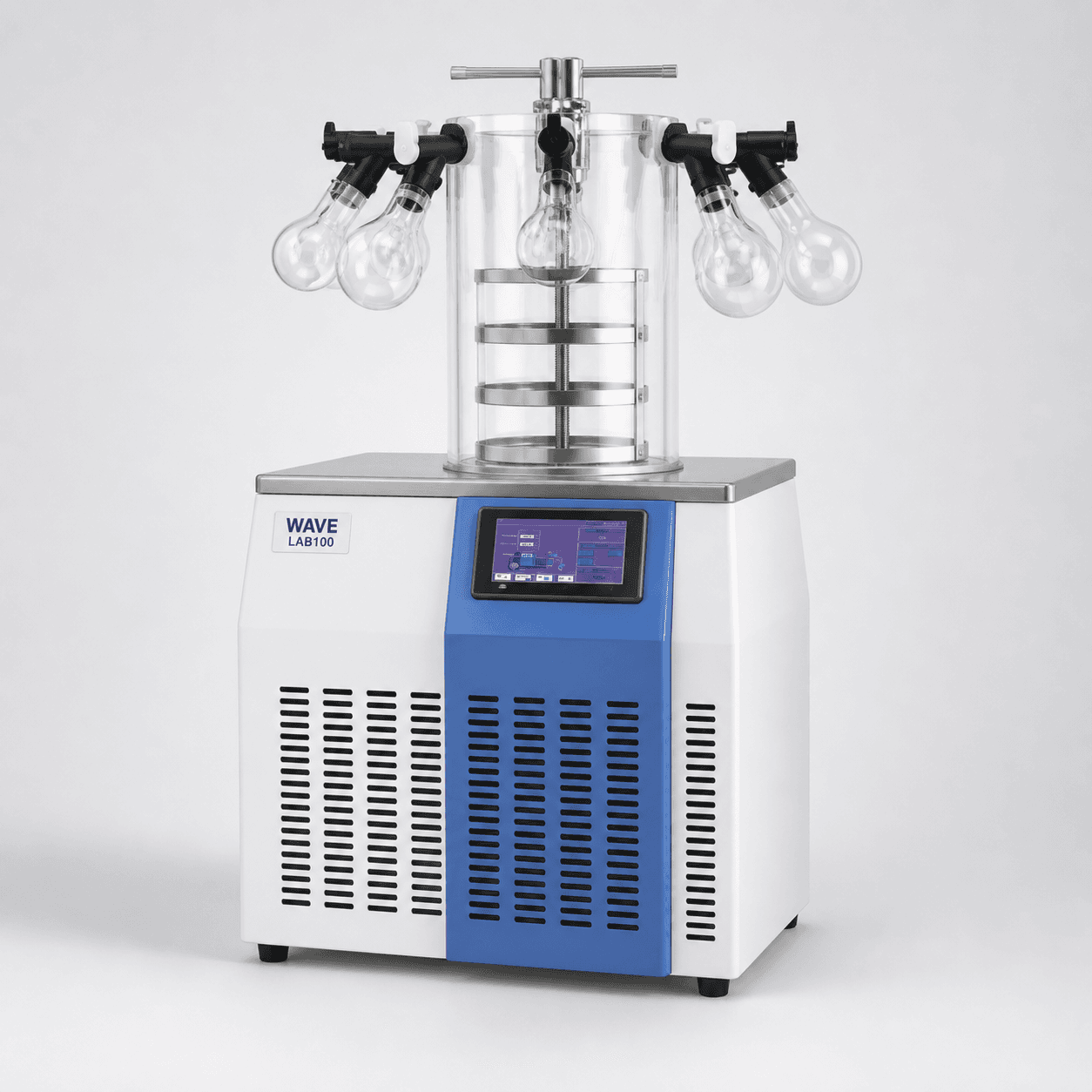

LAB100
WAVE LAB Series
Laboratory freeze dryers for flexible sample processing
السعر
€4,780
سعة الاستخراج
3-4 L/24 h
حجم التحميل
1.6 L
Cold trap
6 L
الطاقة
1.3 kW
Compact PT laboratory model for smaller sample batches with a 6-litre cold trap and 1.6-litre total load.
THREE LABORATORY MODELS
Choose LAB100 or LAB120 with PT stoppering, or LAB180 P for the highest tray capacity.
| Model | Price | Water capture | Drying area | Total liquid load | Cold trap |
|---|---|---|---|---|---|
| WAVE LAB100 | €4,780 | 3-4 L/24 h | 0.08 m² | 1.6 L | 6 L |
| WAVE LAB120 | €5,900 | 3-4 L/24 h | 0.08 m² | 1.6 L | 9 L |
| WAVE LAB180 | €7,450 | 6 L/24 h | 0.27 m² | 5.4 L | 28 L |
الميزات الرئيسية
Three laboratory sizes from 6 to 28 L cold-trap volume
PT stoppering or high-capacity P configuration
8-port manifold for freeze-drying flasks
Water capture from 3-4 to 6 L per 24 hours
Color touchscreen with live temperature and vacuum curves
USB export for process records
Compact air-cooled benchtop format
WAVE documentation, commissioning and product support
THREE SIZES
Select LAB100, LAB120 or LAB180 according to the required cold-trap volume, water capture and laboratory throughput.
DATA AND CONTROL
The color touchscreen displays sample temperature, cold-trap temperature and vacuum as live values and process curves. Data can be exported by USB.
FLEXIBLE CONFIGURATIONS
LAB100 and LAB120 provide PT stoppering; LAB180 P prioritizes maximum tray capacity. Every model includes an 8-port manifold.
WAVE SUPPORT
WAVE provides German and English technical documentation, application guidance, commissioning support and a direct service contact from Vienna.
المُكوِّن
Shipping destination
Select your region to include estimated shipping in the total. Final cost confirmed on the formal offer.
WAVE ships worldwide, excluding sanctioned regions (Russia, Iran, North Korea, Syria, Cuba).
WAVE LAB100 / السعر الإرشادي
€4,780
مسودة التكوين الخاصة بك
يتم تحديث هذا المستند مباشرة عند تحديد الخيارات أعلاه وملء بياناتك على اليسار. اطبعه لسجلاتك أو اطلب عرضاً رسمياً.
Wave Trockensysteme GmbH - Stiegengasse 11 - 1060 Wien
Your company name and delivery address will appear here after you fill the request form.
Configuration Draft — WAVE LAB100
Payment is due immediately upon receipt of the invoice.
| Item | Description | Quantity | Unit price | Total price |
|---|---|---|---|---|
| 1. | WAVE LAB100 ضمان سنة واحدة | 1.00 piece | 4,780.00 EUR | 4,780.00 EUR |
| Total net | 4,780.00 EUR | |||
| VAT 0% | 0.00 EUR | |||
| Total gross | 4,780.00 EUR | |||
The offer is valid for 14 days.
*Delivery date: مؤكد في العرض الرسمي
Our general terms and conditions apply (http://en.wave.cc/generaltermsandconditions)
The property remains in the possession of the seller until full payment has been made.
Customer is responsible for applicable use tax.
Incoterms 2020: DAP
Worldwide shipping available (excluding sanctioned regions such as Russia, Iran, North Korea, Syria, Cuba).
*Due to supply-chain disruptions, the delivery date may change.
Export delivery, tax-exempt according to § 6 para. 1 no. 1 UStG.
Wave Trockensysteme GmbH
Stiegengasse 11
1060 Wien
Austria
District Court Handelsgericht Wien
FN-Nr. FN 544278 i
VAT.-ID ATU76131758
Tax-No. ATU76131758
CEO Michael Marcovici
Bank Erste Bank
Account no. AT87 2011 1843 3989 4800
BIC GIBAATWWXXX
1/1
المواصفات
WAVE LAB100
تنزيل المواصفات التقنية لـ LAB Series
تنزيل المواصفات التقنيةاطلب عرض أسعار
Tell us about your project and we'll get back to you within one business day with pricing and lead time for the WAVE LAB Series.
