WAVE
40570
Mobile Container Freeze Dryer with Kitchen
STARTING PRICE
1200000€
Extraction Capacity
100 kg/h
Loading Volume
2,000 Kg
Energy
80 KW

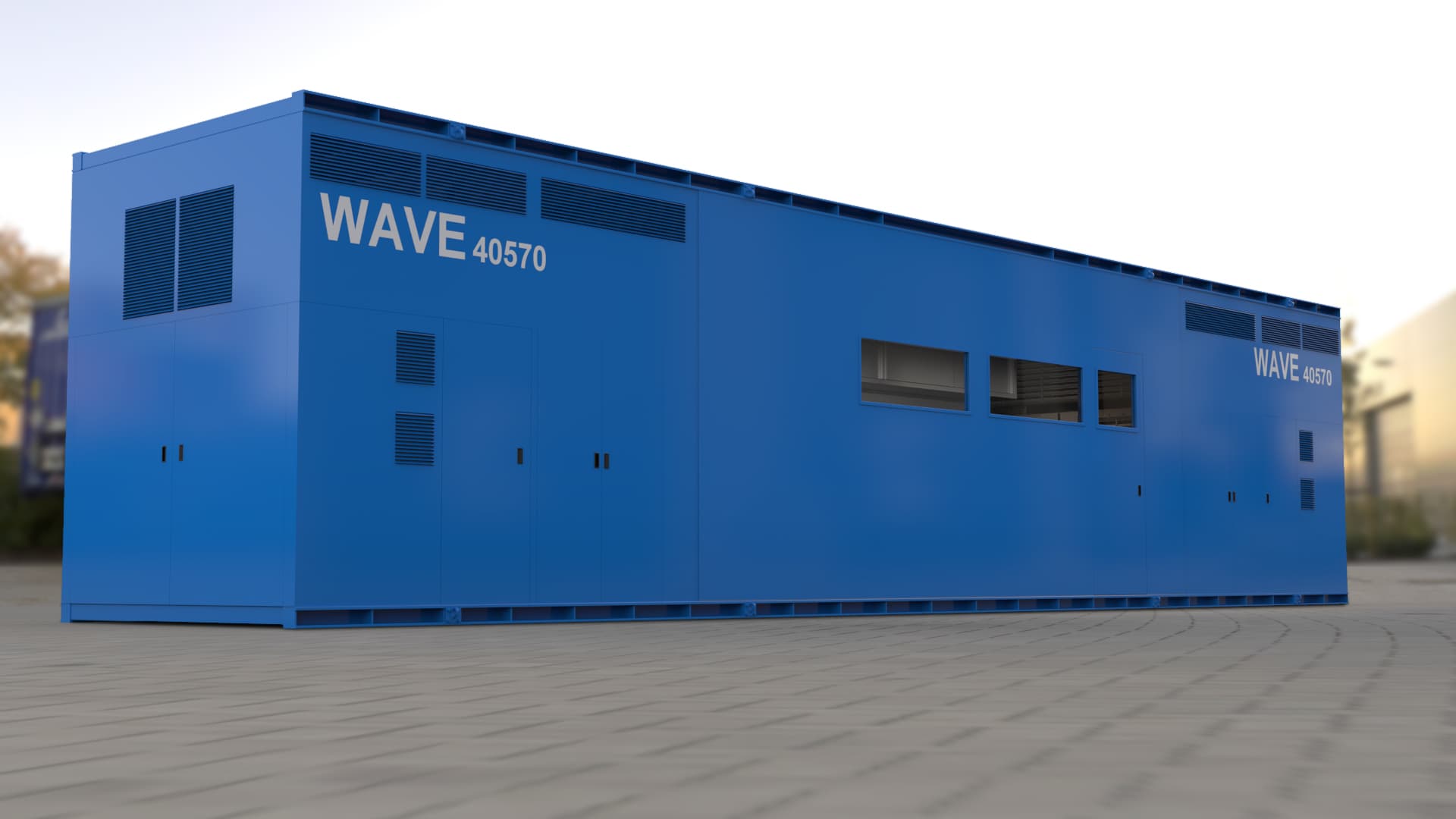

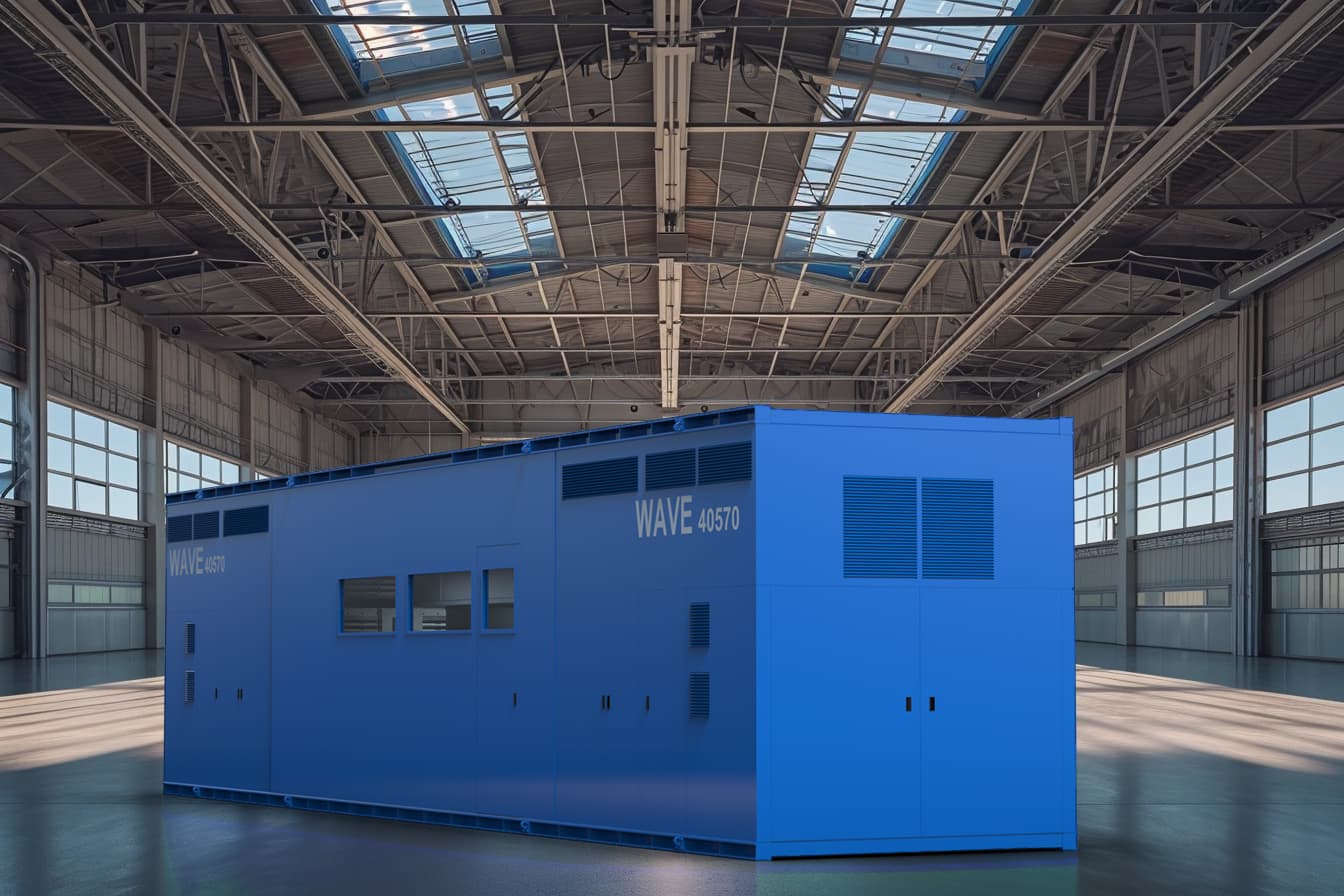

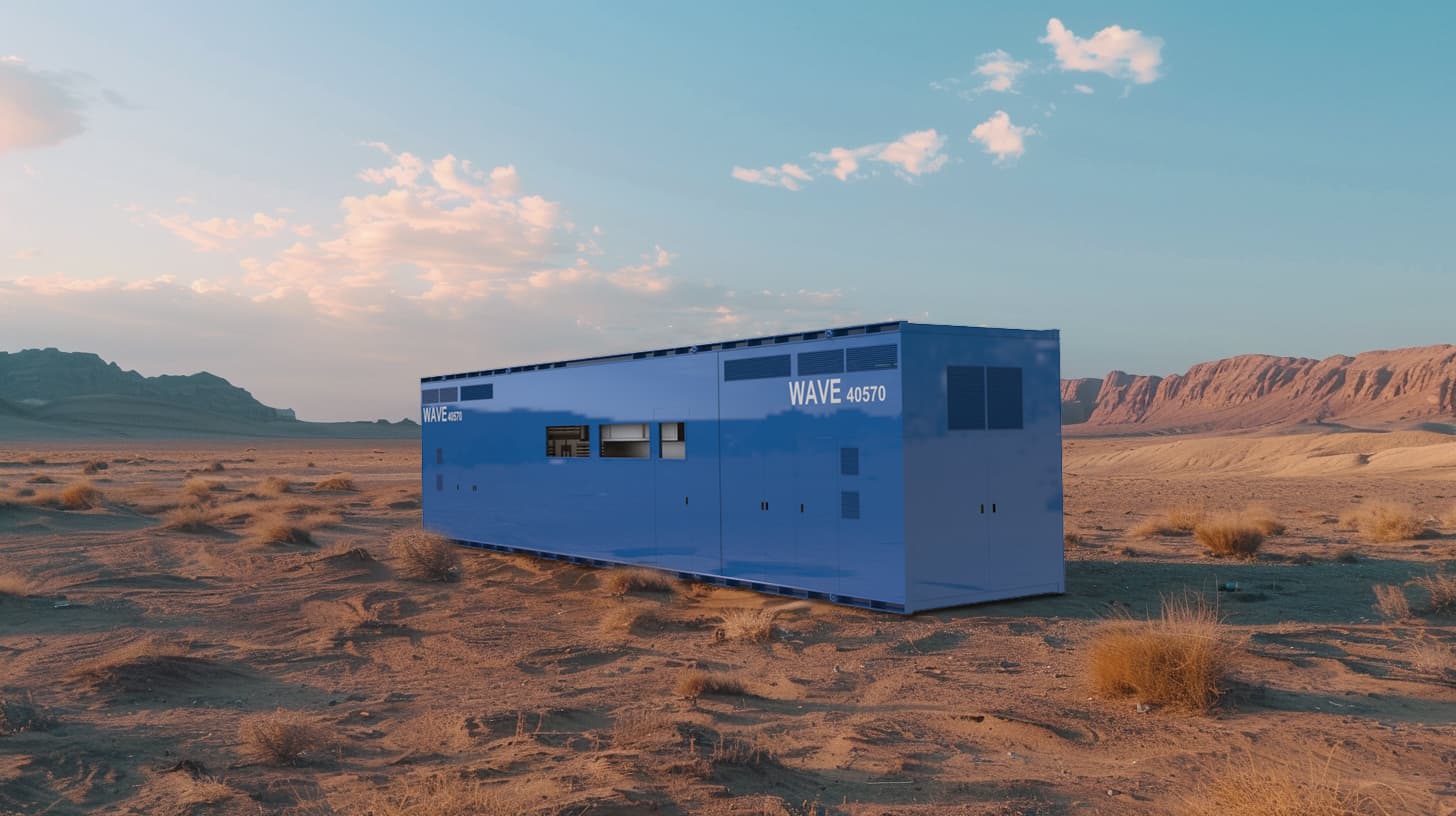

The WAVE 40570 has been designed for operations in challenging environments and conditions, suitable for long-term relief efforts, humanitarian missions and military use. It integrates four IC570 units together with a kitchen inside a standard 40" shipping container. The unit is quick and simple to deploy, requires only an electrical hookup, and can dry up to 10,000 meals every 24 hours on 416 trays. It includes a fully equipped kitchen for material preparation and runs on a 100 kW power supply, typically from a generator.
KEY FEATURES
Mobile deployment in standard 40" shipping container
416 trays for up to 10,000 meals per day
Fully equipped kitchen for material preparation
Constant cloud connectivity via mobile/satellite networks
Microsoft HoloLens 2 for remote assistance
Tablet washer and high-pressure chamber cleaner
Worldwide site service
Designed for humanitarian and military operations
Configuration
MOBILE

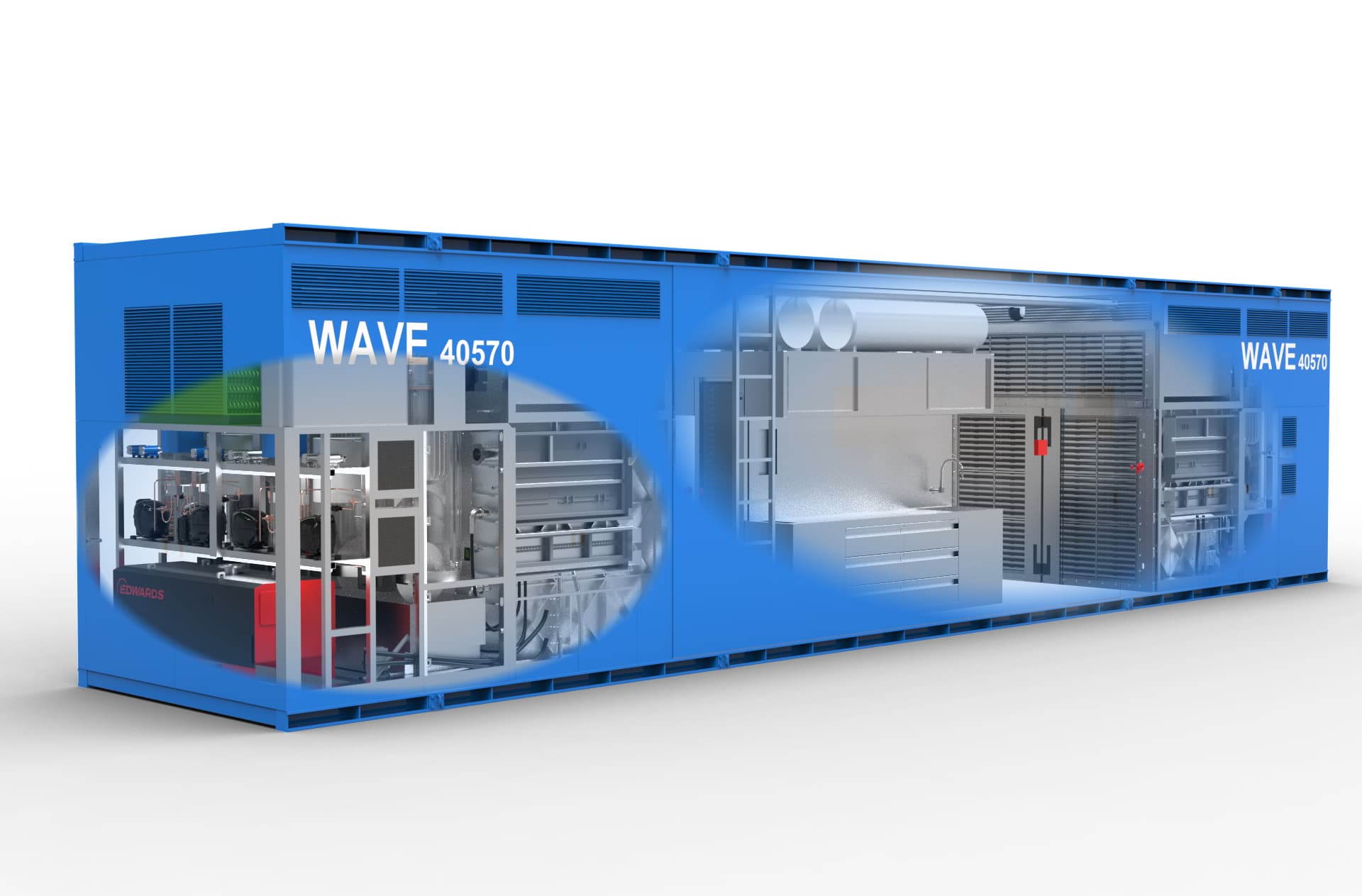

The 40570 integrates four IC570 units alongside a kitchen within a standard 40" shipping container. This machine simply requires an electrical hookup and can be fully operational within just a few hours.
AUTONOMOUS

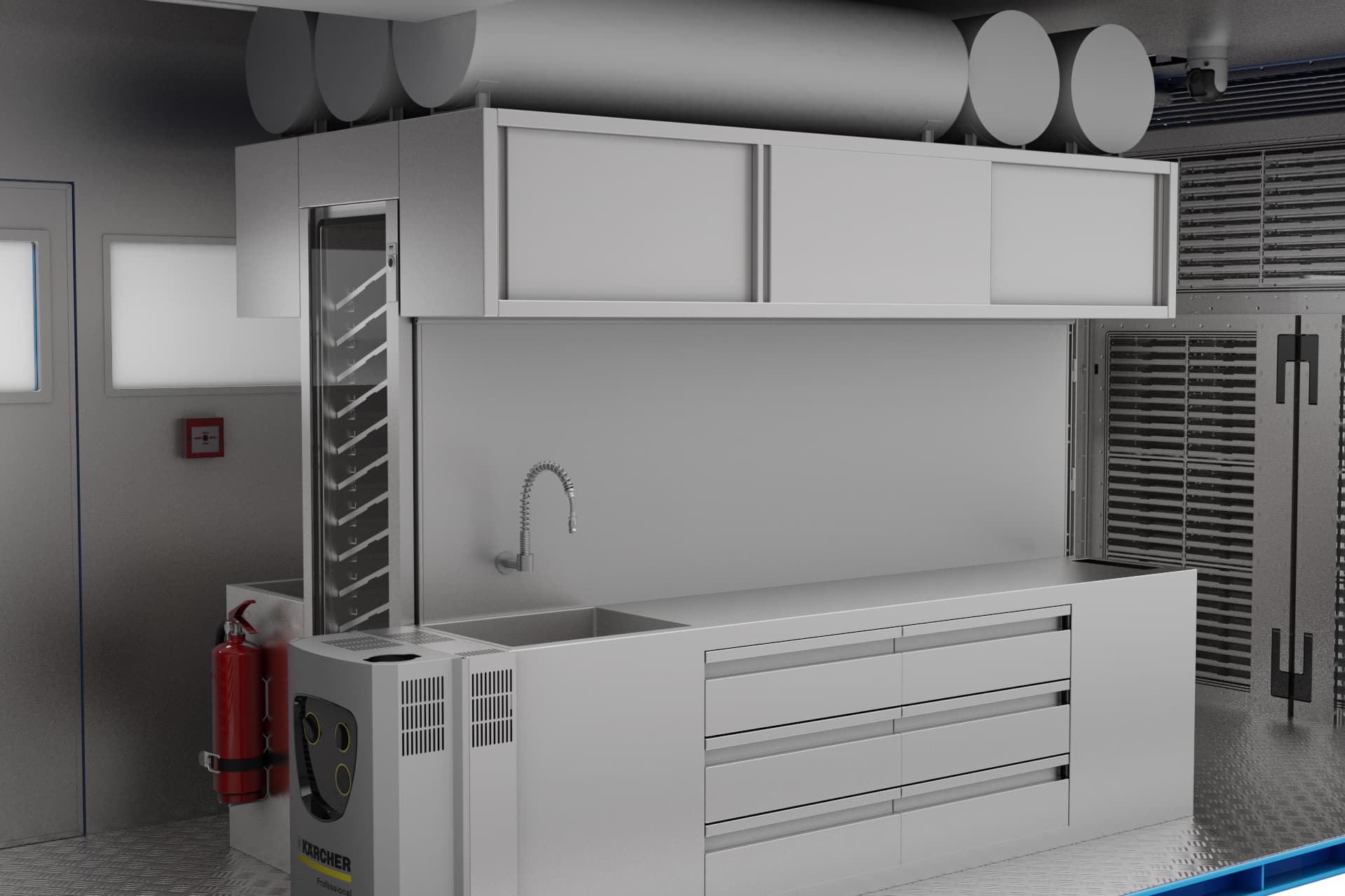

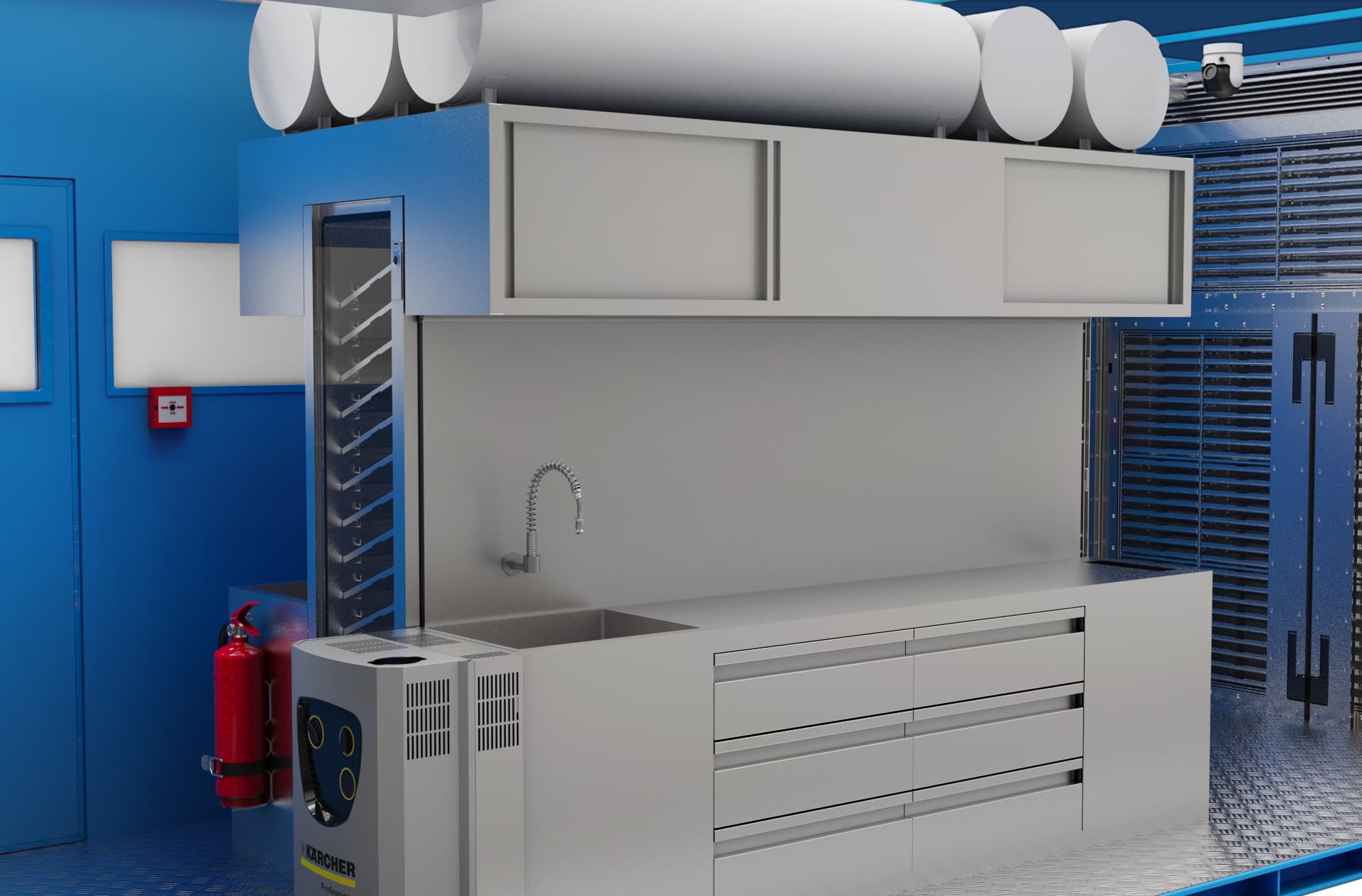

The machine is equipped with everything needed for mass and continuous operation. It includes a tablet washer to clean tablets after each run, a high-pressure cleaner for washing the chambers, and freezing capabilities for all 416 trays of the unit. Additionally, it features a kitchen designed to prepare and package the material efficiently. It comes with extensive maintenance resources, replacement parts, and tools to ensure continuous operation. Equipped with Microsoft's HoloLens 2, the Wave team provides remote assistance for operation and repairs, enhancing support and efficiency.
POWERFUL
The machine can dry up to 2,000 kg of material over 24 hours on its 416 trays, each measuring 40x60 cm, which equates to approximately 10,000 meals per day. Additionally, it has the capability to extract 2,000 kg of water from soil, plants, or similar sources to produce potable water.
TECHNOLOGY
The 40570 is equipped with eight of our most powerful cold traps to facilitate fast and efficient drying. It utilizes two large Edwards screw pumps and Blitzer compressors for freezing. The operation is managed through a Siemens-controlled PLC, which maintains constant communication with our service center via mobile network, Skylink, or satellite network, ensuring optimal performance and immediate support.
SPECIFICATIONS
