WAVE
FD470
Continuous Freeze Dryer
STARTING PRICE
39500€
Extraction Capacity
4 kg/h
Loading Volume
192 liters
Energy
2.5 KW/h

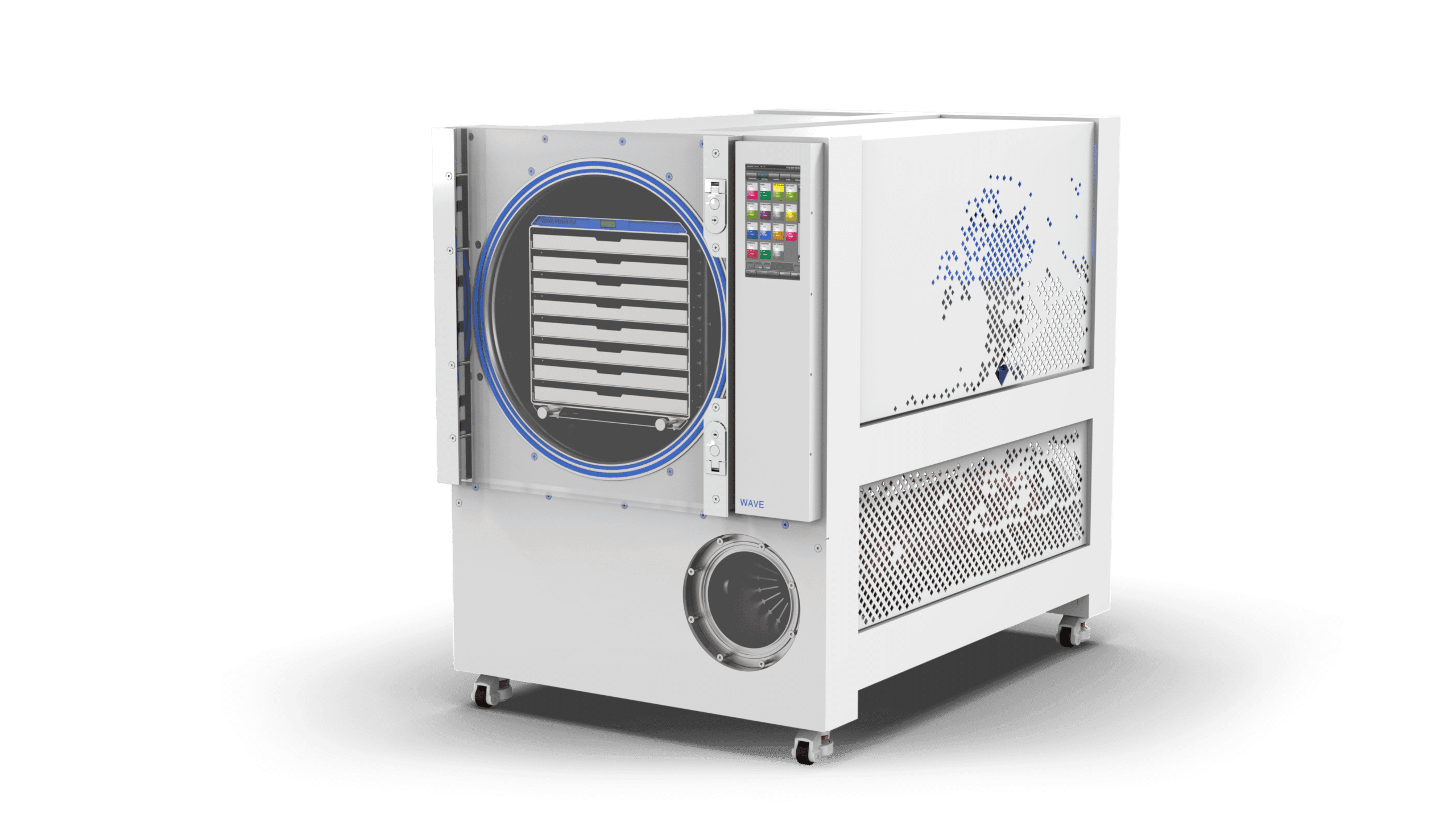

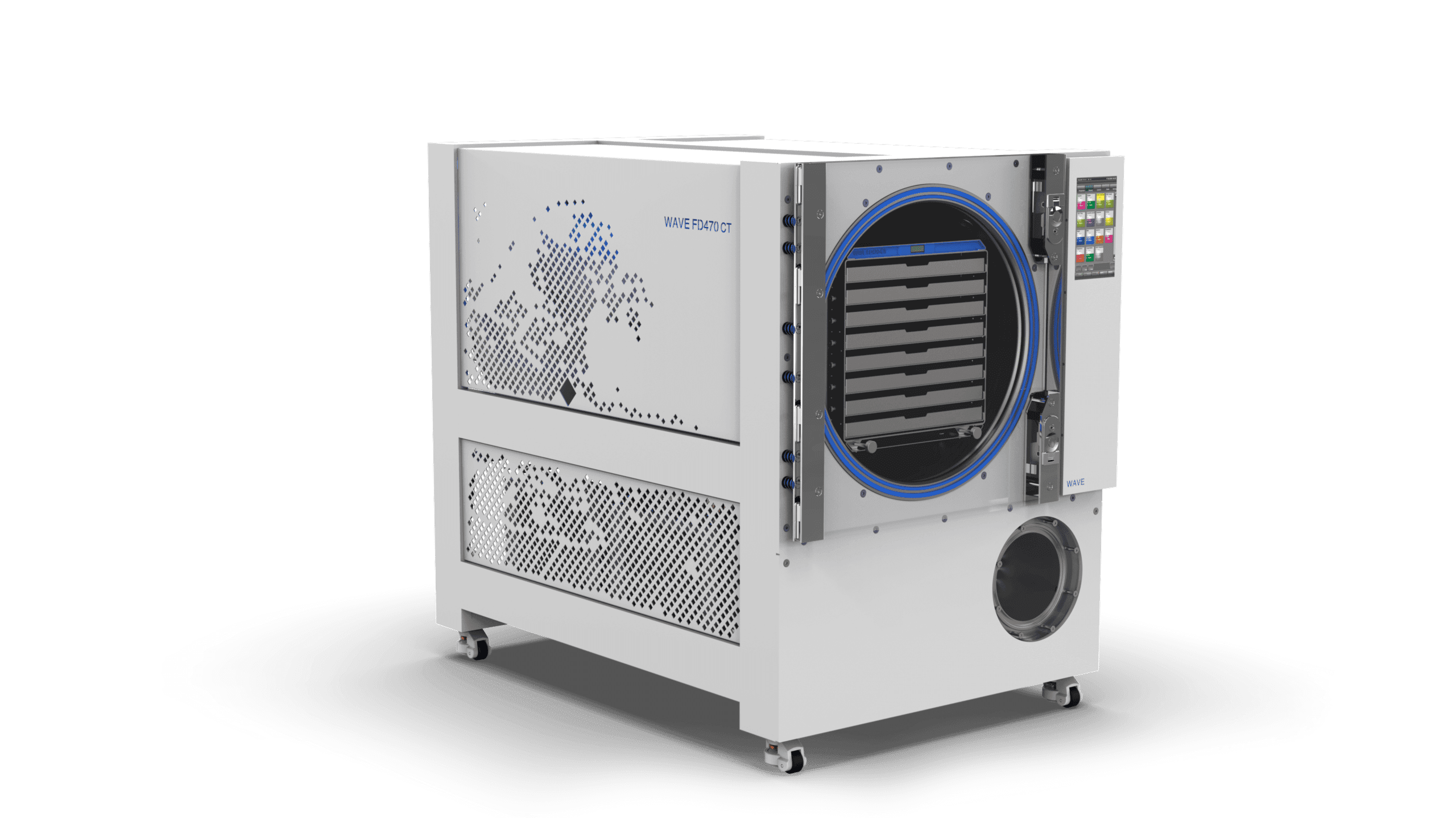

The FD470 is designed for continuous freeze-drying operations. It delivers uninterrupted throughput with fully programmable drying cycles.
WAVE FD470
The FD470 is a unique machine featuring proprietary technology developed by WAVE. It can operate in three distinct modes:
FD440 Mode
Ice is collected directly inside the main chamber, just like in the FD440. This method is fast, highly effective, but slightly less clean since the water is captured in the same space where the material is dried.
Infinity Mode

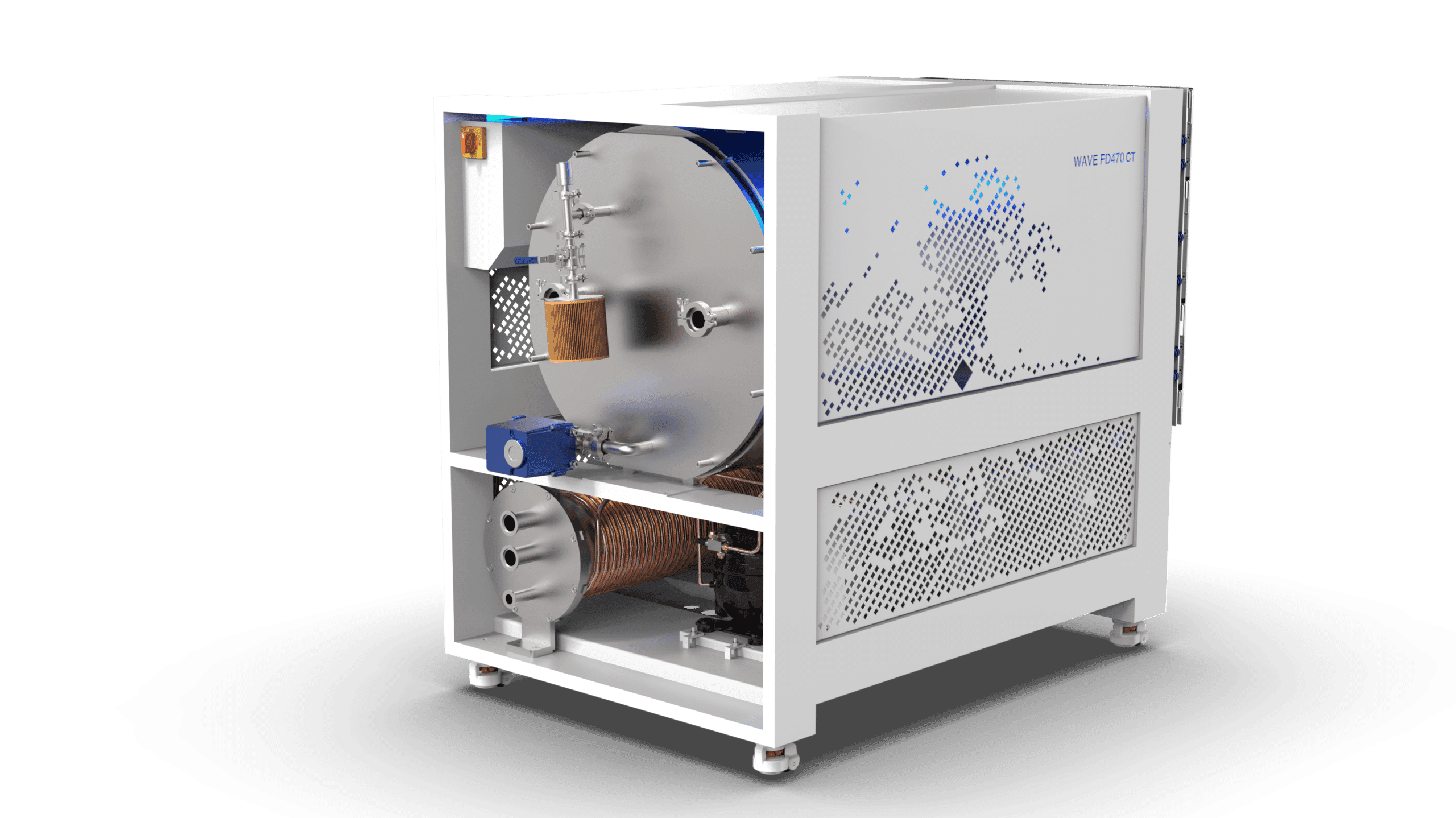

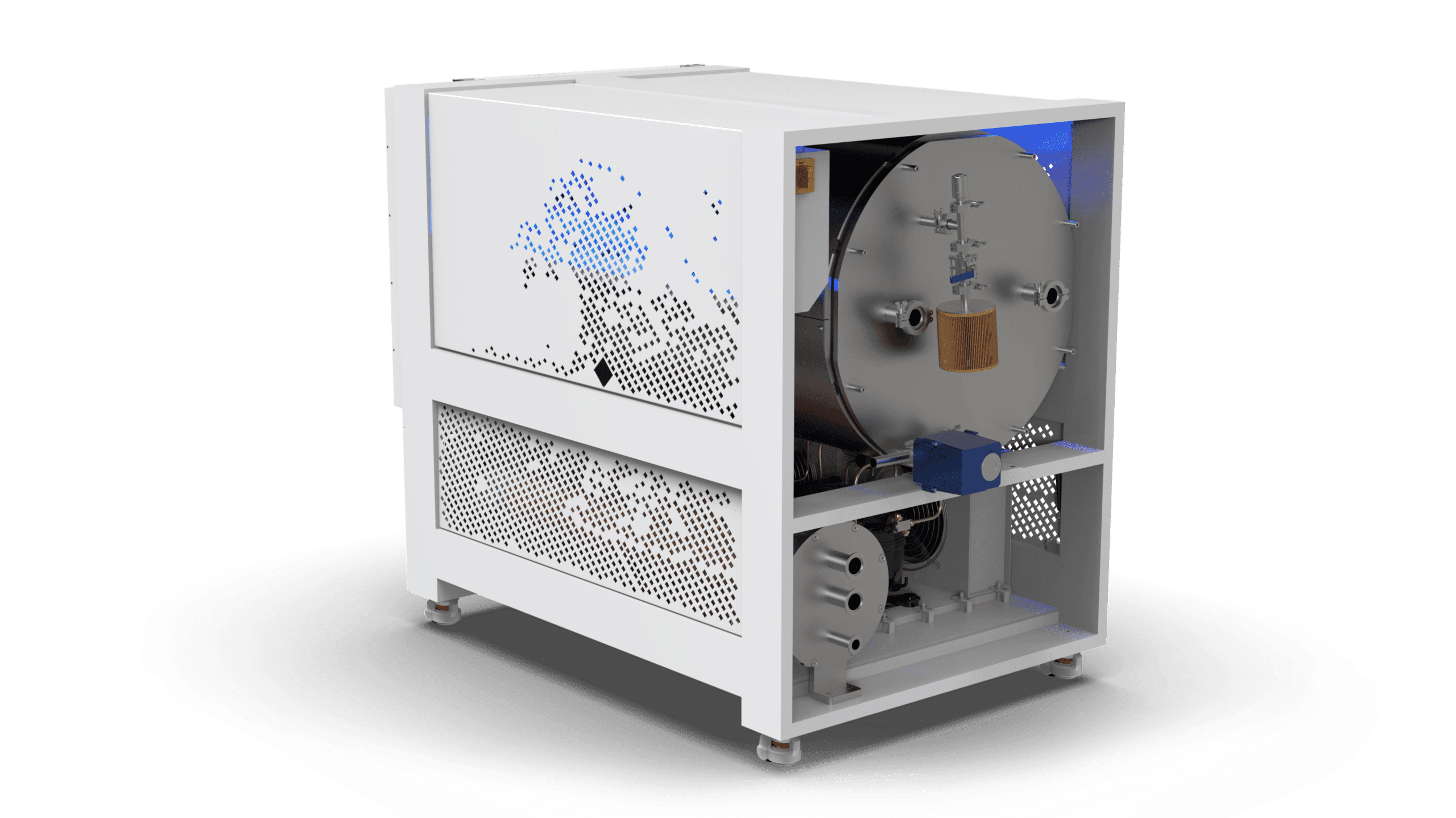

Moisture is collected in an external cold trap at the bottom of the machine, with a capacity of up to 50 kg of ice. Once the trap is full, it automatically defrosts and continues drying. As a result, the main chamber always remains dry, and the process essentially has no capacity limit.
Boost Mode
The process starts by using the bottom cold trap to capture up to 50 kg of ice. Afterwards, the system switches to cooling the main chamber, allowing it to collect an additional 60 kg of ice. In total, up to 110 kg of material can be dried in a single cycle — making this mode ideal for high-moisture products such as coffee, milk, and other liquids.
KEY FEATURES
Continuous freeze-drying process

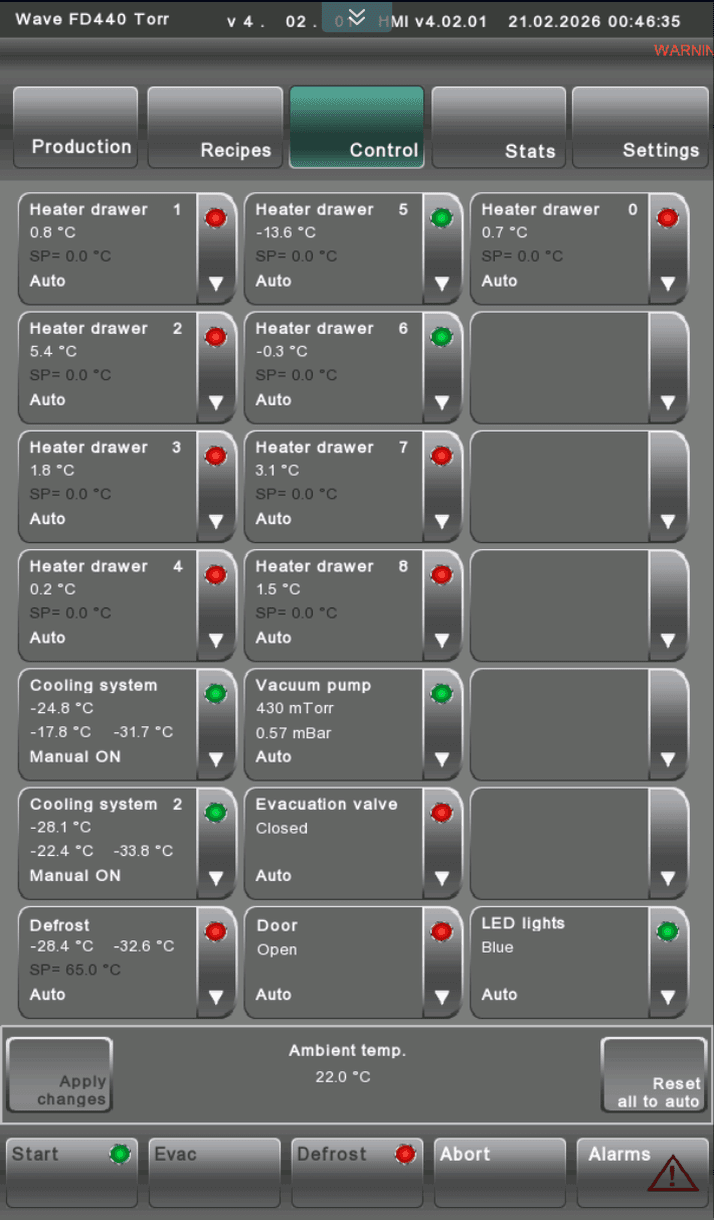

Each shelf individually temperature controlled
IoT remote surveillance
Remote surveillance and assistance through WAVE IoT SIM Network
24h WhatsApp support
ABB safety switches
Worldwide site service
All metal shelves
Configuration

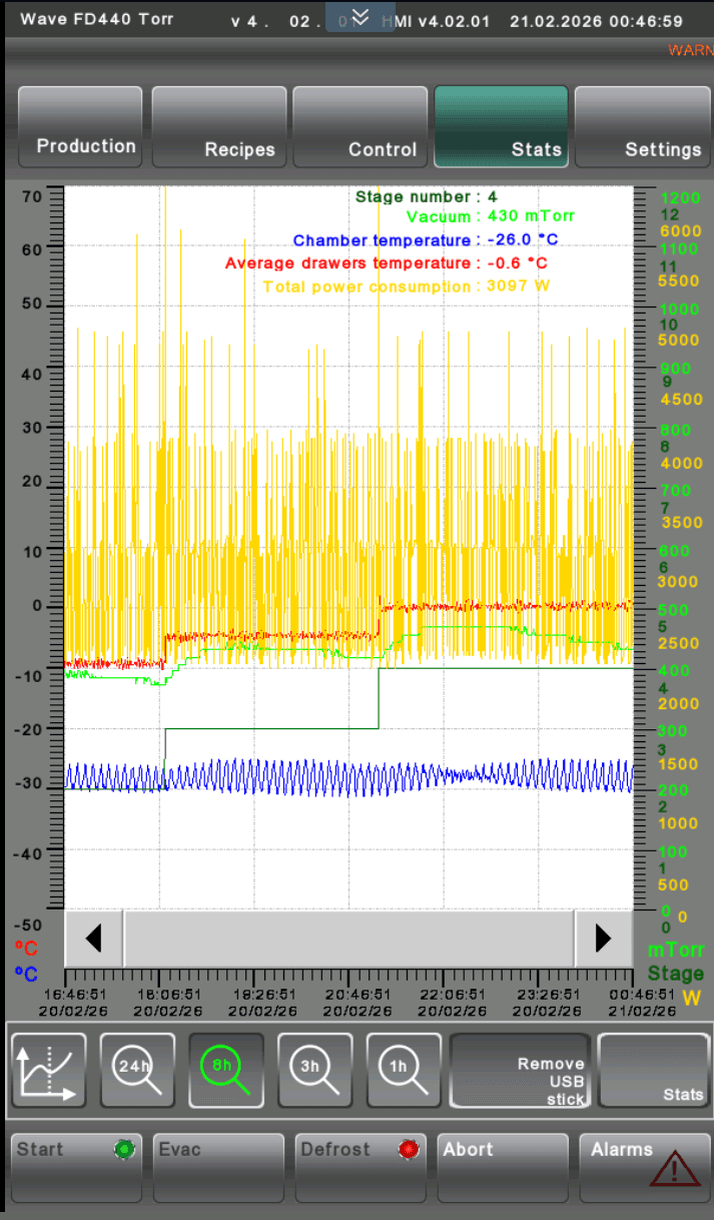

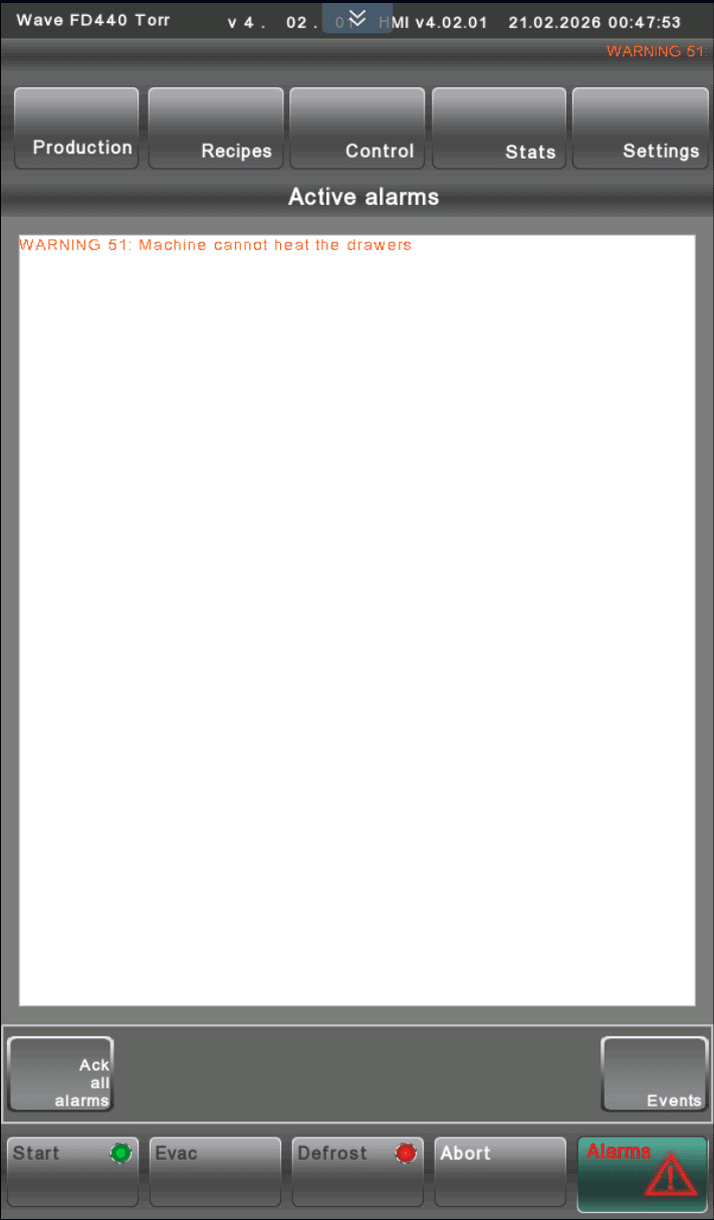

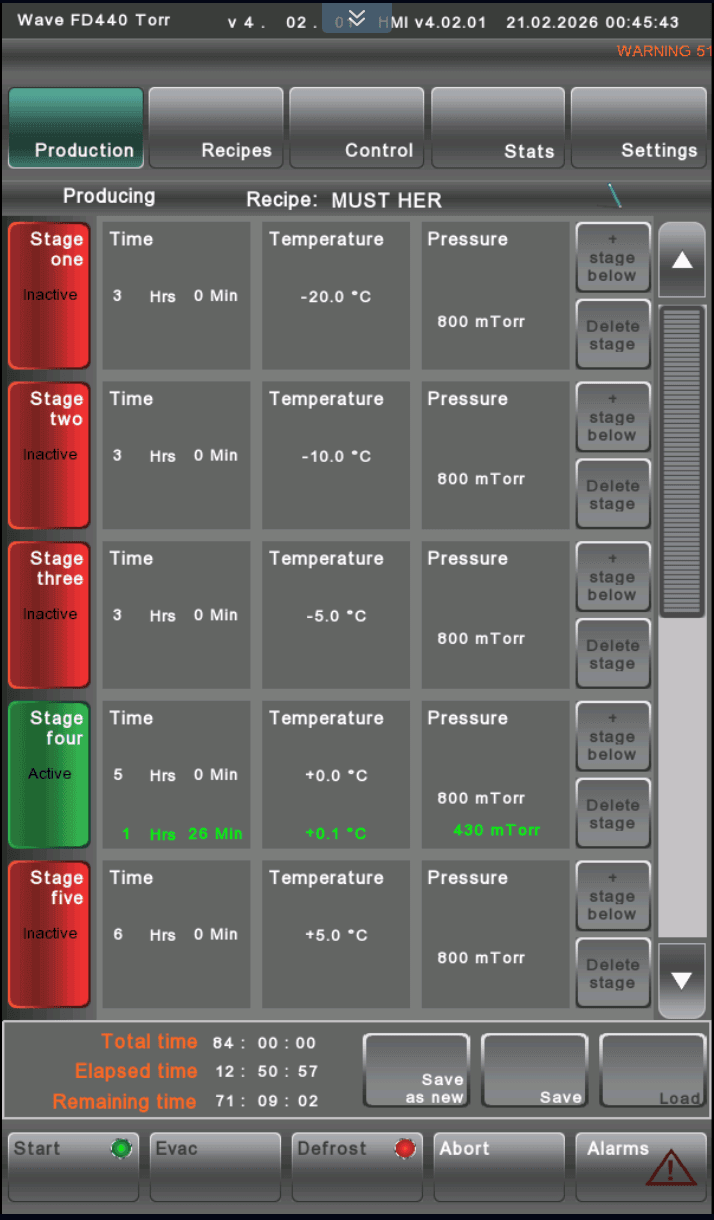

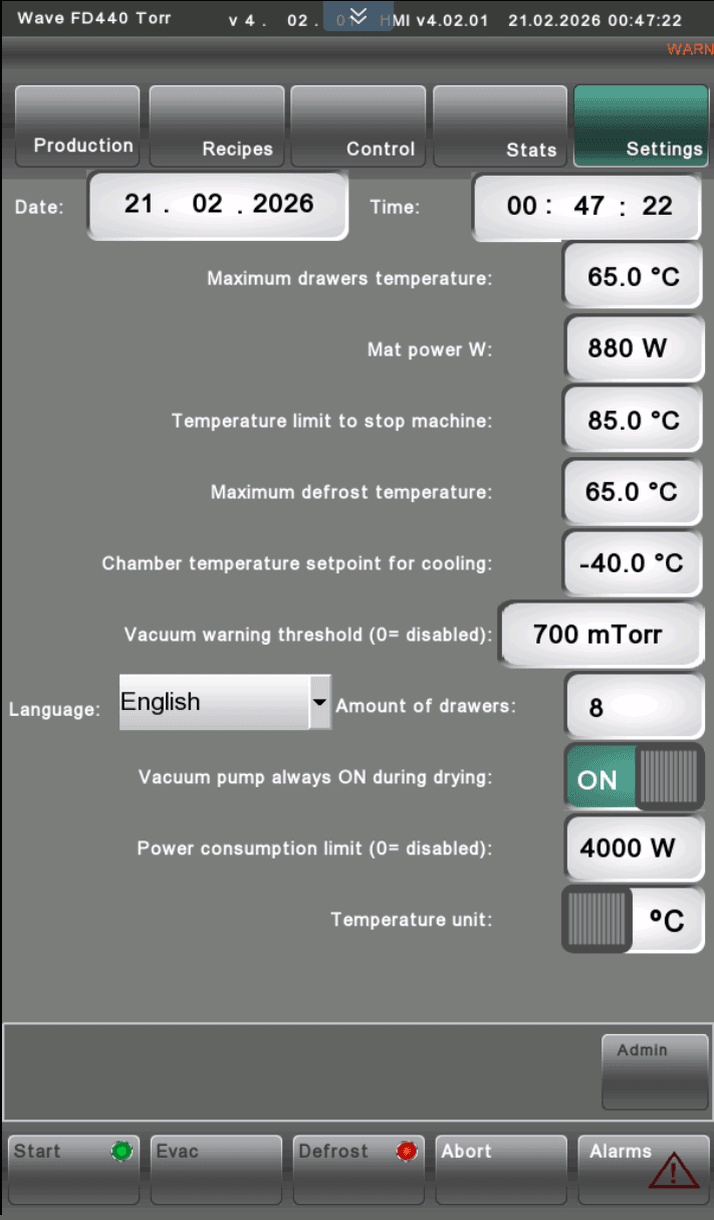

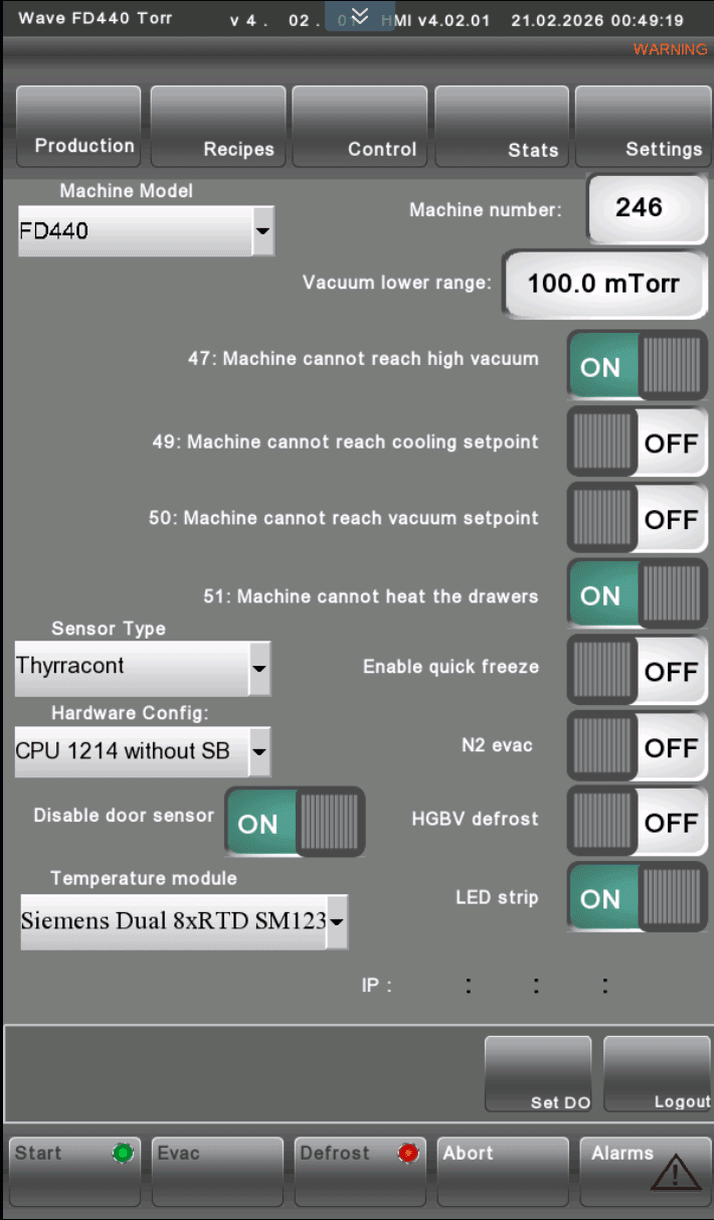

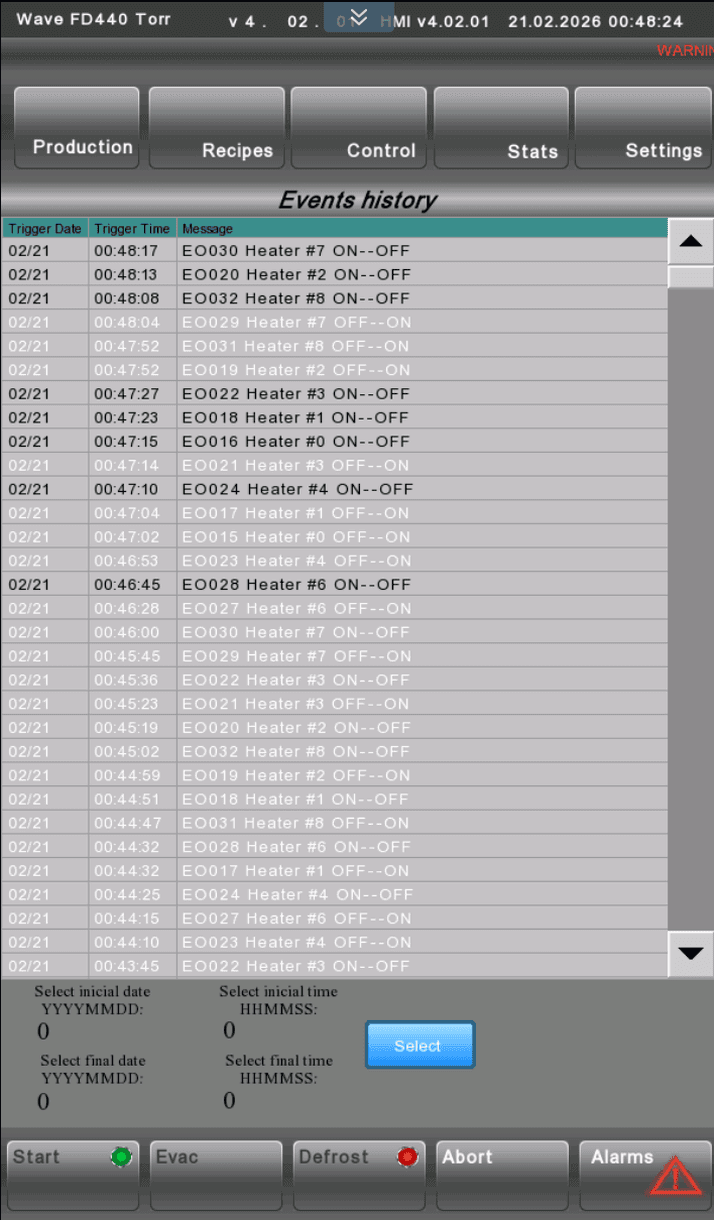

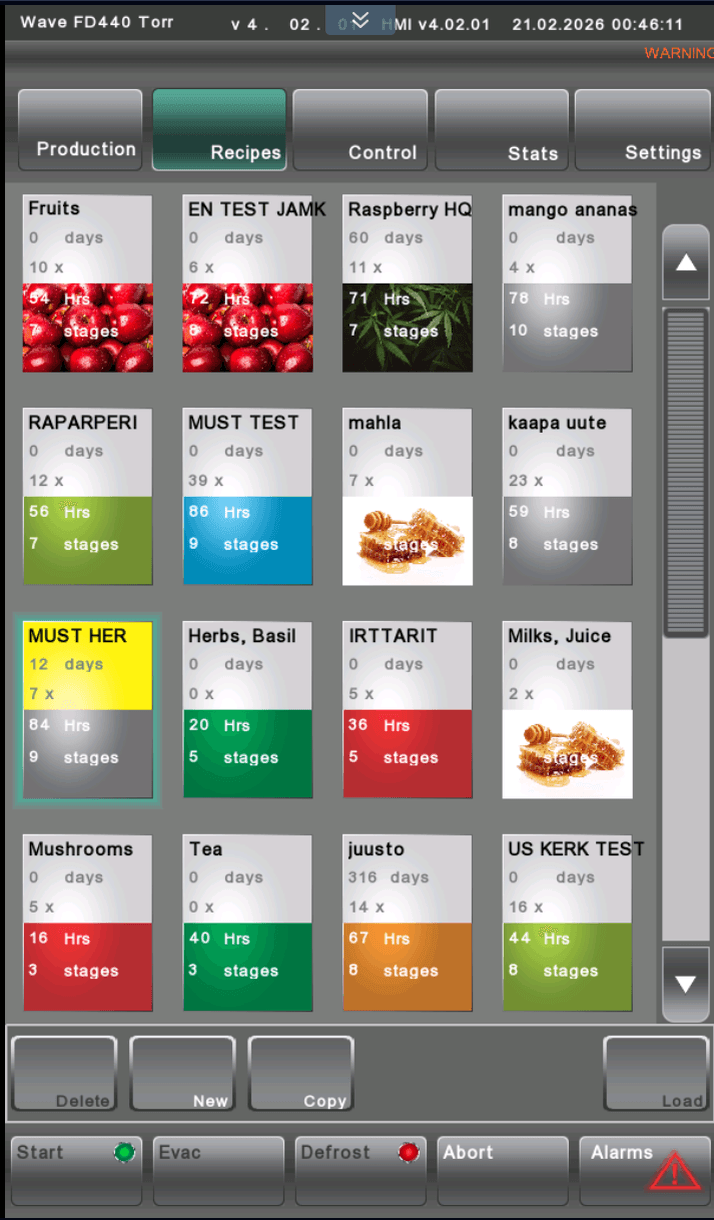

Have a look at the FD470 MENU:
QUALITY
The FD470 uses industrial vacuum technology and has an extruded 7 mm thick vacuum tube. The shutter bodies are available in anodized aluminum or stainless steel. The device is manufactured in our factory in Vienna.
SERVICE
Wave is headquartered in Austria. We supply and support customers throughout Europe. The FD470 is equipped with remote maintenance. Spare parts are always available. We also have a service center in the US which services our US customers.
MODULARITY
The FD470 has a modular design and can be operated with 1 - 12 compartments, which can be individually mounted and controlled. The devices themselves are stackable and can be operated as a cluster. Additional options regarding the surface finish are also available.
COSTS
Our goal is to offer the best price-performance ratio for freeze dryers. The FD470 is available from 39.500,00 EUR net.
CONFIGURATOR
Shipping destination
Select your region to include estimated shipping in the total. Final cost confirmed on the formal offer.
WAVE ships worldwide, excluding sanctioned regions (Russia, Iran, North Korea, Syria, Cuba).
FD470 / Indicative Price
EUR 39,500
Your Configuration Draft
This document updates live as you tick options above and fill in your details on the left. Print it for your records or request a formal offer to receive the binding version from WAVE.
Wave Trockensysteme GmbH - Stiegengasse 11 - 1060 Wien
Your company name and delivery address will appear here after you fill the request form.
Configuration Draft — FD470
Terms of payment immidiately after receipt of invoice.
| Item | Description | Quantity | Unit price | Total price |
|---|---|---|---|---|
| 1. | FD470 1 year guarantee | 1.00 piece | 39,500.00 EUR | 39,500.00 EUR |
| Total net | 39,500.00 EUR | |||
| VAT 0% | 0.00 EUR | |||
| Total gross | 39,500.00 EUR | |||
The offer is valid for 14 days.
*Delivery date: Confirmed on formal offer
Our general terms and conditions apply (http://en.wave.cc/generaltermsandconditions)
The property remains in the possession of the seller until full payment has been made.
Customer is responsible for applicable use tax.
Incoterms 2020: DAP
Worldwide shipping available (excluding sanctioned regions such as Russia, Iran, North Korea, Syria, Cuba).
*Due to Supply-Chain-Disruptions the delivery date might change.
Export delivery, tax-exempt according to § 6 para. 1 no. 1 UstG.
Wave Trockensysteme GmbH
Stiegengasse 11
1060 Wien
Austria
District Court Handelsgericht Wien
FN-Nr. FN 544278 i
VAT.-ID ATU76131758
Tax-No. ATU76131758
CEO Michael Marcovici
Bank Erste Bank
Account no. AT87 2011 1843 3989 4800
BIC GIBAATWWXXX
1/1
SPECIFICATIONS
Lead Time, Spare Parts & Industry Standards
Lead Time
~ 2 months
Approximately 2 months from order confirmation to delivery. Express and super-express production slots available at an extra cost.
Spare Parts
In stock / ~ 2 weeks
All critical components are permanently in stock and ship same-day. Less common parts are procured within roughly 2 weeks.
Standard Industrial Components

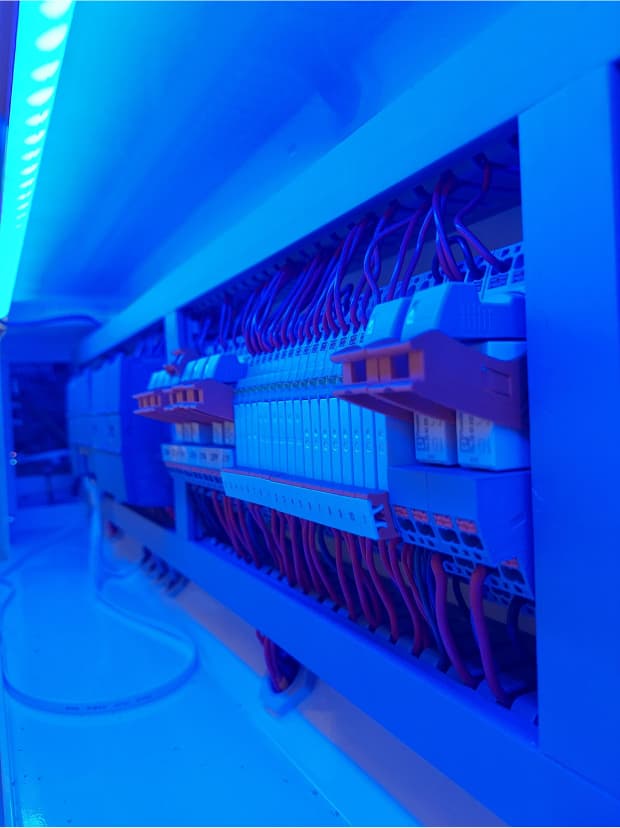

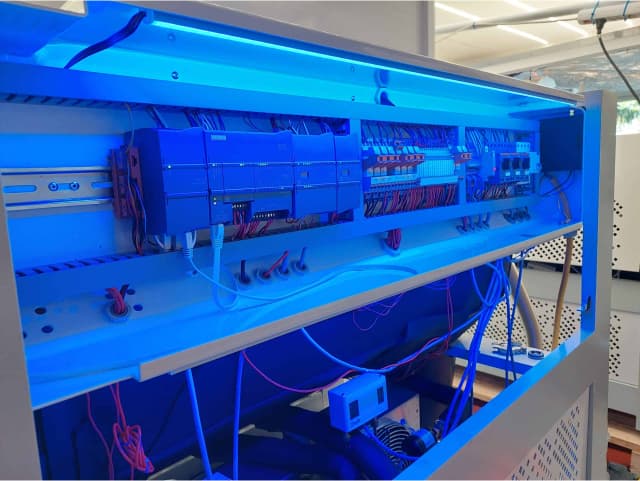

We exclusively use standard industrial components — Siemens (PLC), ABB (safety), Embraco (compressors), Phoenix Contact (controls), Danfoss (refrigeration). No exotic special parts. Repair and replacement available worldwide.
download FD470 technical description
DOWNLOAD DESCRIPTIONRequest a quote
Tell us about your project and we'll get back to you within one business day with pricing and lead time for the WAVE FD470.
Add a vacuum pump for less
1,433 inspected used pumps fit the FD470 — from €301
Busch, Edwards, Leybold & Pfeiffer from the used market — inspected by WAVE, electrically fitted and delivered with a service warranty.
