WAVE
Power Pack
2 × FD440 + Leybold Varodry 200 — twice the throughput
PRICE
79700€
Extraction Capacity
120 kg/24h
Loading Volume
140 kg
Pump
Leybold Varodry 200

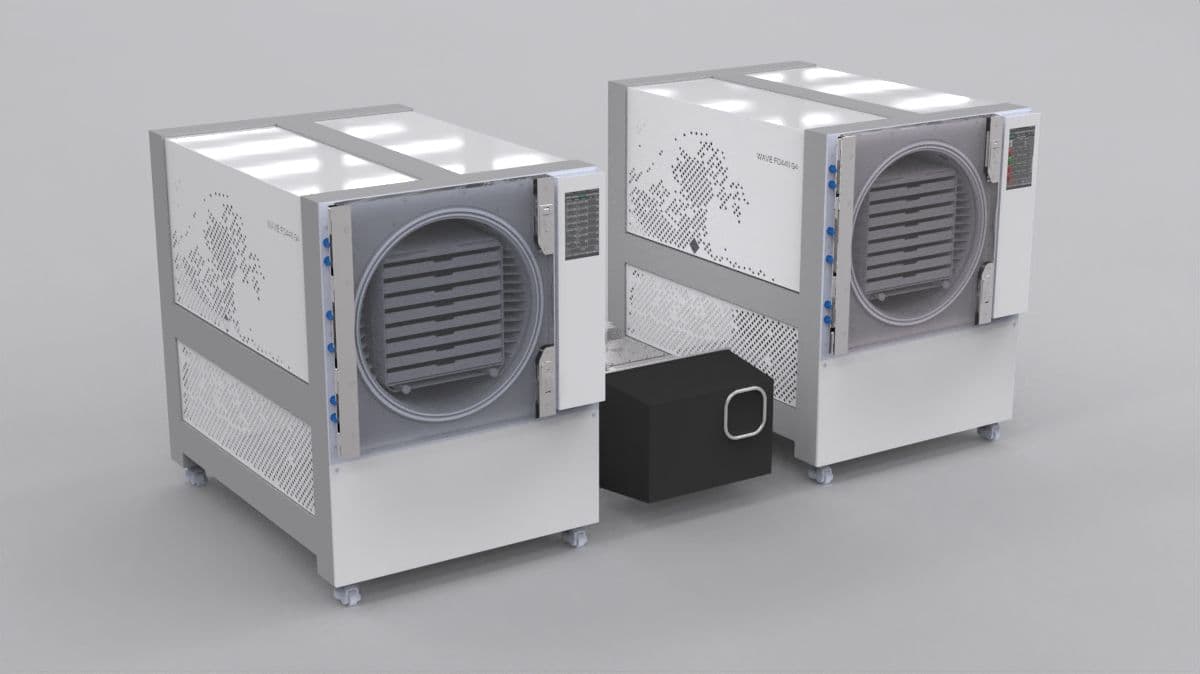

The Power Pack is a high-throughput WAVE bundle: two FD440 commercial freeze dryers running in parallel and driven by a single, extremely powerful Leybold Varodry 200 dry vacuum pump. The Varodry 200 delivers far more pumping speed than the standard pumps shipped with individual FD440 machines, so for products with a maximum drying temperature of 40 °C or higher — most freeze-dried fruits, vegetables, candy, meals, pet food and many pharmaceutical applications — total drying time drops by up to 50 %. You get the chamber capacity of two full FD440s and finish each batch in roughly half the time of a single machine. The result is a serious step-up in daily production output without the footprint, complexity or price tag of a true industrial-scale system. Both machines come with the standard WAVE feature set (Siemens Simatic PLC, IoT remote monitoring, 24h WhatsApp support, individually-controlled shelves, ABB safety switches) and the Varodry 200 is oil-free, low-maintenance, and rated for 24/7 continuous operation.
KEY FEATURES
Two FD440 freeze dryers running in parallel
Leybold Varodry 200 dry vacuum pump — far higher pumping speed than standard
Up to 50 % faster drying for products with max-drying-temp ≥ 40 °C
Double the chamber capacity — twice the trays, twice the daily output
Oil-free pump — clean operation, low maintenance, 24/7 duty cycle
Full WAVE feature set on each machine — IoT, WhatsApp support, ABB safety
TWO FD440S
Two complete FD440 commercial freeze dryers — each with 8 individually-controlled shelves, Siemens Simatic PLC, full programmability and remote monitoring via the WAVE IoT network.
VARODRY 200
A Leybold Varodry 200 m³/h dry vacuum pump replaces the standard pumps of both machines. It is oil-free, virtually maintenance-free, and rated for continuous 24/7 production — and crucially, its pumping speed is so high it cuts drying time dramatically on products that allow ≥ 40 °C shelf temperature.
FASTER CYCLES
For fruits, vegetables, candy, meals, pet food, coffee concentrates and most pharma products with a maximum drying temperature of 40 °C or higher, the Power Pack reduces total cycle time by up to 50 %. Lower-temperature-sensitive products see smaller gains.
COSTS
Available as a complete package from EUR 79,700 net — substantially below the price of stepping up to a single larger industrial-scale machine while delivering comparable daily throughput.
SPECIFICATIONS
Request a quote
Tell us about your project and we'll get back to you within one business day with pricing and lead time for the WAVE Power Pack.
Add a vacuum pump for less
104 inspected used pumps fit the Power Pack — from €347
Busch, Edwards, Leybold & Pfeiffer from the used market — inspected by WAVE, electrically fitted and delivered with a service warranty.
