Complete systems including compressor, compressed-air treatment and nitrogen storage.
WAVE N2 · Nitrogen on site
Nitrogen generators
Four PSA systems with 3, 10, 20 or 40 Nm³/h at 99.9% nitrogen purity. Compressor, compressed-air treatment and nitrogen storage tank form the proposed system configuration.
- Nominal N₂ output
- 3–40 Nm³/h
- N₂ purity
- 99.9%
- Process
- PSA
Your gas demand. The right system.
Compare nominal output at the same purity. WAVE helps match peak demand, the operating profile and connections to your application.

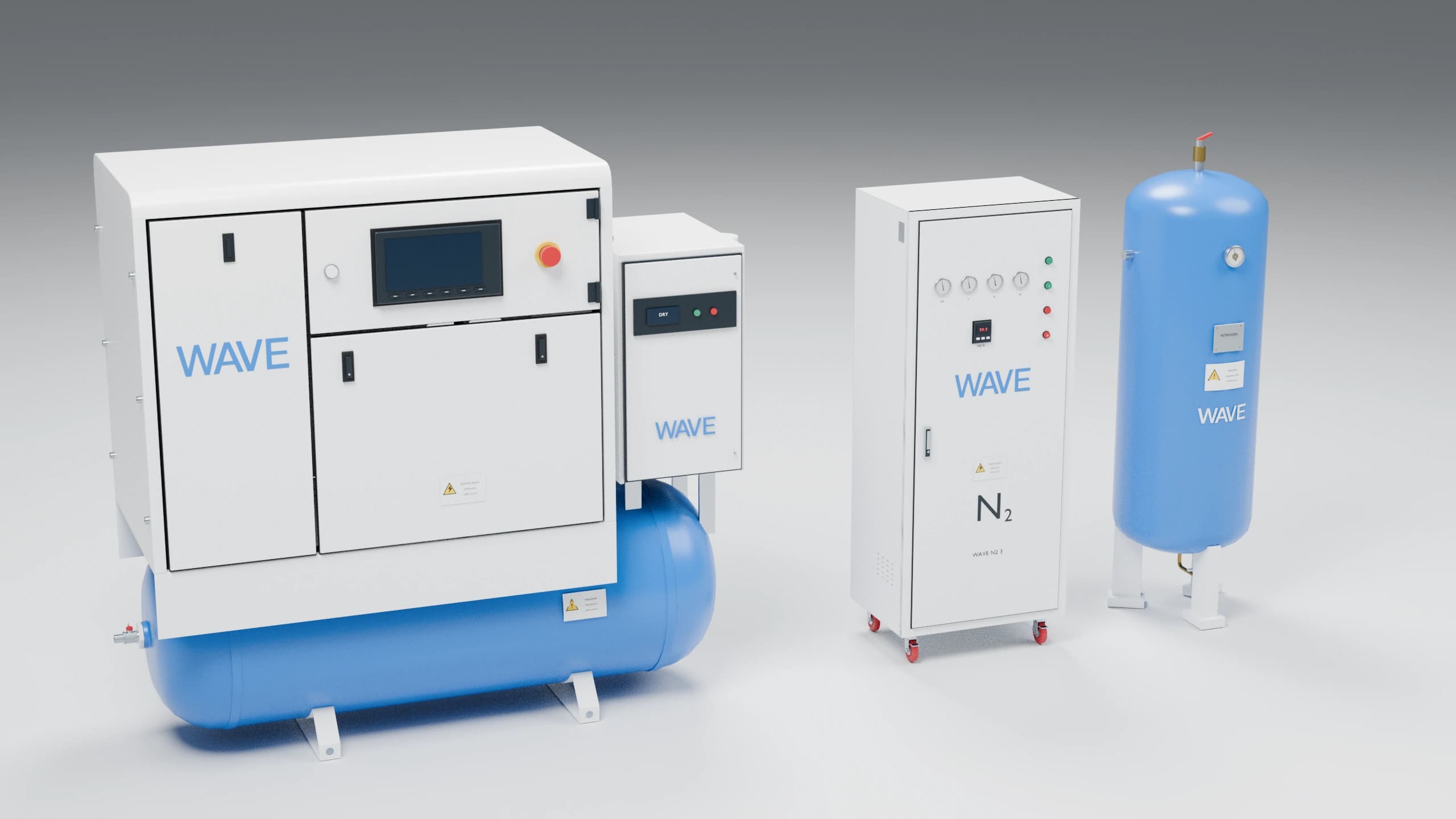

PSA nitrogen system
WAVE N2 3
PSA nitrogen system · 3 Nm³/h at 99.9%
- Nominal N₂ output
- 3 Nm³/h
- PSA outlet pressure
- 0.6 MPa
€11,900
Net price, ex WAVE warehouse in Europe. Customer delivery and commissioning quoted separately.
PSA nitrogen system
WAVE N2 10
PSA nitrogen system · 10 Nm³/h at 99.9%
- Nominal N₂ output
- 10 Nm³/h
- PSA outlet pressure
- 0.6 MPa
€14,900
Net price, ex WAVE warehouse in Europe. Customer delivery and commissioning quoted separately.

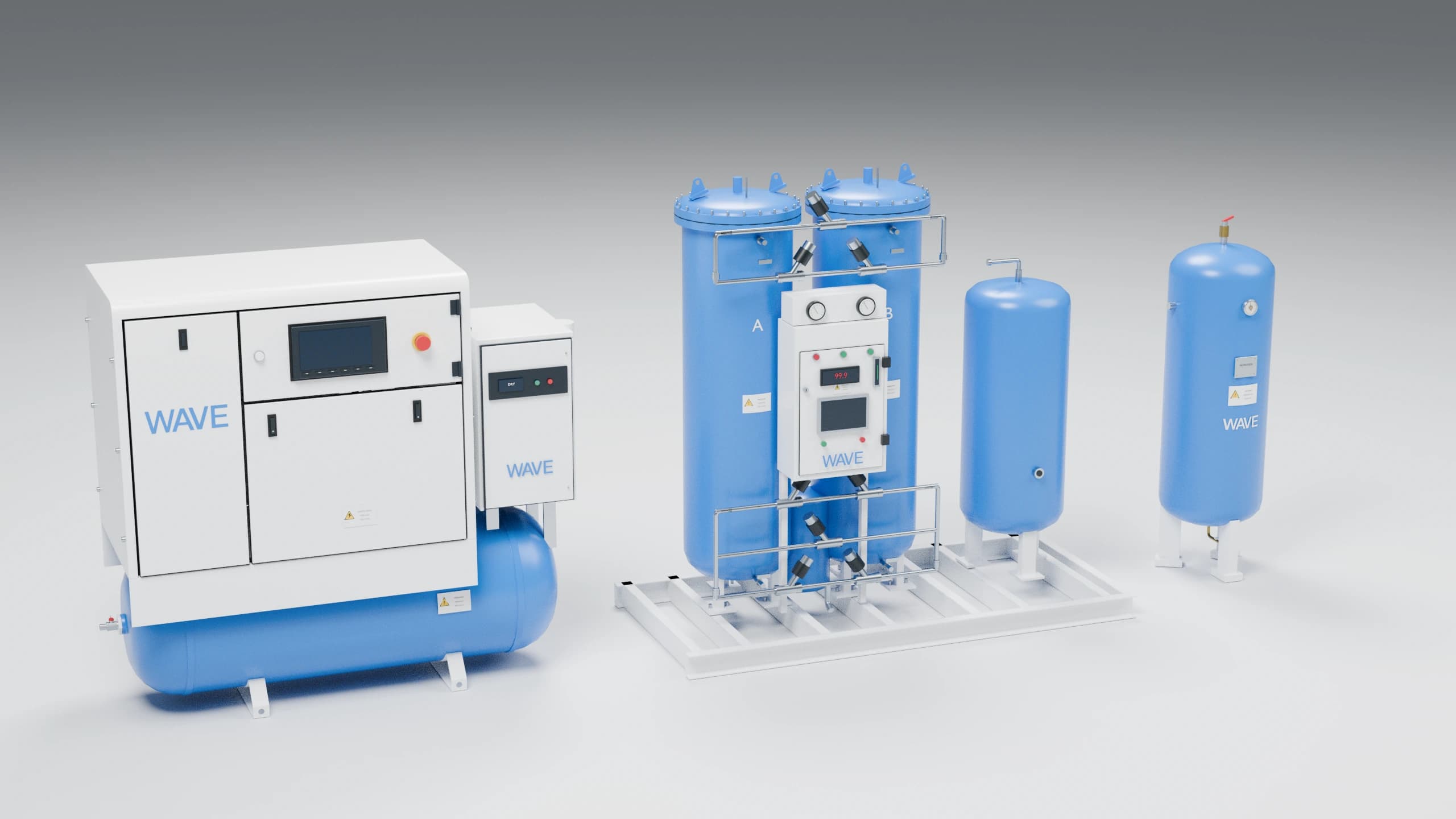

PSA nitrogen system
WAVE N2 20
PSA nitrogen system · 20 Nm³/h at 99.9%
- Nominal N₂ output
- 20 Nm³/h
- PSA outlet pressure
- 0.6 MPa
€18,900
Net price, ex WAVE warehouse in Europe. Customer delivery and commissioning quoted separately.

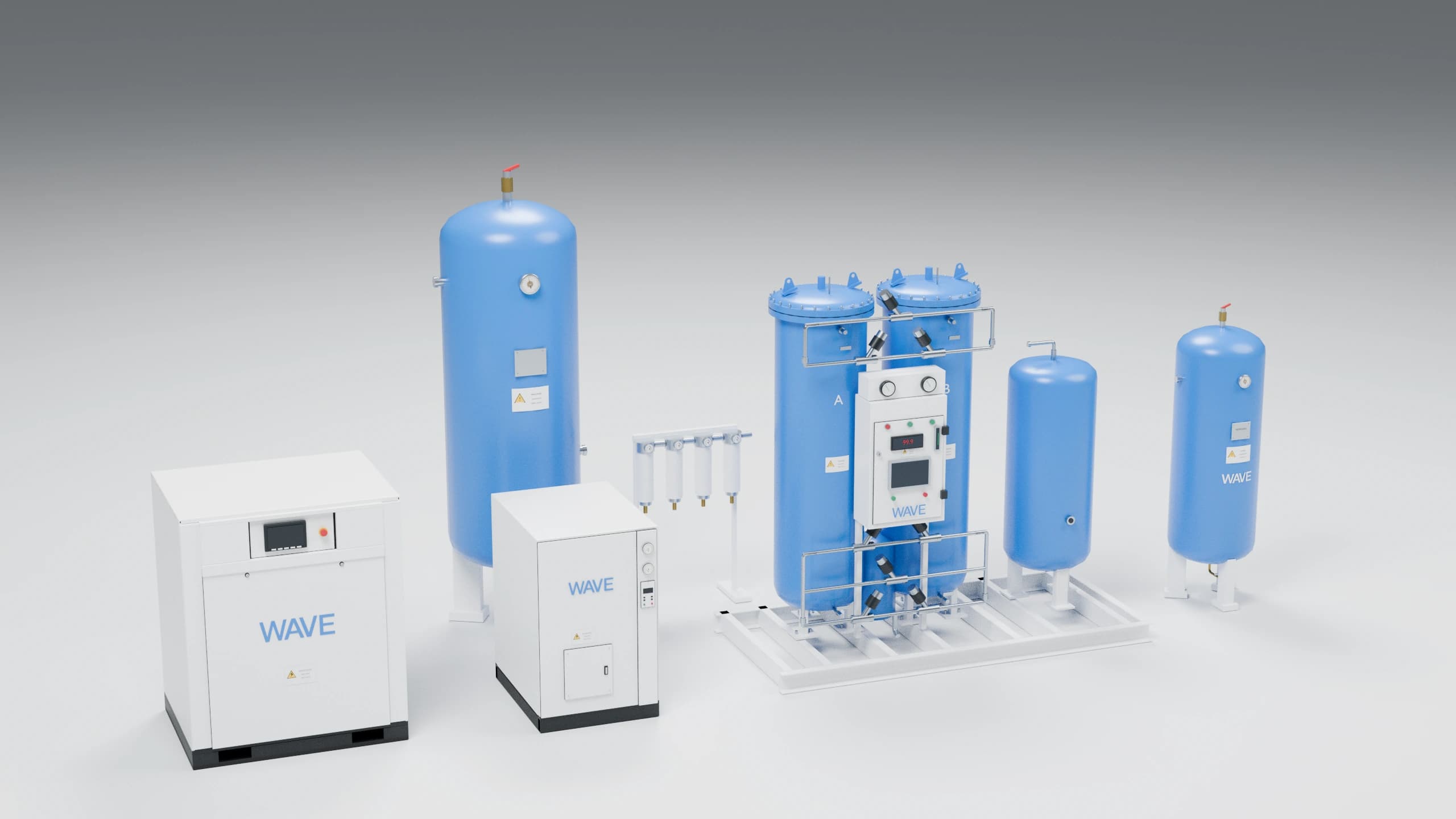

PSA nitrogen system
WAVE N2 40
PSA nitrogen system · 40 Nm³/h at 99.9%
- Nominal N₂ output
- 40 Nm³/h
- PSA outlet pressure
- 0.6 MPa
€24,900
Net price, ex WAVE warehouse in Europe. Customer delivery and commissioning quoted separately.
Images show WAVE design visualizations; layout and dimensions are agreed for the final configuration.
Compare the four systems
| Feature | WAVE N2 3 | WAVE N2 10 | WAVE N2 20 | WAVE N2 40 |
|---|---|---|---|---|
| Net price | €11,900 | €14,900 | €18,900 | €24,900 |
| Nominal N₂ output | 3 Nm³/h | 10 Nm³/h | 20 Nm³/h | 40 Nm³/h |
| N₂ purity | 99.9% | 99.9% | 99.9% | 99.9% |
| PSA outlet pressure | 0.6 MPa | 0.6 MPa | 0.6 MPa | 0.6 MPa |
| Compressed-air station | Four-in-one | Four-in-one | Four-in-one | Separate components |
| Air receiver | 380 L | 380 L | 380 L | 1,000 L |
| Compressor air delivery | 1.1 m³/min | 1.1 m³/min | 1.5 m³/min | 3.5 m³/min |
| Dryer and filter capacity | 1.5 m³/min | 1.5 m³/min | 1.5 m³/min | 3.8 m³/min |
| Nitrogen storage tank | 300 L | 300 L | 300 L | 300 L |
Nominal outputs follow the technical proposal. Reference conditions for Nm³/h and the final system configuration are defined in the quotation. Electrical component ratings on the product pages do not state total system energy consumption.
