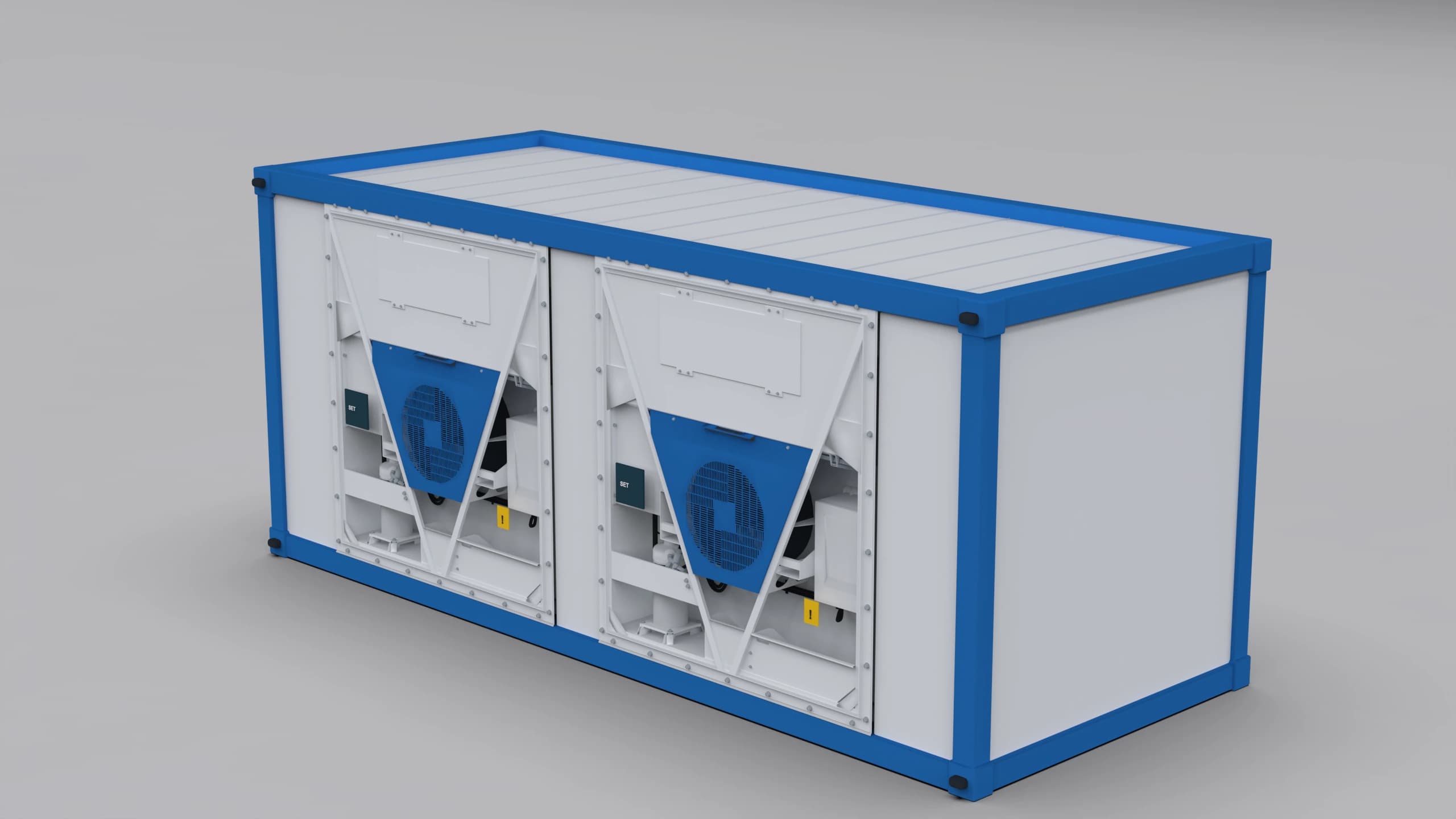

BIG WINTER BLAST 20 - 20-foot blast freezer container · Front container cargo doors

WAVE design visualization · configurable layout

New model

WAVE

BIG WINTER BLAST 20

20-foot blast freezer container · Front container cargo doors

SPECIFICATIONSDownload Tech SpecsWatch 360° video

Share page

Open link

You can also select and copy this link, then paste it into Safari or Chrome.

STARTING PRICE

€35,760

Provisional guide price, excluding VAT and transport. Final pricing depends on the specified configuration.

Units in this design

2

Container format

20 ft

Total compressor power

14.6 kW

WAVE BIG WINTER BLAST 20 is a configurable blast freezer container for batch freezing. The 20-foot design combines 2 side-mounted refrigeration units with front container cargo doors for loading. Its insulated container layout provides a dedicated freezing area at your production or logistics site. WAVE plans the system around your product and loading process. Target temperature, throughput and freezing time are sized for your application and specified in your individual quotation.

GET QUOTE

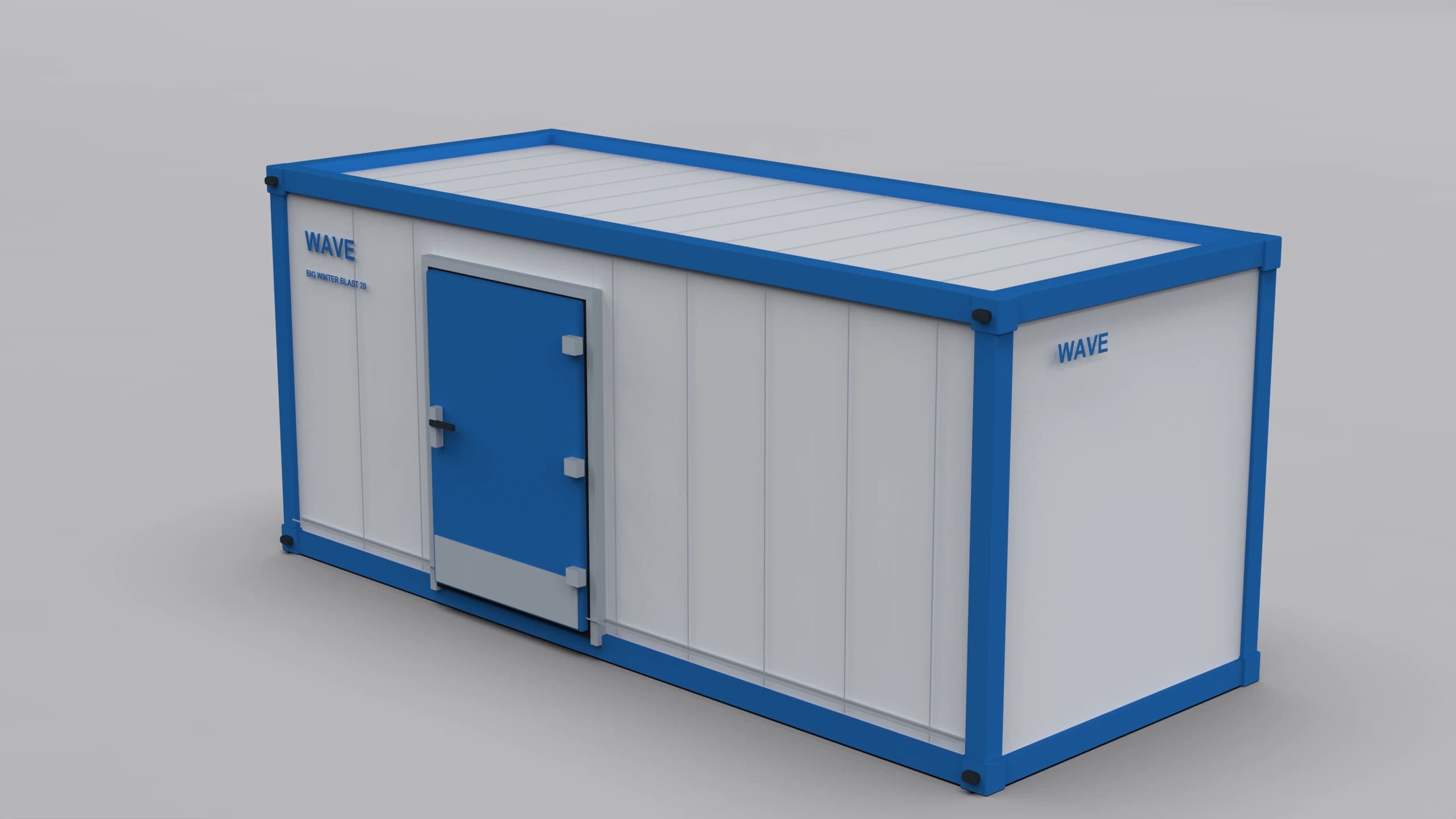

WAVE design visualization · configurable layout · access
WAVE design visualization · configurable layout · access

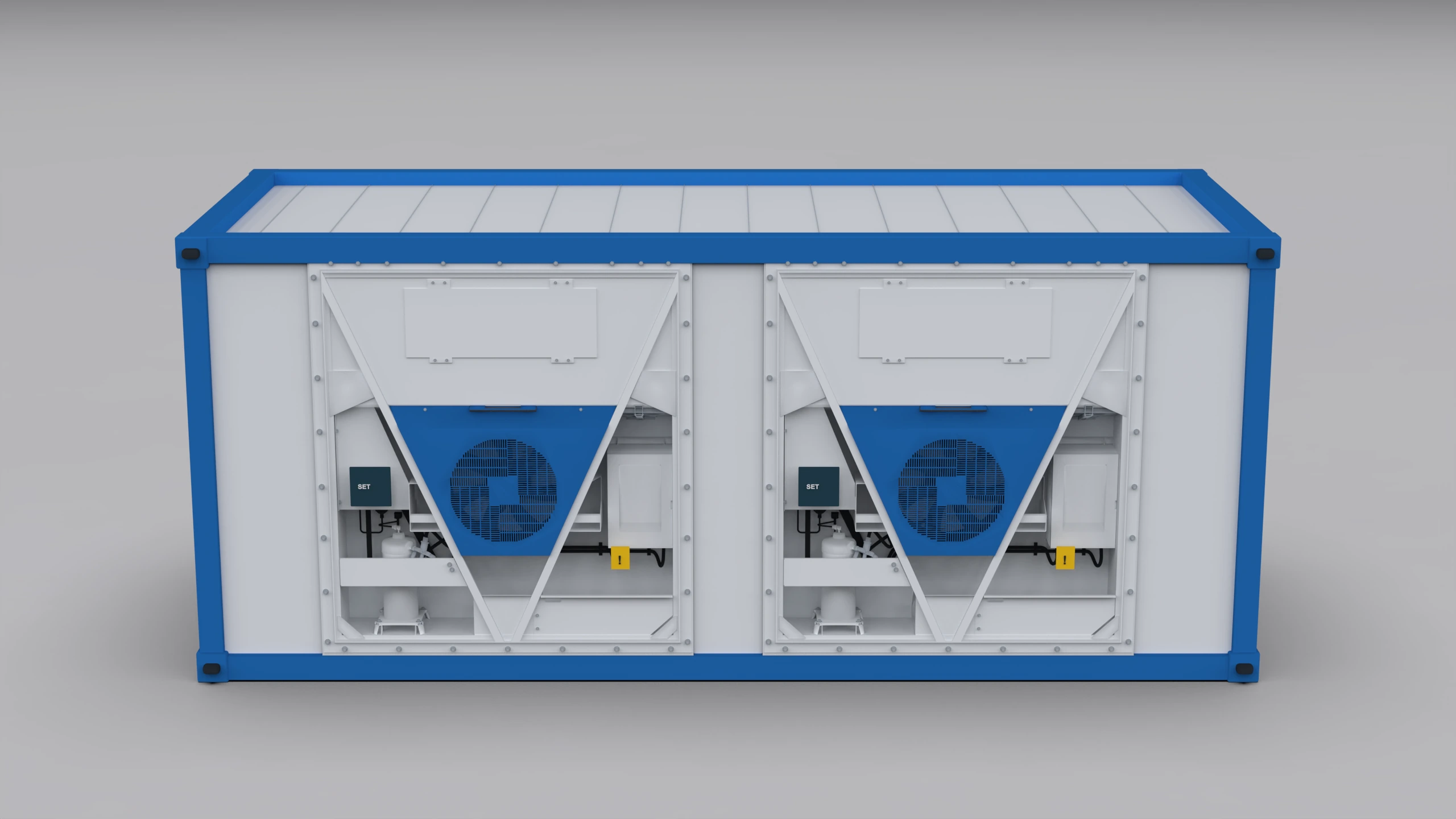

WAVE design visualization · configurable layout · refrigeration side
WAVE design visualization · configurable layout · refrigeration side
Reference photo · digitally adapted to WAVE colours · two refrigeration units
Reference photo · digitally adapted to WAVE colours · two refrigeration units
Reference photo · digitally adapted to WAVE colours · single-door access
Reference photo · digitally adapted to WAVE colours · single-door access

KEY FEATURES

Application-specific blast freezing

2 units · 14.6 kW compressor power

Front container cargo doors

20 ft container format

Sized for your batch

Planning with WAVE

360° KeyShot orbit

Share video

Open link

You can also select and copy this link, then paste it into Safari or Chrome.

WAVE design visualization · configurable layout

WAVE BIG WINTER BLAST 20 · Equipment features

  • 20 FOOT. Front container cargo doors
  • 2 REFRIGERATION UNITS. 7.3 kW per compressor · 14.6 kW total compressor power
  • 14.6 kW COMPRESSOR POWER. 2 × 7.3 kW
BUILT AROUND YOUR FREEZING PROCESS

BUILT AROUND YOUR FREEZING PROCESS

System sizing considers the product, incoming temperature and target core temperature. Batch weight and cycle time determine the refrigeration requirement.

2 UNITS IN THIS DESIGN

2 UNITS IN THIS DESIGN

Each compressor has 7.3 kW of power. 2 × 7.3 kW gives 14.6 kW total compressor power. Side-mounted refrigeration units keep the access clear. Refrigeration capacity and refrigerant are selected for the operating conditions.

FRONT CONTAINER CARGO DOORS

FRONT CONTAINER CARGO DOORS

The standard container cargo doors are retained at the front end. Loading, trolleys, handling clearances and any dock connection are coordinated with your site.

AIRFLOW AND LOADING

AIRFLOW AND LOADING

Packaging, pallets and trolleys affect airflow. The loading arrangement therefore forms part of the technical design.

SITE AND CONNECTIONS

SITE AND CONNECTIONS

WAVE coordinates the footprint, service clearances, electrical supply, condensate drainage and commissioning with your site.

FROM DESIGN TO QUOTATION

FROM DESIGN TO QUOTATION

Your individual quotation defines equipment, performance, scope of supply, delivery schedule, warranty and service.

SPECIFICATIONS

Application
Batch blast freezing
Planned format
20 ft
Container body L × W × H (planning size)
6,058 × 2,438 × 2,591 mm
Refrigeration units in design
2 · side mounted
Access in design
Front container cargo doors
Power per compressor
7.3 kW
Total compressor power
14.6 kW (2 × 7.3 kW)
Refrigeration / cycle time / throughput
Sized for product, batch and target core temperature
Internal L × W × H (reference configuration)
5,766 × 1,885 × 2,273 mm
Door opening W × H (reference configuration)
1,840 × 2,201 mm; door variant and final dimensions are specified for the project.
Power supply / refrigerant
Specified with equipment selection
Site footprint
Allow additional space for equipment, access and service

download BIG WINTER BLAST 20 tech specs

DOWNLOAD TECH SPECS

Planning information for the illustrated configuration. Confirmed performance specifications are supplied with your individual quotation.

Request a quote

To size the system, tell us the product, weight per batch, incoming and target core temperatures, required cycle time, packaging and loading layout, location and available electrical supply. We use these to specify refrigeration capacity, airflow and equipment.
