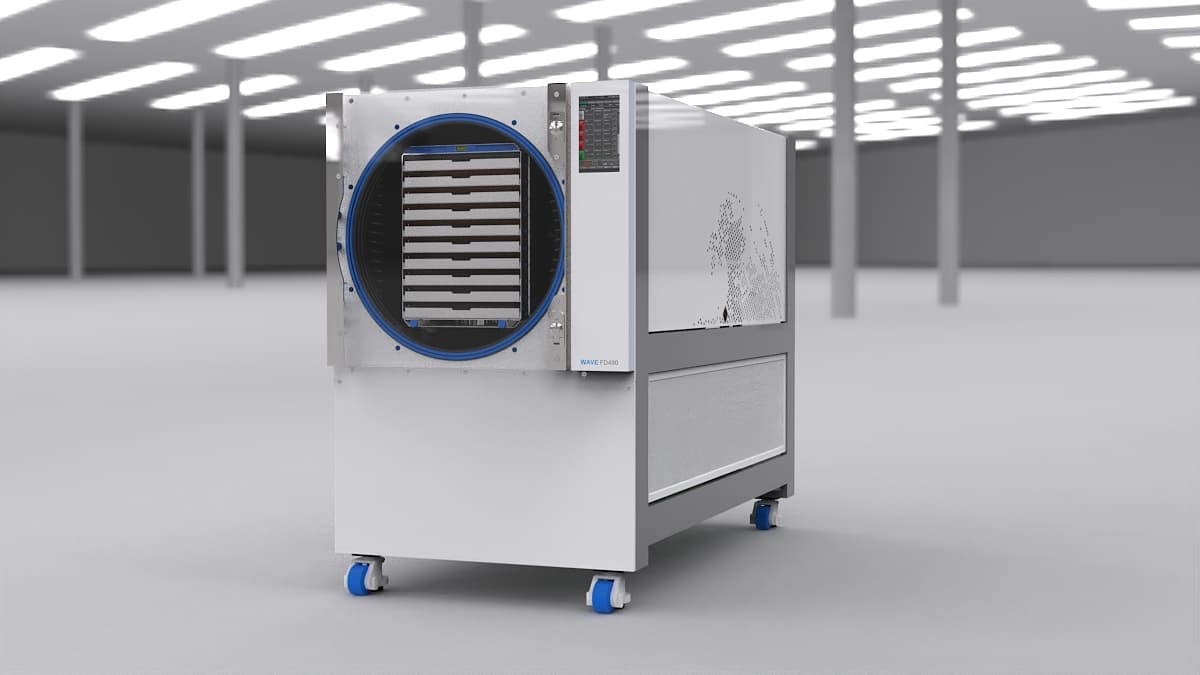

FD490 - High-Capacity Commercial Freeze Dryer

New model

WAVE

FD490

Name: WAVE FD490
Brand: WAVE
SKU: fd490
Price: 59500 EUR
Availability: InStock

High-Capacity Commercial Freeze Dryer

SPECIFICATIONS Download Tech Specs

STARTING PRICE

59500€

Extraction Capacity

170 kg/cycle

Loading Volume

30 trays

Energy

12 kW

The WAVE FD490 scales the proven FD440 MAX platform to 30 trays, 7.20 m² total tray area and 170 kg extraction capacity per cycle.

GET QUOTE

KEY FEATURES

Front-loading circular process chamber

30 trays in 600 x 400 mm format

Integrated colour touchscreen

7.20 m² total tray area

24h WAVE support network

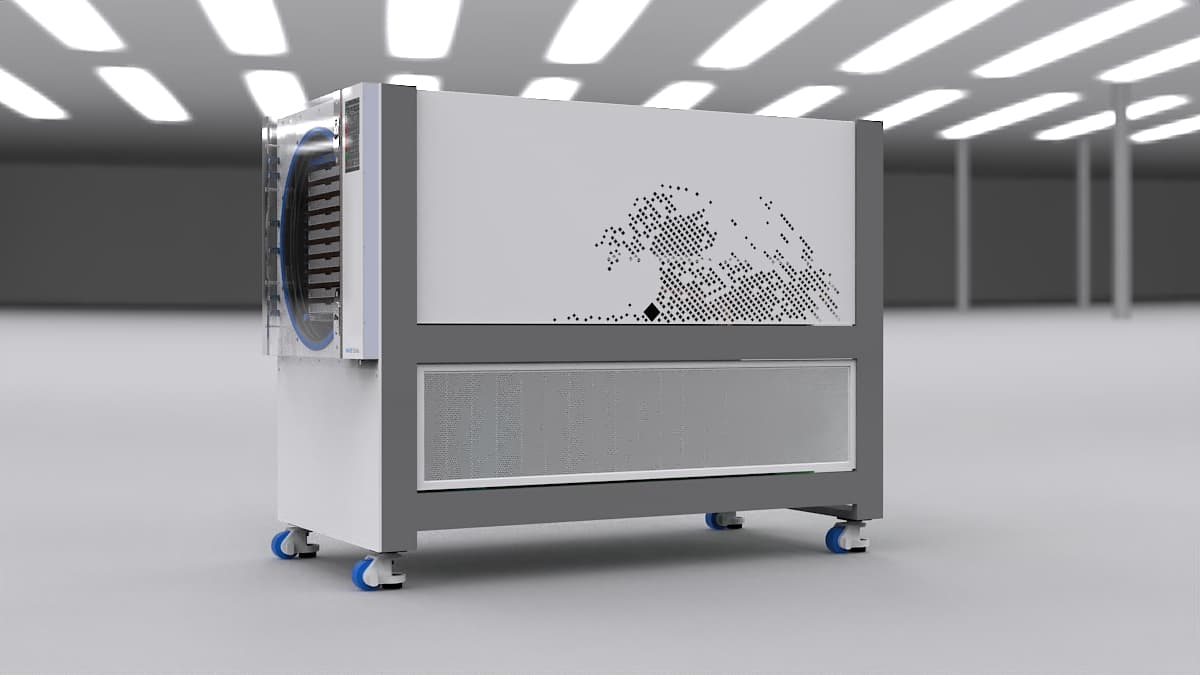

Service-oriented side enclosure

Worldwide commissioning and service

170 kg extraction capacity per cycle

QUALITY

The FD490 uses the proven FD440 MAX chamber, vacuum, temperature and control platform as its engineering basis.

SERVICE

Direct service access, remote support from Vienna and worldwide on-site service.

LOADING

Thirty 600 x 400 mm trays provide 7.20 m² of usable product area.

PERFORMANCE

170 kg extraction capacity per cycle with 12 kW average power consumption.

SPECIFICATIONS

Specification Basis

FD440 MAX platform with FD490 capacity overrides

Max Ice Extraction

170 kg per cycle

Tray Loading Capacity

30 trays

Tray Size

600 x 400 x 20 mm

Total Tray Area (30 trays)

7.20 m²

Average Power Consumption

12 kW

Chamber Type

Extruded Aluminium Tube, 7 mm wall

Chamber Diameter

720 mm

Chamber Form

Tube

Chamber Finish

Hard Anodized 25µ inside and outside

Shelf Material

Anodized Aluminium or Stainless Steel

Shelf Temperature Range

-55°C to +80°C

Temperature Sensors

PT100 Class A, ± 1°C precision

Vacuum Pump

Two-Stage Rotary Vane or Scroll Pump (60m³+)

Pump Down Time

< 30 minutes to 0.1 mbar

Final Vacuum

< 0.07 mbar (10 mTorr max)

Leak Rate

10⁻⁴ mTorr/sec

Vacuum Sensor

Pirani

Heating Power

Up to 500 Watt per tray

Heating System

Electrical Heating Mat

Max Heating Mat Temperature

+80°C

Heating Time (-30 to +20°C)

3 minutes (empty)

Cooldown (+20 to -30°C unloaded)

20 minutes

Defrost Time

50 minutes (ice removable earlier)

Refrigeration Compressors

1 x Bitzer 8.5 kW

Refrigeration Power

10.5 kW at -40°C

Refrigerant

R449A

Min Cooling Temperature

-60°C

Door Material

50 mm Acrylic

Door Gasket

Silicone Rubber

Door Opening Angle

170° (hinge on left)

Door Lock

Manual, Mechanical Closing

Control System

Siemens Simatic PLC or INTERKEY BRAIN

Monitor

Kinco HD Color Touchscreen

Connectivity

CAT6 Ethernet / IoT WAVE Network

Dimensions (L x W x H)

2000 x 1100 x 1700 mm

Total Weight

850 Kg

Noise Level

< 65 dB at 1 m

Max Ambient Temperature

< 23°C

Electricity EU Version

400V / 3 / N

Electricity US Version

240V / 1 / N (120V / 2 / N)

Max Electrical Load

16.5 kW

download FD490 tech specs

DOWNLOAD TECH SPECS

Request a quote

Tell us about your project and we'll get back to you within one business day with pricing and lead time for the WAVE FD490.
