BIG WINTER 20
20 ft refrigerated container
PRICE
€19,750
Net price, excluding VAT and transport.
Cooling temperature
down to −30 °C
Container format
20 ft
3 phases · 50/60 Hz
380/460 V
The WAVE BIG WINTER 20 is a 20 ft refrigerated container for temperature-controlled storage down to −30 °C. Thermo King Magnum Plus with an MP5000 controller manages refrigeration. Temperature and event logging, local alarms, automatic defrost and pretrip inspection of the empty container (PTI) support daily operation. The container body and refrigeration unit are brand new from 2026 production. The unit uses R452A with a 4 kg charge and a 380/460 V, three-phase, 50/60 Hz supply. The 20-foot configuration has an external length of 6,058 mm. Aluminium T-bar flooring is included. WAVE supports installation and commissioning planning.
GET QUOTE
KEY FEATURES
Cooling down to −30 °C
Magnum Plus · MP5000
Aluminium T-bar flooring
20 ft
380/460 V · 50/60 Hz
New container and unit · 2026

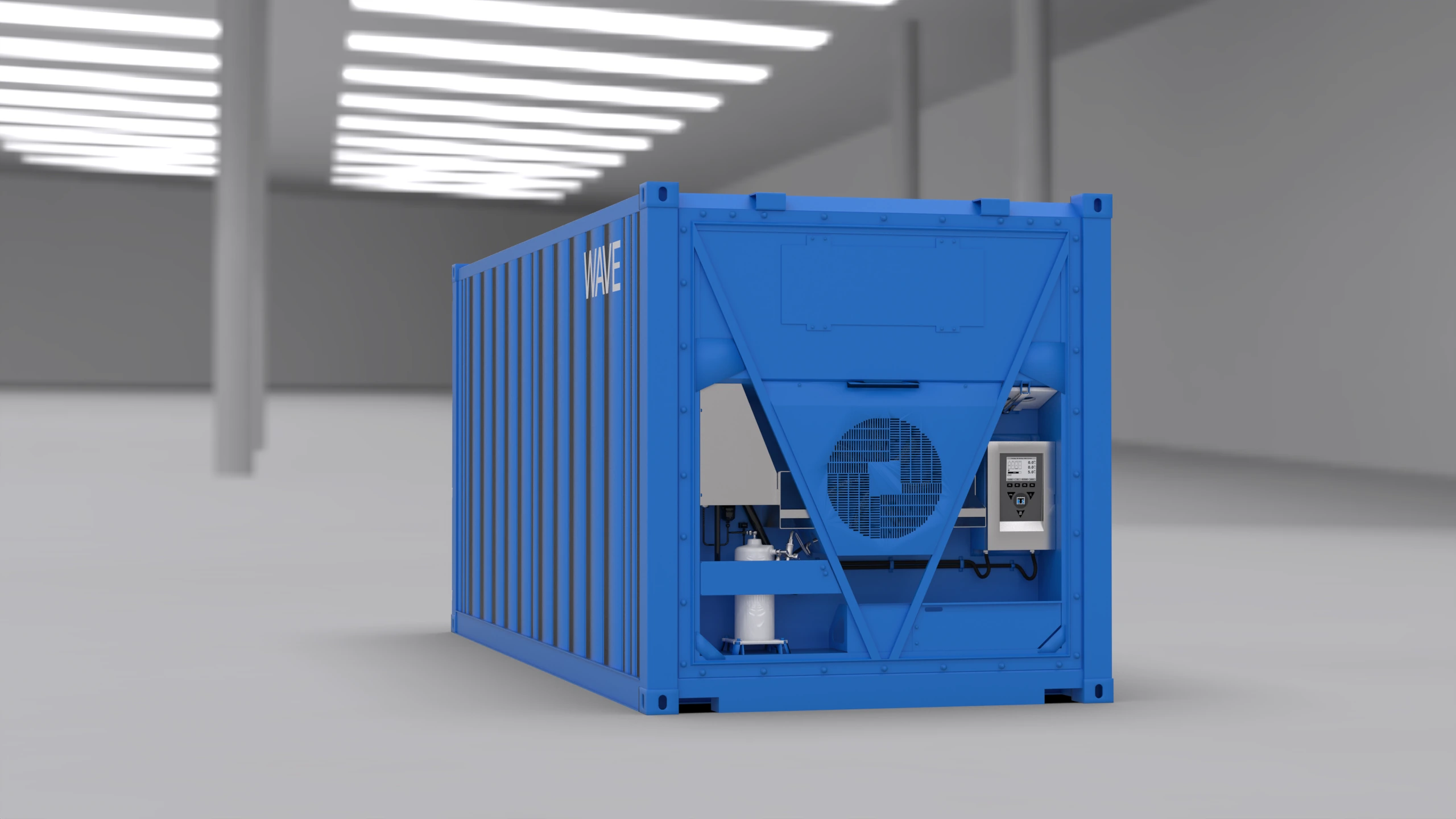

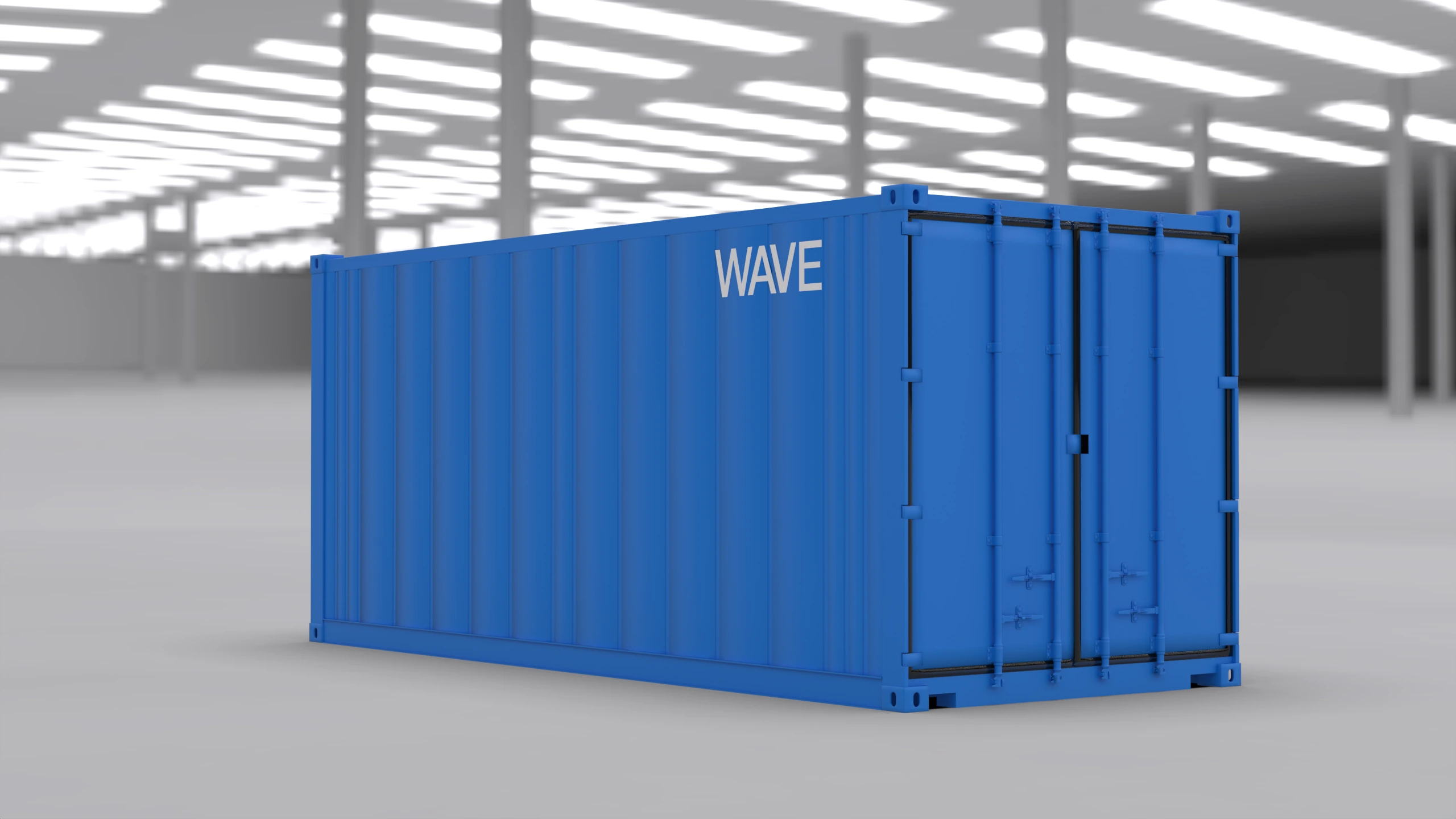

WAVE BIG WINTER 20 · 360° orbit
A 360° view of WAVE BIG WINTER 20: 20 ft, cooling down to −30 °C, Thermo King Magnum Plus with MP5000 and aluminium T-bar flooring. 380/460 V, three phases, 50/60 Hz.
COOLING DOWN TO −30 °C
Temperature-controlled storage with Thermo King Magnum Plus. The MP5000 controller manages refrigeration and displays operating temperatures.
TEMPERATURE HISTORY AND ALARMS
The MP5000 data logger records temperatures and events. Local alarms support operating checks and troubleshooting.
DEFROST AND PRETRIP INSPECTION
Automatic defrost is a controller function. Pretrip inspection (PTI) checks the refrigeration unit before operation with the container empty.
CONTAINER FORMAT
20 ft with external dimensions of 6,058 × 2,438 × 2,591 mm (L × W × H). The standard-height configuration is 2,591 mm high.
ALUMINIUM T-BAR FLOORING
The container is equipped with aluminium T-bar flooring. The T-bars form the floor structure of the refrigerated space.
WARRANTY AND WAVE SERVICE
1-year warranty on the container body, 1 year on the refrigeration unit and 3 years on the compressor. Your quotation sets out the warranty terms and service coverage. WAVE supports installation and commissioning planning.
SPECIFICATIONS
download BIG WINTER 20 tech specs
DOWNLOAD TECH SPECSRequest a quote
Tell us the location and ambient temperature, required storage temperature, product type, incoming temperature, daily loading and available electrical supply. WAVE will prepare your quotation and help plan installation and commissioning.
