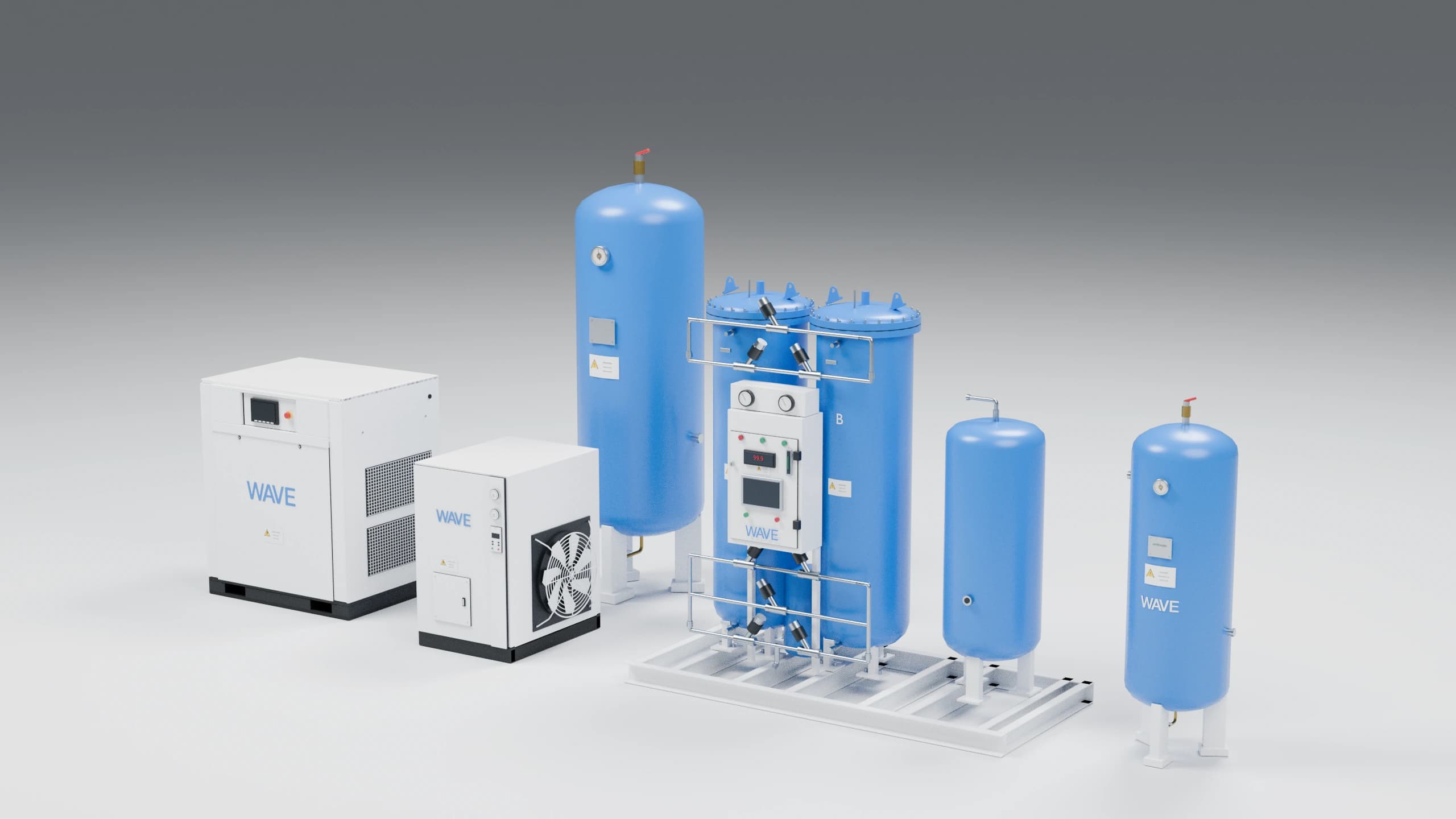

WAVE design visualization · Layout and dimensions may differ from the final configuration.
WAVE
N2 40
PSA nitrogen system · 40 Nm³/h at 99.9%
PRICE
€24,900
Net price, ex WAVE warehouse in Europe. Customer delivery and commissioning quoted separately.
Nominal N₂ output
40 Nm³/h
N₂ purity
99.9%
PSA outlet pressure
0.6 MPa
The WAVE N2 40 produces nitrogen using pressure swing adsorption (PSA). The proposed configuration delivers 40 Nm³/h at 99.9% purity and a PSA outlet pressure of 0.6 MPa. The system includes a screw compressor, air receiver, refrigerated air dryer, filters, PSA unit and a 300 L nitrogen storage tank. Air treatment uses separate components with a 1,000 L air receiver. WAVE helps size the system for your gas demand and plan installation.
GET QUOTE
KEY FEATURES
40 Nm³/h nominal nitrogen output
99.9% nitrogen purity
0.6 MPa PSA outlet pressure
System includes screw compressor
Compressed-air drying and filtration
300 L nitrogen storage tank
NITROGEN FROM COMPRESSED AIR

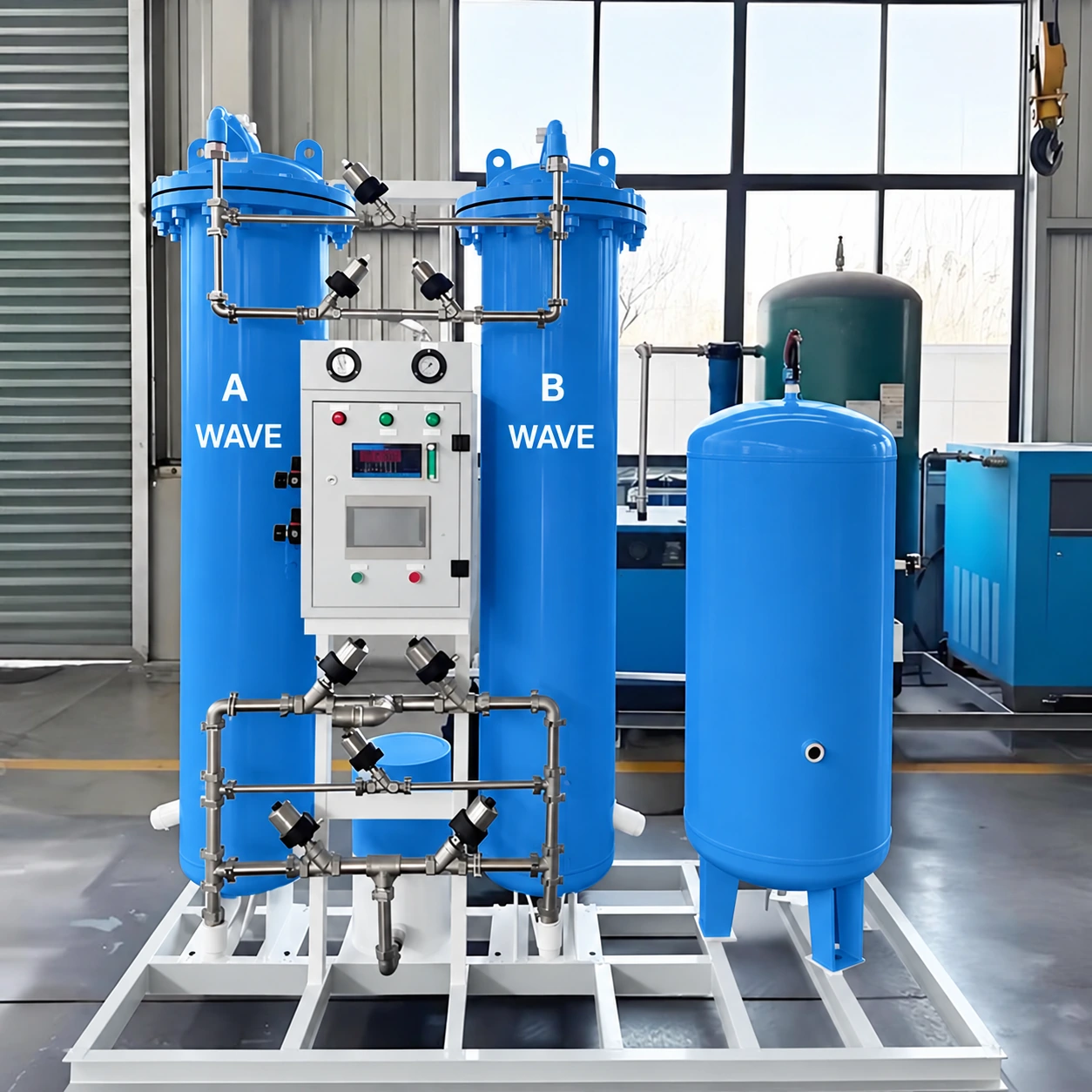

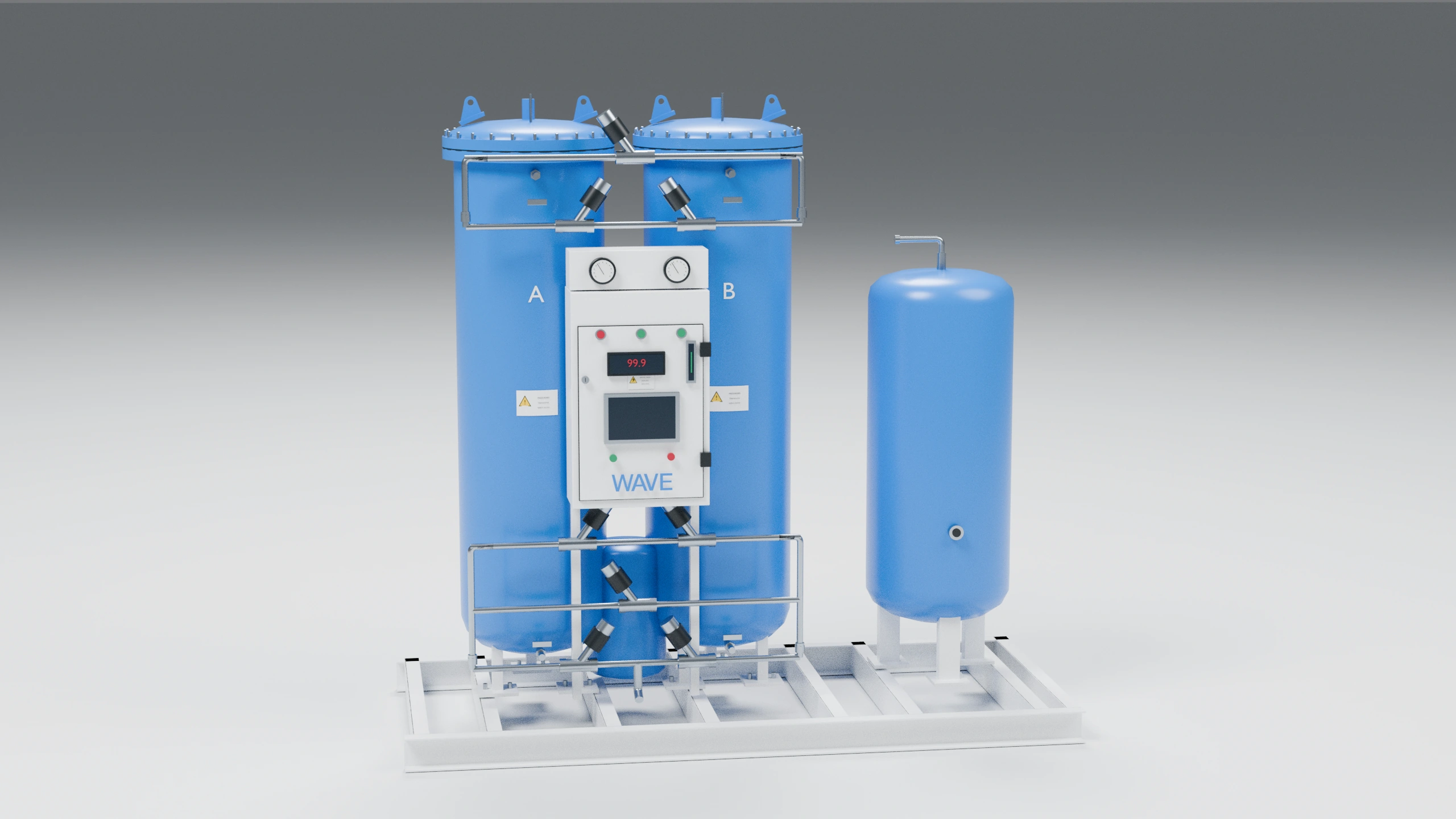

The PSA unit is specified for 40 Nm³/h at 99.9% nitrogen purity. Required purity, simultaneous gas demand and the operating profile determine the appropriate model.
COMPRESSED-AIR SUPPLY INCLUDED

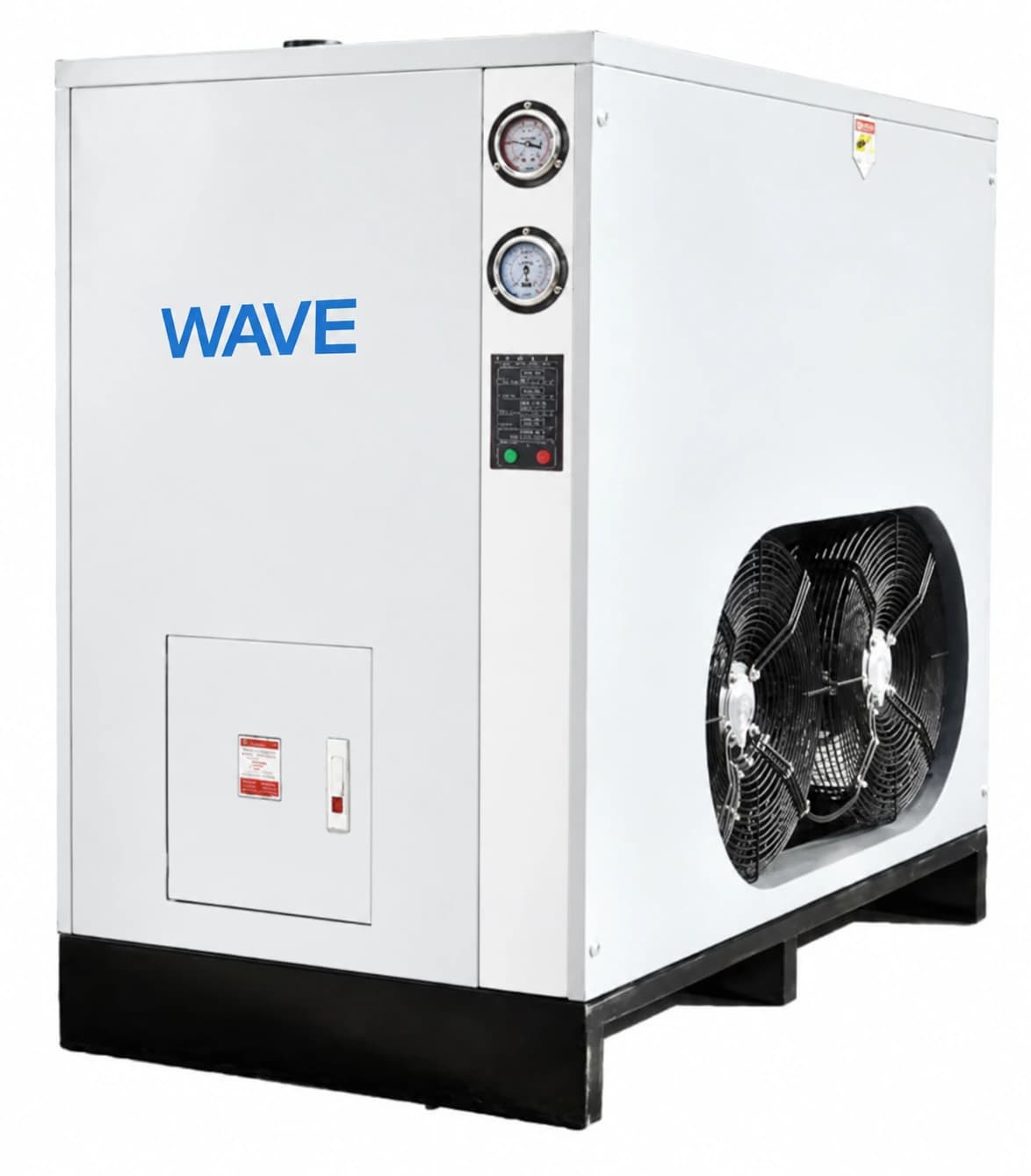

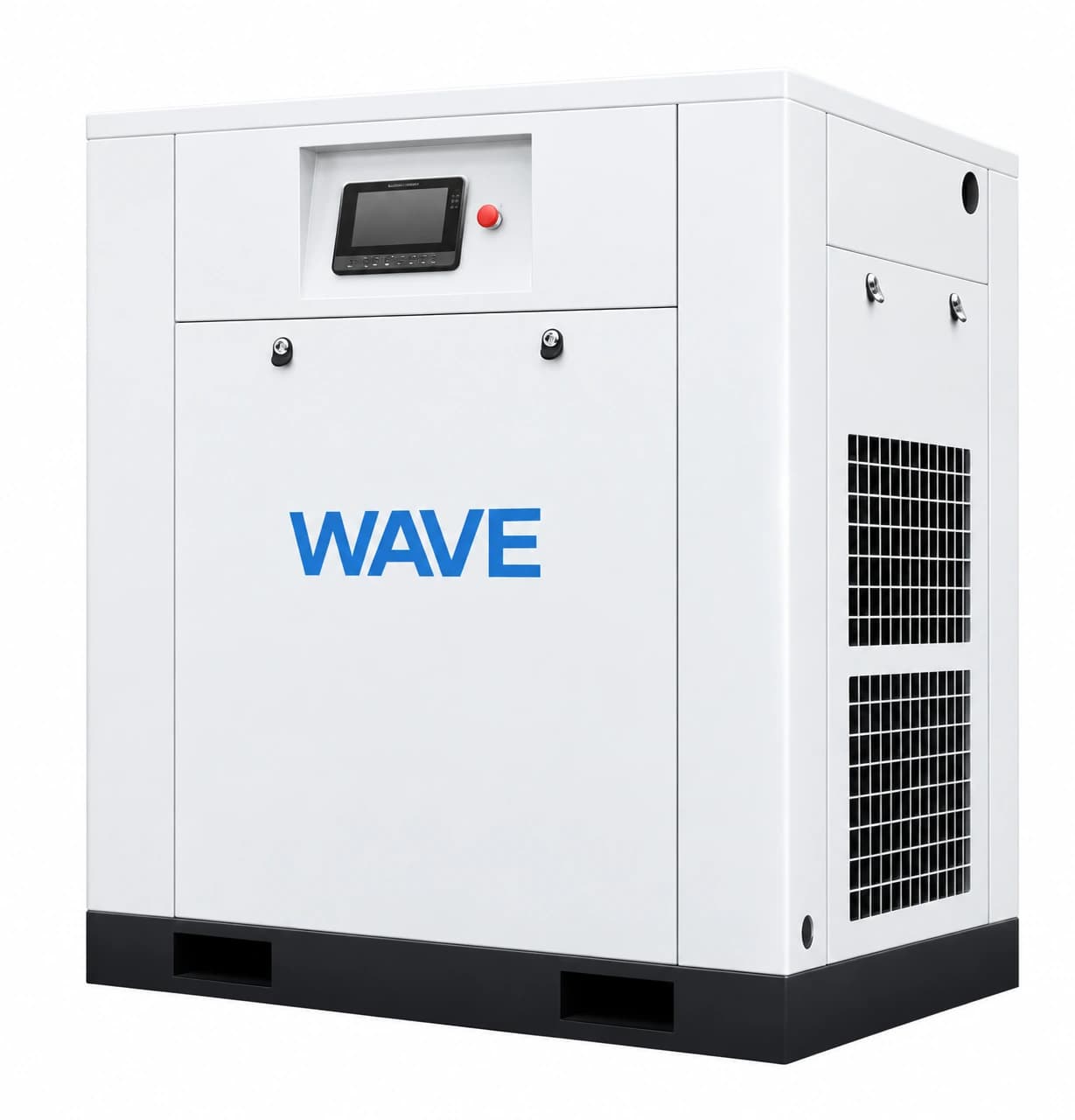

A 22 kW screw compressor, 1,000 L air receiver, separate refrigerated air dryer and four-stage filtration provide the compressed-air supply.
NITROGEN STORAGE TANK
A vertical 300 L nitrogen storage tank is part of the proposed system. Interconnecting piping and skids are included in the proposed scope.
SIZED FOR YOUR APPLICATION
Tell us your continuous and peak gas demand, required purity and pressure at the point of use. Nominal-flow reference conditions, connections, installation dimensions and the final system configuration are defined in your quotation.
SPECIFICATIONS
download N2 40 tech specs
DOWNLOAD TECH SPECSTechnical sizing: nominal flow according to the proposal. Electrical component ratings do not state total system energy consumption.
Request a quote
Describe your application, continuous and peak nitrogen demand, purity, required pressure, operating hours and installation location. WAVE will match the system and scope of supply to these requirements.
