Used Vacuum Pumps›Leybold›Sogevac SV
Leybold · Sogevac SV
Leybold Sogevac SV40B — rotary vane, 40 m³/h
Original title: Leybold Sogevac SV40B 960314 Vacuum Pump with LS Leroy Somer Motor
Market median (sold): €1.501 from 15 sales in this family
📍 USA
Suitability for 1 × FD440
Suitable after function testItem type
Complete pump
Technical
Requirements met
Condition
Not evidenced
Data
Type plate + model
🟢 Good fit
Excellent match for FD440; well-priced, typical specs, externally sound.

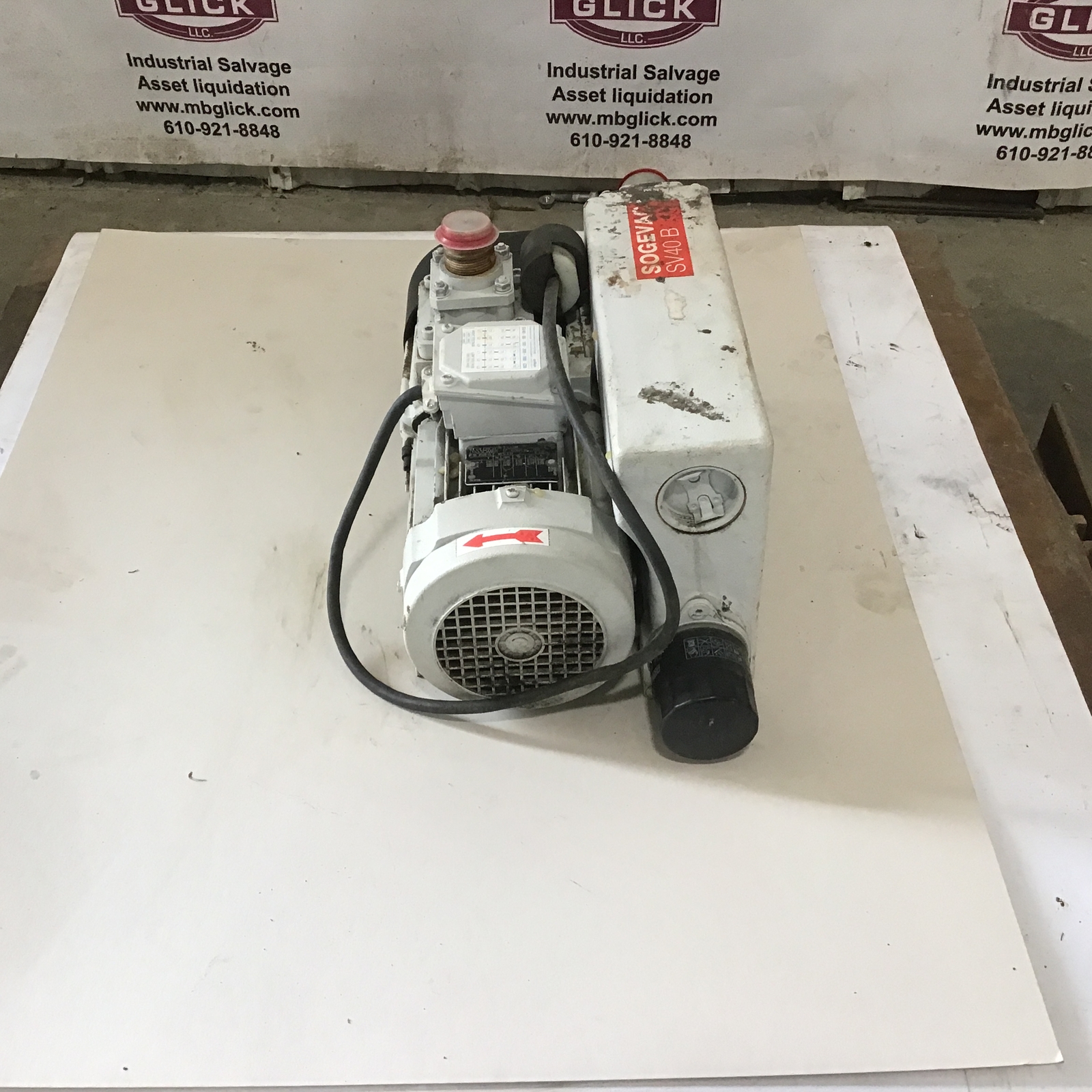

Condition from photo
Exterior clean, minor dust/dirt on housing and motor. Oil level visible in sight glass. No visible leaks or damage. Mounted on frame with motor.
Likely refurb / add-ons
- Oil change and filter service (~€80–120)
- Gas-ballast service inspection (~€60)
- Soft-starter for motor (~€280, optional)
WAVE AI estimate from photo + specs only — not a substitute for our physical pre-purchase check.
Specifications
- Type
- Oil-sealed rotary vane
- Pumping speed
- ~40 m³/h
- Water-vapour tolerance
- ~140 g/h
- Ultimate vacuum
- ≤ 0.1 mbar
- Year
- 2010 (per nameplate)
- Source
- eBay
- Listing #
- eBay #146637343414
- Last verified
- Aug 5, 2026
Fits WAVE machines: FD440
Source: official manufacturer · product page: product family · document: product family · EN · link checked Aug 5, 2026
Price history— Leybold Sogevac SV
Exact model: SV40
Median €1.749 · 357 cleaned observations · €302–€2.703
Recent sales (Leybold Sogevac SV)
- €1.855May 22, 2026Leybold SV120 BIFC SOGEVAC Single-Stage Oil-Sealed Rotary Vane Pump 960563V3002
- €697May 20, 2026Leybold SOGEVAC SV 40-65 BIFC Rotary Vane Vacuum Pump
- €1.674May 13, 2026Leybold SV65BIFC 960465V013002 Sogevac Pump SV 40/65 BIFC (lot of 3) *working
- €1.897May 5, 2026Leybold Sogevac SV200 Rotary Vane Vacuum Pump - Tested - Functional
- €1.845Apr 28, 2026Leybold Vacuum Pump Sogevac SV 40/65 BIFC / 1.5 kW
- €1.501Apr 27, 2026LEYBOLD SOGEVAC SV04B 960322V2013 ROTARY VANE VACUUM PUMP #NEW
- €3.962Apr 23, 2026Leybold Sogevac SV65B 960 412 Rotary Vane Vacuum Pump, 41.8CFM, 230/460VAC 3-Ph
- €970Apr 22, 2026Oerlikon Leybold SOGEVAC SV40B SV40B 960305V2040 Vacuum Pump Vacuum Pump -used-
- €698Mar 19, 2026Sogevac Leybold SV120BIFC 960563V3001 Vacuum Pump SV 120 BIFC Working
- €977Mar 3, 2026Amada laser Dry Vacuum Pump FD24 28000-18111 Kashiyama Replaces Leybold SV25
- €756Feb 15, 2026Leybold Sogevac SV40BIFC 960359V Rotary Vane Vacuum Pump compare WITH CABLE
- €698Feb 8, 2026Leybold Sogevac SV40BIFC 960359V Rotary Vane Vacuum Pump compare 960331V3005
Source: eBay sold listings (Apify aggregation). Year inferred from listing title when present.
Type plate (AI reading)
- Exact model
- SV40B 960314
- Serial
- 31000165477
- Year (plate)
- 2010
- Manufacturer
- Cérikon Leybold Vacuum France
- Address
- 640 Rue A. Berges, ZI Marcerolles, F-26501 Bourg-lès-Valence
- Model
- SV40B 960314
- Serial Number
- 31000165477
- Sogevac Brand
- Made in France
- Year
- 2010
- Weight
- 45 kg
- Oil Type
- Mineral Oil ISO VG77
- Oil Sight Glass
- MAX/MIN marked
- Exhaust Port
- Refoulement/Auspuff marked
- Lifting Lug
- Anneau de levage/Transportlasche
- Inlet Port
- Aspiration/Ansaugöffnung marked
- Oil Filling
- Remplissage/Oelfuellung marked
- Oil Drain
- Vidange/Oelablass marked
- Approvals
- CE
- Safety Warning
- Mandatory to read operating instructions
Auto-extracted from one of the listing photos. Verify on the real unit before purchase.
What to look for on this family
Single-stage oil-sealed with gas-ballast. Cheap entry into the Leybold ecosystem. Slightly higher ultimate vacuum than two-stage, so drying tails are a bit longer.
Traceable assessment
How each pump is assessed
AI helps read images and listing text. The final suitability result is calculated by a fixed engineering rule using evidenced values.
Method version: 5 August 2026
- 1
Identify the item
The title and photos are checked first to confirm that the listing is a complete vacuum pump — not an accessory, spare part or pump head only.
- 2
Establish evidence
The type plate and listing provide specific facts. Manufacturer values are used only for a confirmed model; family-level values stay clearly labelled.
- 3
Compare engineering data
Pumping speed, water-vapour capacity and ultimate pressure are compared with the selected WAVE machine and the chosen safety margins.
- 4
Assess condition separately
A photo or a seller saying “runs” does not replace a vacuum test. Unknown data remain unknown and never become an automatic green recommendation.
