Used Vacuum Pumps›Leybold›Sogevac SV
Leybold · Sogevac SV
Leybold Sogevac SV100B — rotary vane, 100 m³/h
Original title: Leybold SV100B Vakuumpumpe SOGEVAC
Market median (sold): €1.008 from 44 sales in this family
📍 Greece
Suitability for 1 × FD440
Suitable after function testItem type
Complete pump
Technical
Requirements met
Condition
Not evidenced
Data
Type plate + model
🟢 Good fit
Excellent match for FD470; proven family, good pumping speed and ultimate vacuum.
Condition from photo

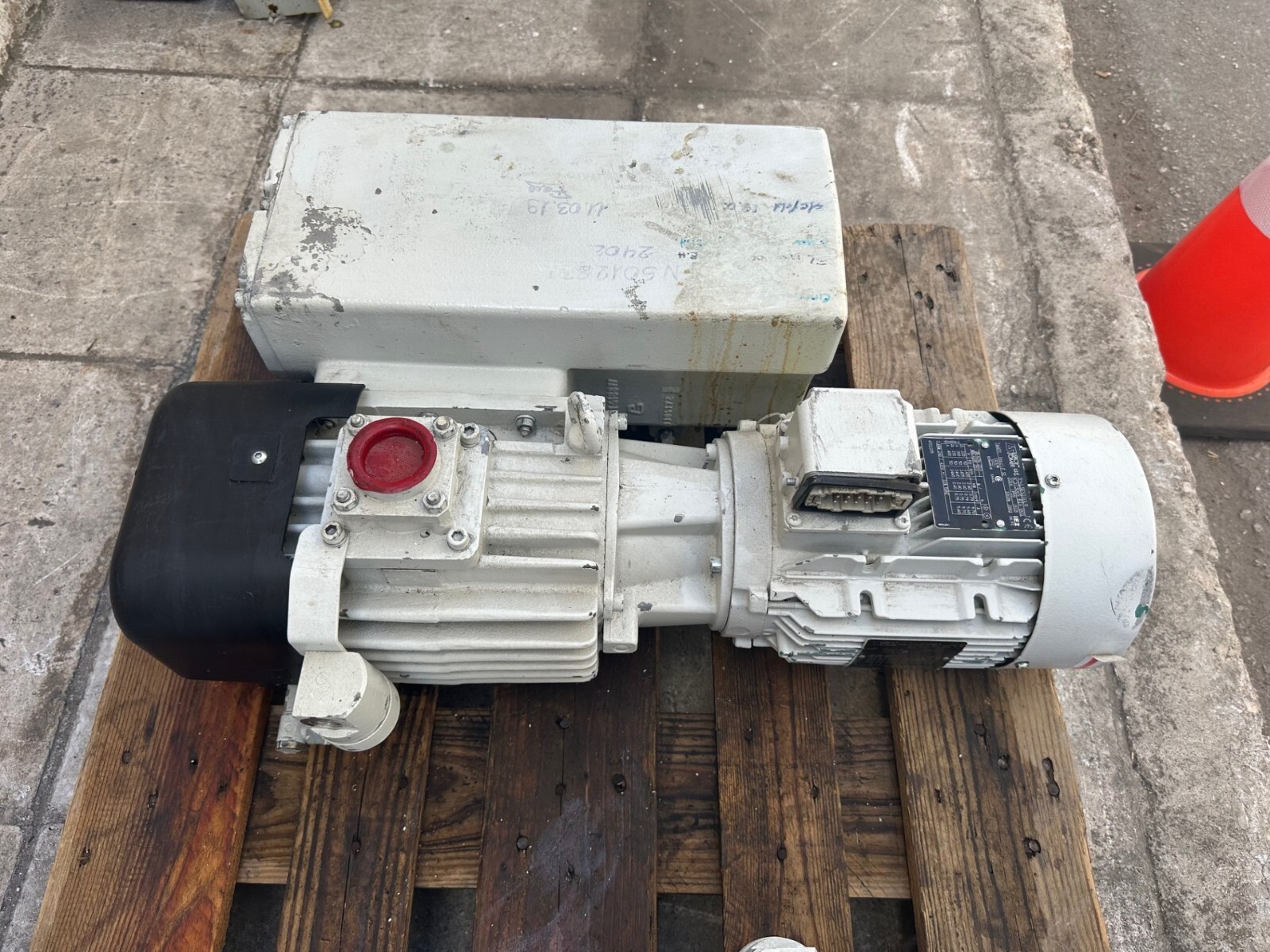

Externally clean, mounted on wooden pallet with control box and exhaust filter. No visible oil leaks or damage.
Likely refurb / add-ons
- Oil change and filter service (~€110)
- Gas-ballast inspection (~€60)
- Soft-starter module (~€280)
WAVE AI estimate from photo + specs only — not a substitute for our physical pre-purchase check.
Specifications
- Type
- Oil-sealed rotary vane
- Pumping speed
- ~100 m³/h
- Water-vapour tolerance
- ~350 g/h
- Ultimate vacuum
- ≤ 0.1 mbar
- Year
- 2015 (per nameplate)
- Source
- eBay
- Listing #
- eBay #286063730062
- Last verified
- Aug 7, 2026
Fits WAVE machines: FD470
Source: official manufacturer · product page: product family · document: product family · EN · link checked Aug 5, 2026
Price history— Leybold Sogevac SV
Exact model: SV100
Median €3.711 · 13 cleaned observations · €1.717–€4.186
Recent sales (Leybold Sogevac SV)
- €2.678Aug 6, 2026Oerlikon Leybold Sogevac SV40 BI Rotary Vane Vacuum Pump
- €930Aug 6, 2026LEYBOLD LEROY SOMER SOGEVAC SV65 BI FC LABORATORY PUMP WORKING
- €553Aug 6, 2026Leybold SOGEVAC SV65 BIFC Rotary Vane Vacuum Pump
- €7.435Aug 6, 2026Leybold SOGEVAC SV300B 960712V3002 5.5kW Oil Sealed Rotary Vane Vacuum Pump
- €1.674Aug 6, 2026Leybold SV65BIFC 960465V013002 Sogevac Pump SV 40/65 BIFC (lot of 3) *working
- €511Aug 6, 2026Leybold Sogevac SV40BI Single Phase Rotary Vane Vacuum Pump 230VAC w Gas Ballast
- €1.050Aug 6, 2026Leybold Sogevac SV 40-65 BIFC Vacuum Pump SV40BI 960363V01
- €888Aug 6, 2026Power And Remote Cable for Leybold SOGEVAC SV 40 / 65 BIFC Rotary Vacuum Pump
- €1.673Aug 6, 2026Yr 20202020 0.101 mBar OERLIKON LEYBOLD SOGEVAC ROTARY VANE VACUUM PUMP SV 28 BI SV28BI
- €930Aug 6, 2026Quincy QVS-010, .65KW, 120V Vacuum Pump (Compare to Leybold Sogevac SV16B)
- €1.429Aug 6, 2026Leybold Sogevac SV16 10901 Vacuum Pump 0.55/0.75KW 1430/1750U/Min 220/460V
- €893Aug 6, 2026Leybold Sogevac SV16BI960281 Vacuum Pump + Hanning D8D4-8-112 0.65kW Used
Source: eBay sold listings (Apify aggregation). Year inferred from listing title when present.
Type plate (AI reading)
- Exact model
- Leybold Sogevac LS2
- Serial
- 527933
- Year (plate)
- 2015
- Model
- LS2
- Serial No.
- 527933
- Type
- Drehschieberpumpe
- Displacement
- 1000 m
- Weight
- 26 kg
- Efficiency
- 86.9%
- Temperature
- Ta 40°C
- Insulation class
- F S1
- Approval
- CE, CSA
- Voltage 220 V
- 1455 min⁻¹, 2.40 kW, 0.79 cos φ, 9.70 A
- Voltage 380 V
- 1455 min⁻¹, 2.40 kW, 0.79 cos φ, 5.60 A
- Voltage 230 V
- 1460 min⁻¹, 2.40 kW, 0.75 cos φ, 9.70 A
- Voltage 400 V
- 1460 min⁻¹, 2.40 kW, 0.75 cos φ, 5.60 A
- Power rating
- 4 kW 240/415 V ±10% 50 Hz
- Manufacturer
- Leroy Somer
- Year
- 2015
Auto-extracted from one of the listing photos. Verify on the real unit before purchase.
What to look for on this family
Single-stage oil-sealed with gas-ballast. Cheap entry into the Leybold ecosystem. Slightly higher ultimate vacuum than two-stage, so drying tails are a bit longer.
Traceable assessment
How each pump is assessed
AI helps read images and listing text. The final suitability result is calculated by a fixed engineering rule using evidenced values.
Method version: 5 August 2026
- 1
Identify the item
The title and photos are checked first to confirm that the listing is a complete vacuum pump — not an accessory, spare part or pump head only.
- 2
Establish evidence
The type plate and listing provide specific facts. Manufacturer values are used only for a confirmed model; family-level values stay clearly labelled.
- 3
Compare engineering data
Pumping speed, water-vapour capacity and ultimate pressure are compared with the selected WAVE machine and the chosen safety margins.
- 4
Assess condition separately
A photo or a seller saying “runs” does not replace a vacuum test. Unknown data remain unknown and never become an automatic green recommendation.
